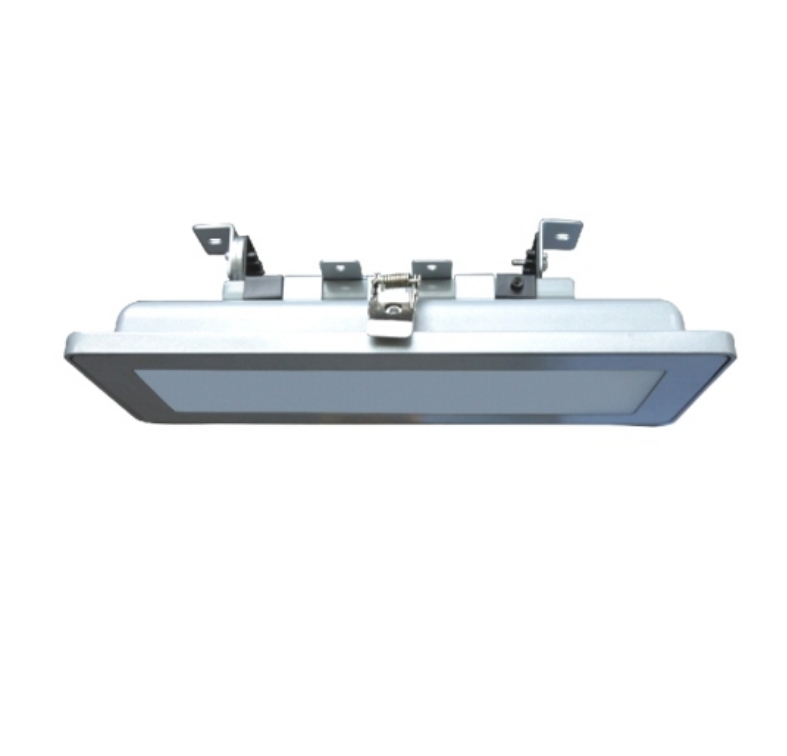

NFE9142​​ LED Low-Bay Emergency Light

A dual-power industrial emergency luminaire is designed for 2.5–6m ceiling spaces such as underground garages, production workshops, and fire escape routes. It delivers 36W main lighting (​​≥140 lm/W efficacy​​) in normal mode, automatically switching to emergency mode (​​90-minute runtime @30% brightness​​) within ​​0.2 seconds​​ of power failure. It is constructed with ​​die-cast aluminum + tempered glass​​, ​​IP65-rated protection​​, certified to ​​GB 17945-2010 fire safety standards​​, and operational from ​​-20°C to +50°C​​. Integrates daily illumination and emergency evacuation functions.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • NFE9142

1. Comfortable Anti-Glare Design

Its features light guide plate technology within transparent components to eliminate glare interference while maintaining direct illumination.

2. Energy Efficiency & High Performance

It is optimized engineering delivers customized pathway lighting solutions with superior advantages: directional light emission, low power consumption, stable driver performance, rapid response, high shock resistance, extended lifespan, and eco-friendly operation.

3. Easy Maintenance

Modular design enables tool-free disassembly for swift repairs and servicing.

4. Premium Protection

IP67-rated full-sealed construction effectively withstands heavy rain and harsh outdoor conditions.

5. Multi-Environment Adaptability

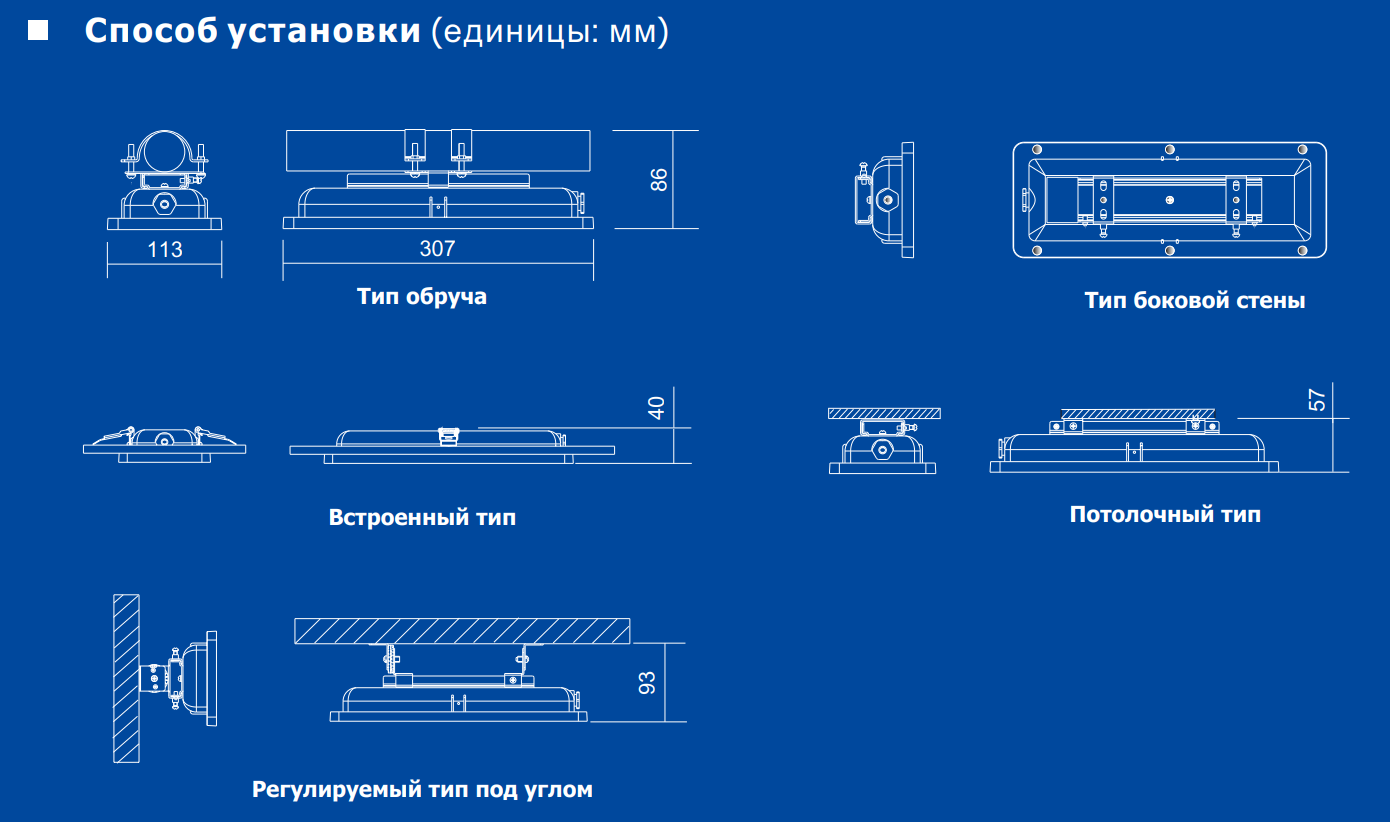

Five installation options: ceiling-mounted, wall-mounted, clamp-on bracket, angle-adjustable, and recessed. Compatible with 100-240V wide voltage and offers cool white/warm white color temperatures.

6. Safety Assurance

Anti-loosening screws + safety lanyard prevent accidental drops during maintenance, eliminating fall hazards in elevated workspaces.


1. Rated Voltage: 100–240V~ 50Hz/60Hz

2. Light Source:

Rated Power: 18W

Luminous Flux: 1,950 lm

Average Lifetime: 100,000 h

3. Color Temperature:

Neutral White: 3,700K–4,500K

Cool White: 5,500K–6,500K

4. Power Factor: 0.9

5. Operating Temperature: -55°C to +55°C

6. Dimensions (L×W×H): 307 mm × 113 mm × 40 mm

7. Weight: 1.3 kg

8. Protection Rating: IP67


1. Applications:

Ideal for supplementary lighting in:

Maintenance walkways of large-scale equipment

Outdoor corridors, pathways, and signage areas

Withstands harsh external environments.

2. Target Clients:

Grid substations, railway maintenance depots, and industrial repair stations involving production, inspection, and maintenance operations.


Frequent questions
  • 1. Will brightness drop sharply during power failure? How effective is the emergency lighting?​​
    Created with Sketch.
    形状 Created with Sketch.
    Seamless switching within 0.2 seconds after power failure. Emergency mode automatically shifts to ​3,000K warm white (Ra90 CRI)​, delivering ​≥30% of main brightness (~1,000 lm)​ to ensure clear visibility in smoke.
  • 2. Is the 90-minute runtime lab data? How long does it last in real use?
    Created with Sketch.
    形状 Created with Sketch.
    It is passed ​GB 17945 -40°C low-temperature discharge test. LiFePO₄ batteries provide 88 minutes at -20°C (>90min national standard requirement), extending to ​100 minutes at 25°C​​.
  • 3. Will high humidity corrode batteries? What’s the maintenance cycle?​​
    Created with Sketch.
    形状 Created with Sketch.
    IP67-sealed battery compartment​+ 316 stainless steel casing​resists 98% humidity environments. ​​Maintenance-free design​retains >80% capacity after 5 years (vs. 2-year replacement for lead-acid batteries).
