Intelligent Hybrid Solar Power Solution

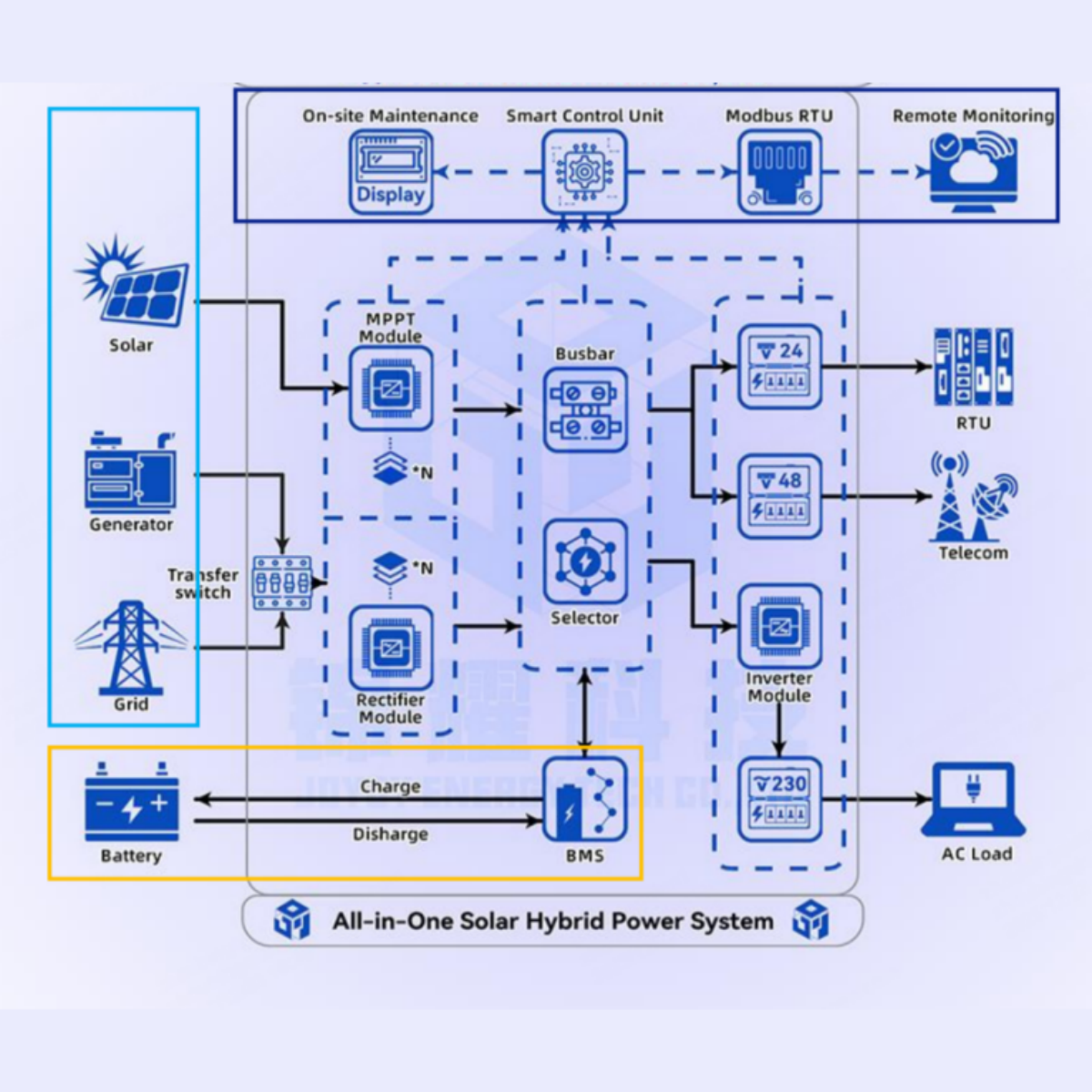

The Intelligent Hybrid Solar Power Solution is a mini-type, highly integrated off-grid power system that combines a control unit, distribution panel, and up to 12kW power rack, delivering smart, reliable, and eco-friendly power solutions. It features modular design supporting multiple input sources like solar, grid, or generator for efficient energy management and battery backup.It is suitable for widely used in oil and gas pipeline monitoring, telecommunications base stations, SCADA systems, surveillance cameras, and other industrial sectors, especially in remote areas or locations with poor grid coverage.

Features:
1. Modular Hot-Swappable Design:​ it enables quick installation and maintenance with hot-swappable components, minimizing downtime.
2. High Efficiency and Energy Saving:​ System conversion efficiency exceeds 96%, maximizing solar energy utilization and reducing operational costs.
3. Comprehensive Safety Protection:​ it includes multiple protections such as short-circuit, overload, and over-temperature to ensure safe and reliable operation.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • IntelligentHybridSolarPowerSolution

  1. Cost-Effective: Compared to conventional generators, the solar hybrid system significantly reduces fuel and maintenance costs, offering long-term economic benefits.

  2. Low Maintenance Requirements: No need for frequent refueling or professional maintenance, minimizing human intervention, ideal for unmanned sites.

  3. Flexible Customization: it can be tailored to specific power requirements and functions, adapting to various application environments.

  4. Eco-Friendly and Sustainable: it utilizes renewable energy sources, reducing carbon emissions and aligning with green energy trends.

  5. Easy Installation: it supports wall-mounted and hoop-mounted installation, simple setup that saves deployment time and costs.

  1. Dimension: 450mm(W) × 170mm(D) × 640mm(H)

  2. Weight: 30kg

  3. Cooling Method: Fan cooled

  4. Installation: Wall mounting or hoop mounting

  5. MTBF: 200,000 hours

  6. DC Input Voltage: 58-150V DC

  7. MPPT Voltage Range: 60-120V DC

  8. AC Input Voltage: 85-300V AC

  9. Input Frequency: 45-66Hz

  10. Power Factor: ≥0.99 (at 50% load)

  11. System Efficiency: ≥96%

  12. Output Voltage: -42 to 58V DC, rated -53.5V DC

  13. Output Power: Max 6kW

  14. Battery Support: Lead acid, lithium (LFP), or mixed use

  15. Communication Interfaces: RS232/RS485, Ethernet, Bluetooth (optional 3G/4G)

  16. Operating Temperature/Humidity: -20°C to +65°C, 5%-95% non-condensing

  17. Working Altitude: 0-4,000 meters

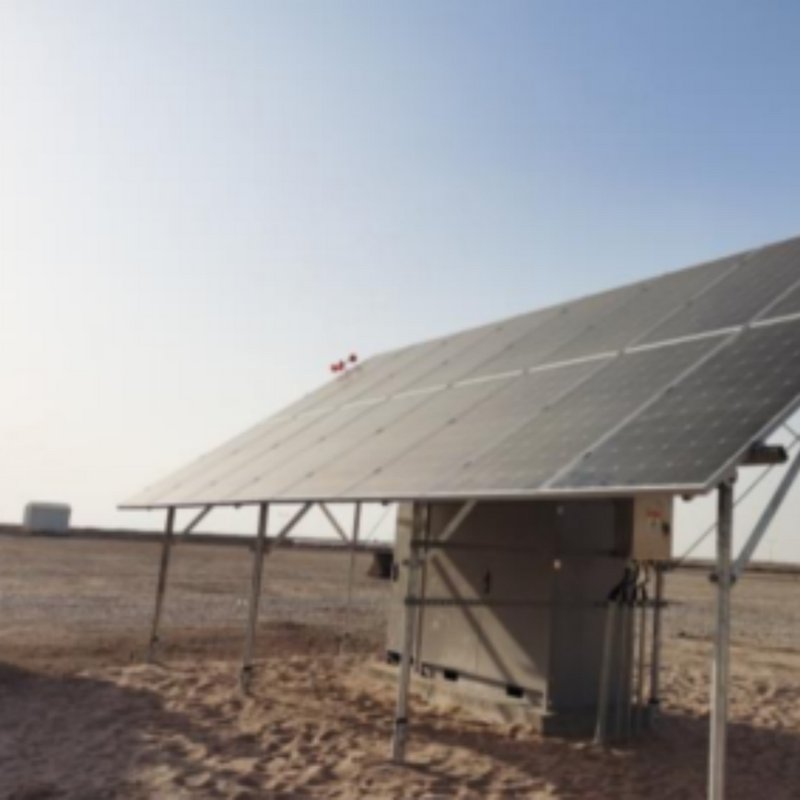

  1. Oil and Gas Pipeline Monitoring: For example, in the Central Asian Gas Pipeline project (Uzbekistan), it provides stable power for RTU and cathodic protection systems, ensuring pipeline safety.

  2. Telecommunications Base Stations: it powers BTS equipment in remote areas to support network coverage, such as SPM sites in Bangladesh.

  3. Industrial Surveillance Systems: Used for surveillance cameras and SCADA devices to enable remote data acquisition and control, e.g., powering MOVs in Abdaliya, Kuwait.

  4. Scientific and Military Camps: it supplies off-grid power for research stations or military bases, adaptable to harsh environments.

Frequent questions
  • 1. How is the system installed? Is it complicated?​
    加 Created with Sketch.
    形状 Created with Sketch.
    Installation is very simple, supporting wall-mounted or hoop-mounted methods. The modular design allows for quick plug-and-play component changes. Basic tools are sufficient, saving time and labor costs, ideal for rapid deployment.
  • 2. What is the battery lifespan and maintenance requirement?​
    加 Created with Sketch.
    形状 Created with Sketch.
    The battery has a long lifespan, with lithium-ion batteries offering over 5,000 cycles (at 80% DoD). The system requires almost no maintenance, no refueling, and the BMS intelligently manages charge/discharge, minimizing manual intervention.
  • 3. Can the system operate stably in extreme weather conditions?​
    加 Created with Sketch.
    形状 Created with Sketch.
    Yes, it is designed for wide temperature ranges (-20°C to +65°C) and high altitudes (up to 4,000 meters), with over-temperature protection. It has been successfully deployed in deserts and humid areas, demonstrating high reliability.
  • 4. Does it support remote monitoring and management?​
    加 Created with Sketch.
    形状 Created with Sketch.
    Yes, through RS232/RS485, Ethernet, or optional 3G/4G communication, it can integrate with an EMS module for remote real-time monitoring, data analysis, and fault diagnosis, improving management efficiency.
  • 5. Can the power capacity be expanded?​
    加 Created with Sketch.
    形状 Created with Sketch.
    Yes, the modular design allows flexible power expansion, with maximum output power up to 12kW (200A model), and supports battery parallel connection to meet various load requirements.
Previous:
Next:
ASU TP Power Gernerator
Request to goods
Verify Code
Corresponding Product

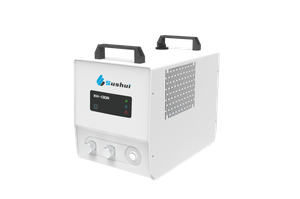

Stationary Methanol Fuel Cell Generator
