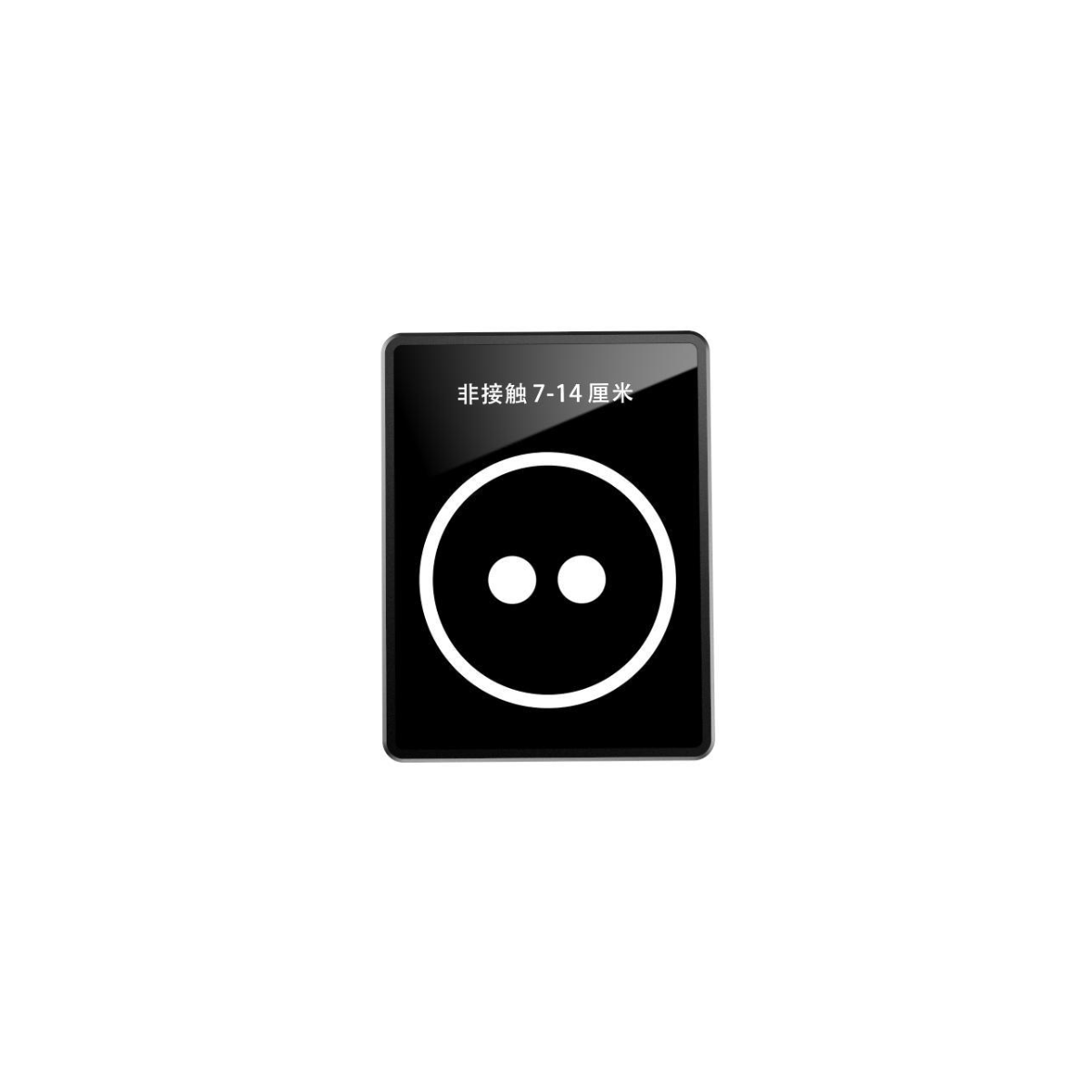

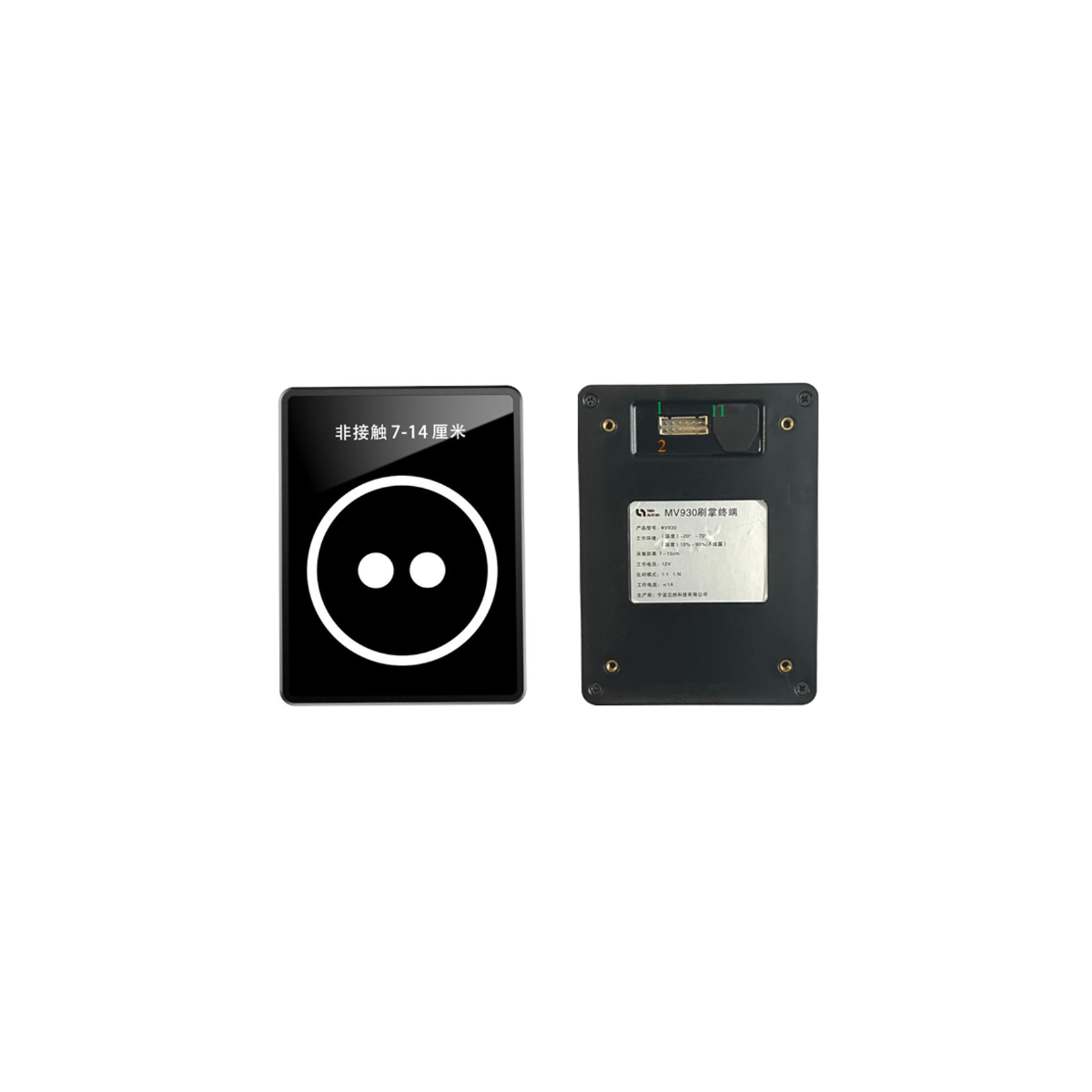

MV930 Multi-modal Palm-scanning Terminal | 2.4TOPS Computing Power, Wide-Temp 7cm-14cm Contactless Recognition

The MV930 Multi-modal Palm Recognition Terminal features an all-aluminum alloy body and is powered by a 1.2GHz dual-core processor with an independent NPU delivering 2.4 TOPS of computing performance. It is equipped with a wide dynamic range dual camera (distortion < 3%) and supports Android, Windows, Linux, and HarmonyOS systems. With a recognition time of less than 500 ms, FAR ≤ 0.0001%, and a recognition distance of 7–14 cm, it is ideal for industrial and commercial applications such as access control, turnstiles, and cardless payment systems.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • MV930

1. Powerful Computing & Accurate Imaging: Equipped with a 1.2GHz dual-core processor and 2.4TOPS independent NPU to enable efficient multi-modal recognition; wide-dynamic dual camera with distortion < 3% reduces interference from complex lighting, ensuring high-precision recognition with FAR ≤ 0.0001% and FRR ≤ 0.01%.


2.  Multi-OS Compatibility & Rich Interfaces: Supports Android, Windows, Linux, and HarmonyOS, adapting to integration needs of various devices; features mini USB, USBA port, 100M Ethernet, RS-485, and Wiegand interfaces to meet the connection requirements for access control, turnstiles, and other scenarios.


3.  Wide-Temperature Adaptability: Certain versions operate at -20℃~70℃ and 20%~80% non-condensing humidity, ensuring stable performance in high-temperature workshops and outdoor low-temperature environments, avoiding recognition failures due to environmental factors.


4.  Flexible Storage & Fast Response: Local storage up to 2GB (DDR4) + 8GB (eMMC), supporting 5,000 local entries and unlimited cloud storage; power-on time < 10s, recognition < 500ms, suitable for high-frequency authentication during peak periods.


5. Contactless Secure Recognition: 7–14 cm contactless distance prevents contact infections; palm vein liveness features defend against 2D image and 3D model attacks, significantly enhancing identity authentication security.


  1. Processor: Dual-core processor, 1.2GHz main frequency

  2. NPU Computing Power: Independent NPU, up to 2.4 TOPS

  3. Camera: Wide-dynamic dual-camera, distortion < 3%

  4. Supported OS: Android, Windows, Linux, HarmonyOS

  5. Storage Capacity: Version 1: 256MB (DDR3) + 8GB (eMMC); Version 2: 2GB (DDR4) + 8GB (eMMC)

  6. Recognition Perormance: Recognition time < 500ms; FAR ≤ 0.0001%; FRR ≤ 0.01%

  7. Recognition Distance: 7–14 cm (contactless)

  8. Comparison Mode: 1:1, 1:N multi-modal authentication

  9. Database Capacity: Local storage: 5,000 entries; Cloud storage: unlimited


Operating Environment:

  1. Version 1: Temp -15℃~55℃, Humidity 20%~80% (non-condensing)

  2. Version 2: Temp -20℃~70℃, Humidity 20%~80% (non-condensing)

  3. Operating Voltage: DC 12V

  4. Operating Current: <2A

  5. Interface Type: mini USB, USBA female port, relay, 100M Ethernet, RS-485, Wiegand

  6. Dimensions: Version 1: 100×77×31 mm; Version 2: 320×90 mm

  7. Power-On Time: Version 1: <10s; Version 2: <30s

  8. Body Material: All-aluminum alloy

  1. Industrial Turnstile Access Control: Integrated into factory and industrial park turnstiles, 7–14 cm contactless recognition with <500 ms response adapts to peak commuting hours; the -20℃~70℃ version handles outdoor and high-temperature workshop environments, preventing unauthorized access to production areas.

  2. Commercial Cardless Payment: Deployed at mall cash registers, palm vein liveness detection prevents forgery; cloud storage supports multi-store data synchronization for chain brands, enhancing payment security and convenience.

  3. High-End Access Control Authentication: Installed in corporate headquarters and data centers, the all-aluminum alloy body is wear-resistant; high-precision recognition with FAR ≤ 0.0001% ensures the security of critical assets.

  4. Transport Hub Quick Verification: Integrated into subway verification terminals, wide-dynamic cameras adapt to varying lighting conditions; recognition time <500 ms reduces passenger queues and connects to transportation platforms for traceability.


Frequent Questions
  • 1. Which systems does the terminal support for integration?
    Created with Sketch.
    形状 Created with Sketch.
    Supports Android, Windows, Linux, HarmonyOS, adapting to integration needs of most devices.
  • 2. Can it work stably in low-temperature environments?
    Created with Sketch.
    形状 Created with Sketch.
    Some versions support -20℃~70℃, enabling stable recognition in low-temperature industrial scenarios.
  • 3. How many data entries can be stored locally?
    Created with Sketch.
    形状 Created with Sketch.
    5,000 local entries, unlimited cloud storage, meeting the needs of different scales.
  • 4. Is contact with the device required for recognition?
    Created with Sketch.
    形状 Created with Sketch.
    Contactless recognition, 7–14 cm distance, avoiding contact infection.
