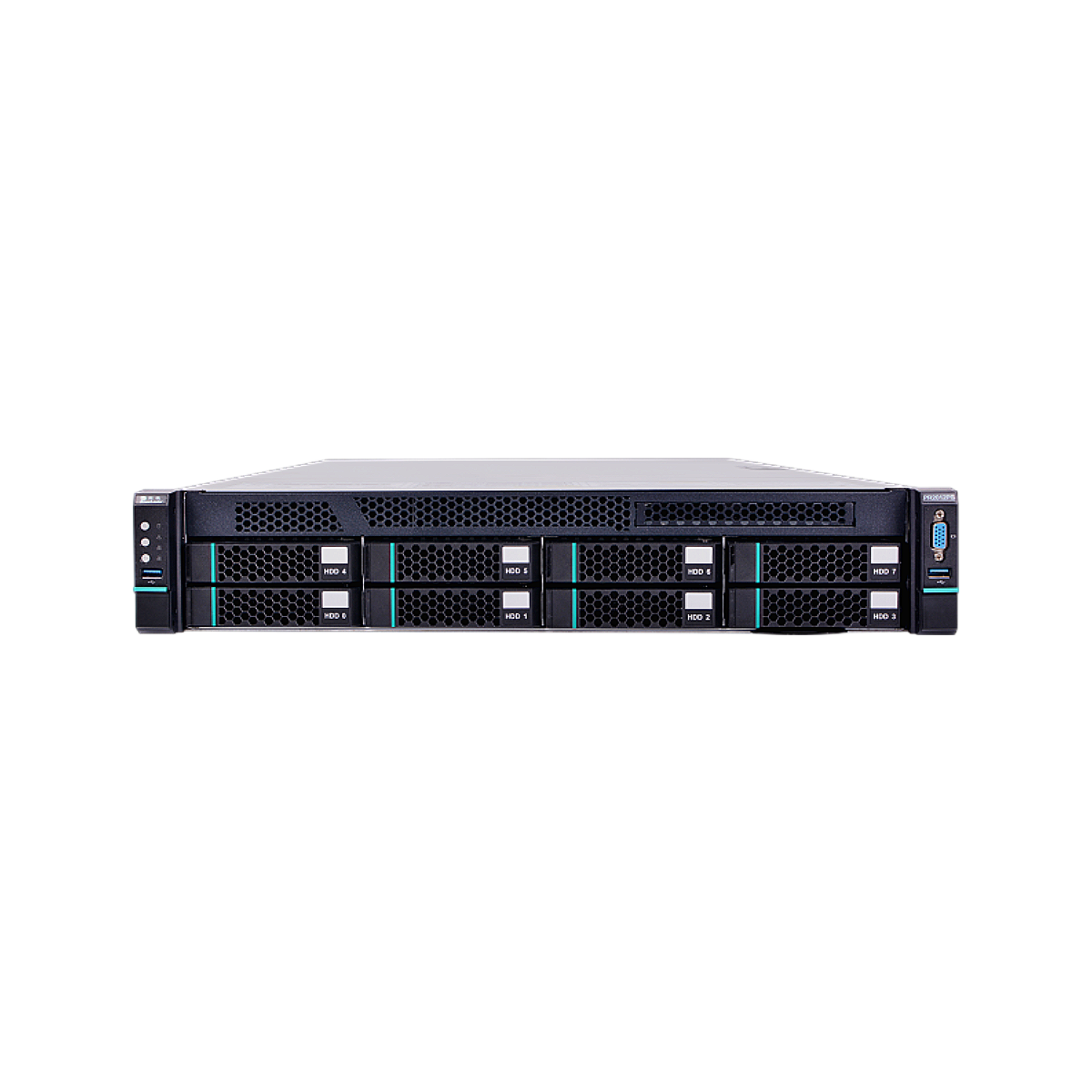

2U Dual-Core Cloud Server High-Performance Virtualization Industrial Cloud Computing Big Data Server

This 2U dual-core server is designed for industrial critical tasks, suitable for cloud computing, virtualization, big data analysis and other industrial scenarios, providing strong performance and high reliability support.

Core Features:
1. Supports 2 28-core processors, performance 140% higher than the previous generation, easily handling heavy computing pressure.
2. Maximum 2TB memory + multi-disk hot-swappable design, flexible storage expansion to meet industrial data storage needs.
3. Supports redundant power supply and RAID technology, ensuring data security and operational stability.
4. Low-power design with optimized energy efficiency management, reducing operating costs in industrial scenarios.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • PR2710P

1. Industrial Cloud Computing Platform: Provides secure and reliable virtual resources, eliminates I/O bottlenecks, supports the construction of industrial private clouds and hybrid clouds, meeting the needs of large-scale equipment connection and data processing.

2. Industrial Virtualization Applications: Optimizes rack density and performance, enabling rapid deployment of industrial server clusters, adapting to smart factory equipment management and production system virtualization scenarios.

3. Industrial Big Data Analysis: With strong computing power and large-capacity storage, it efficiently processes industrial production data and sensor data, providing data support for production optimization.

4. Industrial Network Services: Stably runs email, information processing and Web search services, adapting to industrial park network hubs, data transmission nodes and other scenarios.

1. Super Strong Computing Performance: Equipped with 2nd generation scalable series processors, supporting up to 56 cores per unit. Combined with Intel AVX-512 instruction set and QAT acceleration technology, it greatly improves the efficiency of industrial complex computing and speeds up big data analysis tasks.

2. Flexible Storage Expansion: Default supports 8 hot-swappable hard disks, optional up to 26 2.5-inch hard disks, compatible with SATA/SAS/SSD/U.2 interfaces. Storage capacity and speed can be matched on demand, adapting to massive industrial data storage scenarios.


3. High-Reliability Operation Guarantee: Supports 1+1 redundant power supply and PMBUS monitoring, combined with intelligent heat dissipation and EMI protection design, ensuring stable operation in complex industrial environments. RAID5 and above data protection prevents industrial data loss.


4. Rich Expansion Interfaces: Default 3 PCI-E3.0 slots, expandable up to 6, with dual Gigabit Ethernet ports (optional 10G module), meeting the needs of multi-peripheral connection and high-speed network transmission for industrial equipment.


5. Efficient Energy Management: Supports frequency reduction and intelligent fan speed control, operating noise below 50dBA. More energy-saving for long-term operation in industrial scenarios, while reducing environmental interference.

  1. Technical Parameters: 2U Rack Server

  2. Number of Processors: 1/2

  3. Processor Model: 2nd Generation Scalable Series Processor

  4. Memory Configuration: 16 DIMM slots, supports 2933MHz DDR4, max 2TB, optional AEP memory

  5. Hard Disk Support: Front: 8/12/24 units of 2.5/3.5-inch SATA/SAS/SSD; Internal/Rear: Each supports 2 units of 2.5-inch SATA/SAS/SSD/U.2 SSD

  6. RAID Support: Supports RAID0/1/10/5, optional RAID50/6/60, cache 0/1GB/2GB (optional power failure protection)

  7. Network Interface: Integrated 2 Gigabit Ethernet ports, optional dual Gigabit/10G OCP module

  8. PCI-E Expansion: Up to 6 PCI-E3.0 slots + 1 OCP dedicated slot

  9. Power Supply Configuration: 550W/800W/1200W Platinum power supply, supports 1+1 redundant mode

  10. Management Function: Supports IPMI2.0 and iKVM remote management, 1 Gigabit management port

  11. Operating Temperature: 10℃-35℃

  12. Physical Dimensions: 87mm×438mm×735mm, approx. 19KG (minimum configuration)

Frequent Questions
  • 1. Is the server compatible with complex industrial power supply environments?
    加 Created with Sketch.
    形状 Created with Sketch.
    Supports 220V AC/240V DC power supply, optional redundant power supply, more stable power supply in industrial scenarios.
  • 2. Can it meet the real-time industrial data transmission needs?
    加 Created with Sketch.
    形状 Created with Sketch.
    Supports 10G port expansion and load balancing, low network latency, adapting to real-time data transmission.
  • 3. How to perform remote maintenance in industrial scenarios?
    加 Created with Sketch.
    形状 Created with Sketch.
    Supports IPMI2.0 and iKVM remote management, no on-site operation required, more efficient maintenance.
  • 4. Can storage adapt to massive industrial data?
    加 Created with Sketch.
    形状 Created with Sketch.
    Max supports 26 hard disks, compatible with multiple interfaces, no pressure for massive industrial data storage.
Previous:
Next:
ASU TP Industrial software Control System Communication and Cyber Security
Request to goods
Verify Code
Corresponding Product

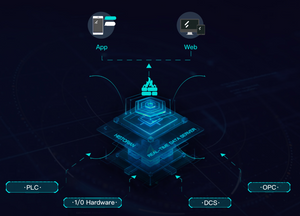

Complex software for SCADA SUPCON monitoring
