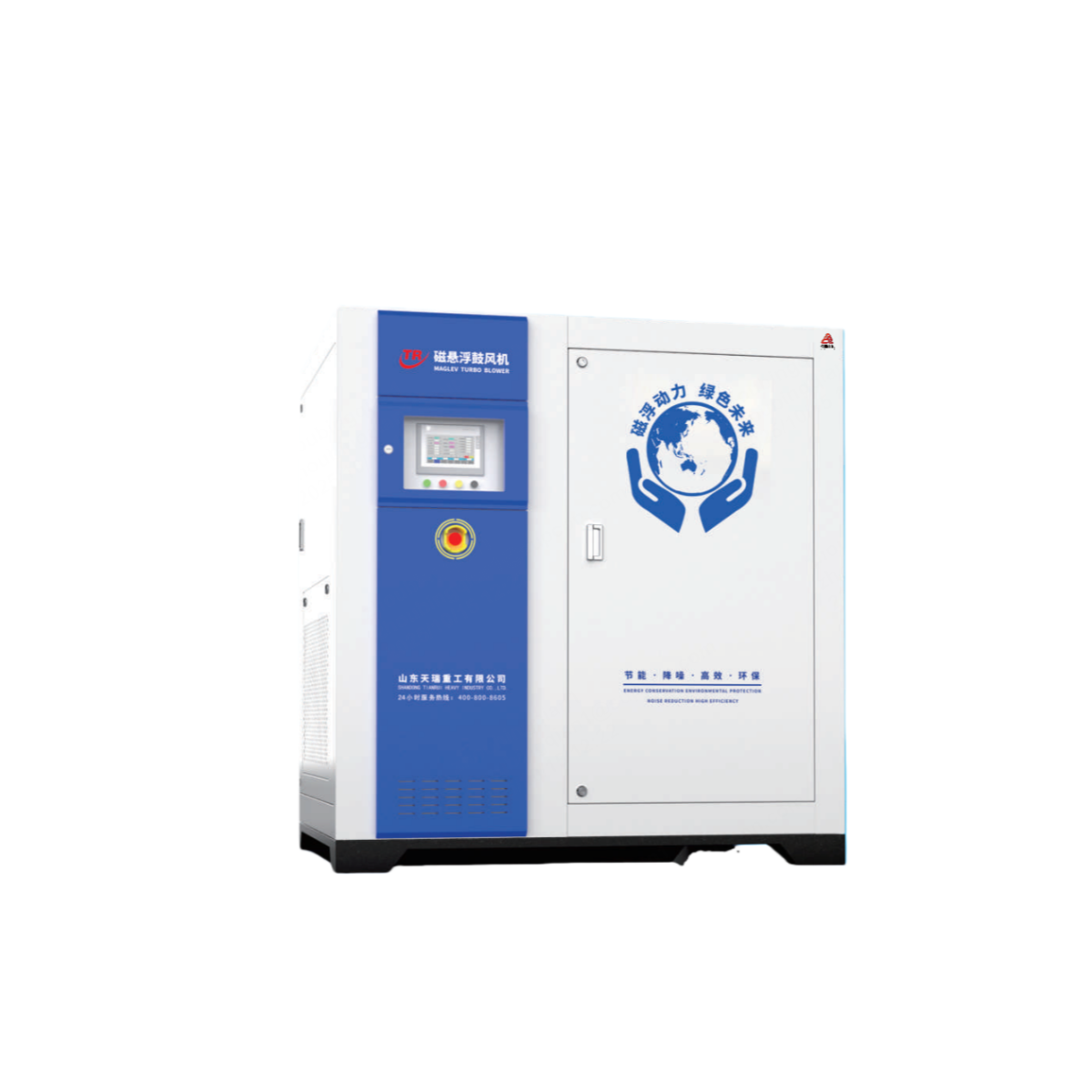

MAGLEV TURBO BLOWER, Energy-saving and environmentally friendly equipment, intelligentized, maintenance-free

Shandong Tianrui Heavy Industry's Maglev Turbo Blower is a self-developed energy-saving and environmentally friendly equipment. Compared to traditional blowers, it offers significant advantages: average power saving of 30%, noise reduction to 80 decibels, no lubrication oil, and (maintenance-free). The product adopts core technologies such as active magnetic bearings and is widely applicable to high-energy-consumption industries like cement, papermaking, chemicals, thermal power, and wastewater treatment, supporting the "dual carbon" goals.

The main technical advantages of the Maglev Turbo Blower are based on five core systems, including:
​​Technological Advantage:​​ Uses active magnetic bearing systems for contactless and wear-free operation, requiring no lubrication or maintenance; equipped with high-efficiency frequency converters and high-speed permanent magnet synchronous motors, supporting remote monitoring and smart control.
​​Energy-saving Advantage:​​ Efficiency improved by over 30% compared to Roots blowers. For example, a 100kW unit can save over 300,000 kWh of electricity annually, reducing costs by over 200,000 RMB.
​​Environmental Advantage:​​ Oil-free design ensures clean air, with noise as low as 80 decibels; each 150kW unit can reduce CO2 emissions by approximately 257 tons per year.
Additionally, it offers low maintenance costs, with a design lifespan of over 20 years and only requiring regular filter replacement.

The working principle of the Maglev Turbo Blower relies on the active magnetic bearing system, which is its core. The specific process is as follows:
​​Levitating Control:​​ The motor rotor is levitated via radial and axial magnetic bearings, with position sensors detecting the rotor's position in real-time and sending signals to the main controller.
​​Dynamic Adjustment:​​ If the rotor deviates, the main controller adjusts the electromagnetic force of the bearings to return the rotor to the correct position, achieving contactless and wear-free operation.
​​Integrated Technologies:​​ Combined with fluid dynamic impellers, high-efficiency frequency converters, and high-speed permanent magnet synchronous motors, it ensures efficient operation. The remote monitoring cloud platform provides data support for intelligent management.
This design eliminates mechanical friction, enhancing reliability and lifespan.
