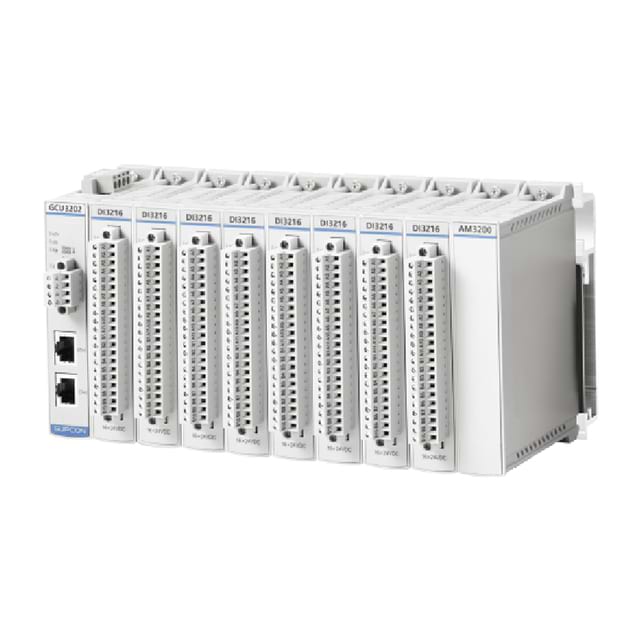

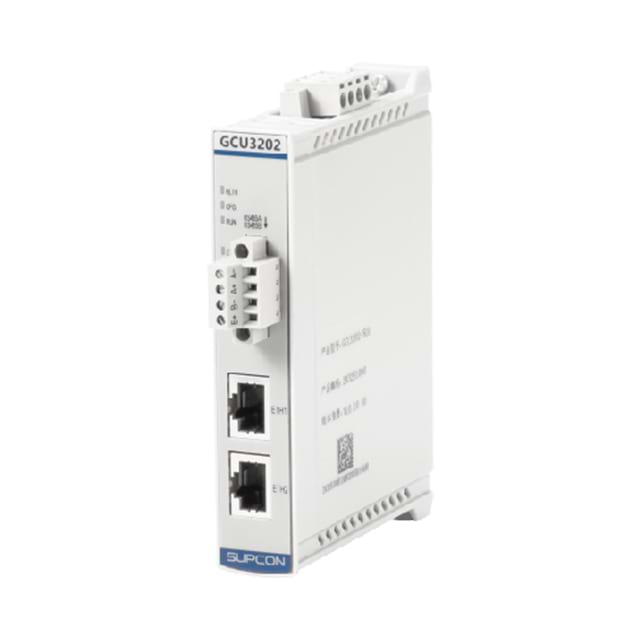

G3SMART
Areas of application:
✓ Petrochemical industry ✓ Chemical industry (including subtle synthesis)
✓ Carbonia production
✓ oil and gas production
✓ public utilities
✓ Metallurgy
✓ Pharmaceutical industry
✓ Equipment and complete solutions
Technological advantages:
• Integration of modern field tires and network technologies
• Support for key industrial protocols:
• Modbus RTU
• Modbus tcp
• Profinet
• the ability to integrate with other control systems and intelligent devices
Advantages for users:
✔ High cost/efficiency
✔ Simplicity of implementation and operation
✔ Configuration flexibility
✔ Reliability of industrial performance
PLC G3SMART offers effective and simple solutions for the automation of industrial processes of various scale!
The advantage of the product
1. Complex and various control functions:
It uses a multi -storey operating system that supports various modes of work: cyclic tasks, circular tasks, events in events, starting tasks and others.
2. Convenient configuration environment:
Supports IEC 61131-3 programming languages (FBD, LD, ST, SFC), as well as a simplified communication configuration, which increases the effectiveness of configuration.
3. Powerful network capabilities:
Applies a highly rental Ethernet technology that provides both reliability and the real data transfer time.

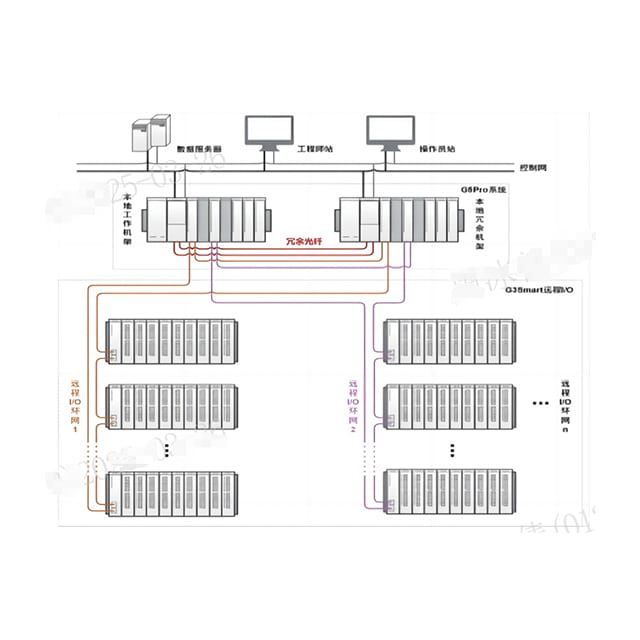

4. Flexible network topology:
Supports various topologies: star, garland chain, ring network and others.
5. Open data interfaces:
Compatibility with MODBUS RTU/TCP, Profinet and other industrial communication standards.

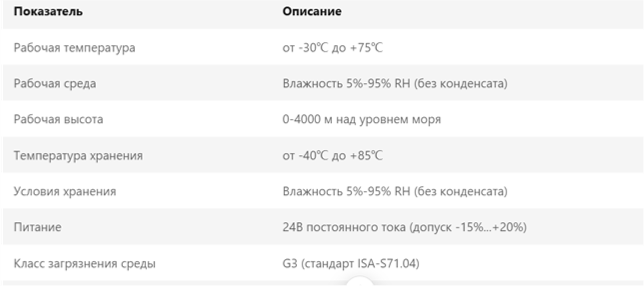

6. High adaptability to environmental conditions:
• Industrial components operating in the entire temperature range
• Special processing of parts for protection against corrosion gases
• Reliable work in difficult operating conditions

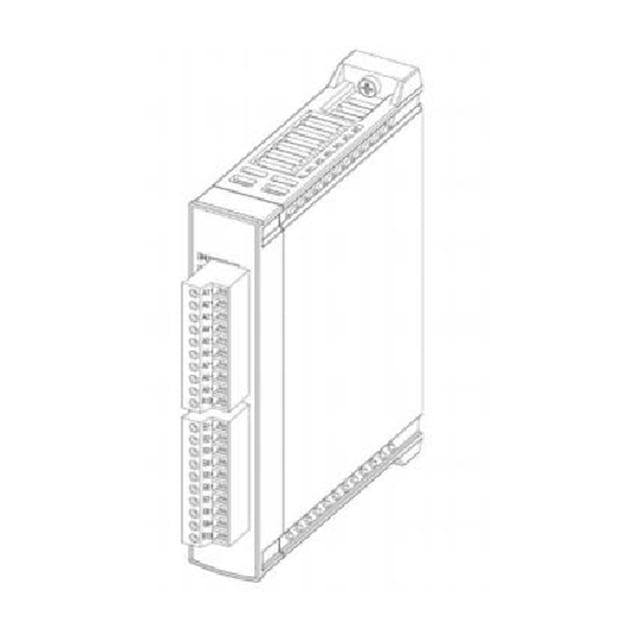

7. Compact structure with high installation density:
• Unified size of modules: 120 × 22.5 × 102.5 mm (including terminals)
• Flexibility of installation
• compliance with compact solutions for industrial facilities
Key advantages:
✔ Full functionality for complex control systems
✔ intuitive programming
✔ Universal integration opportunities
✔ Stability to extreme conditions
✔ Optimal use of space
This system combines advanced technologies with the practicality of industrial performance!
Product operating manual
1. Preparation for work
• Check out the location of the elements on the control panel
• Use an intuitive graphic interface to configure parameters
• Before turning on, check the correctness of all connections
2. Operation
• Carefully monitor the indicators of the condition during operation
• immediately respond to any abnormal indications
• Avoid overloading communication lines
3. Maintenance
• regularly perform:
• Dust and pollution cleaning
• checking the reliability of all connections
• Visual inspection of components
• Recommended frequency then - 1 time in 3 months
4. Precautions
• Do not allow moisture to enter the equipment
• Avoid mechanical damage
• Use only original components
Important: to ensure uninterrupted work, follow all the requirements of the operating manual. If malfunctions occur, immediately stop the operation and contact the service center.
These recommendations will help to extend the service life of the equipment as much as possible and ensure its stable operation.
