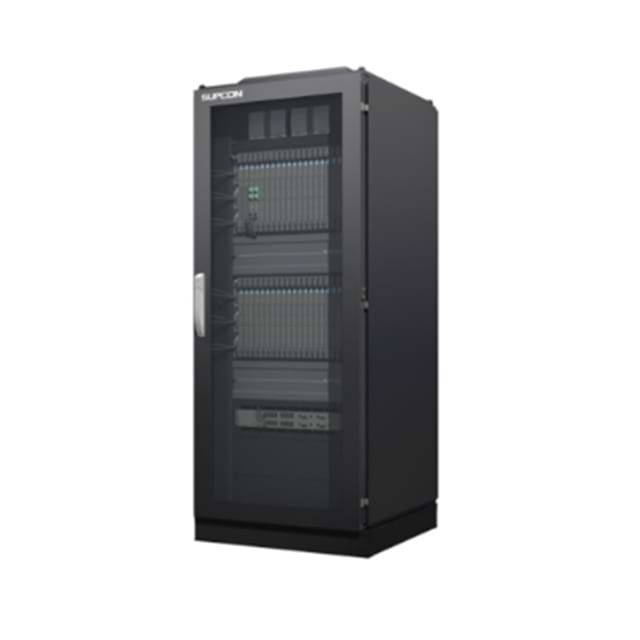

T9100
Key features
1. Scope:
• petrochemical production
• Chemical enterprises
• Explosive zones (classification by ATEX)
2. Supported types of compressors:
• centrifugal
• axial
3. Types of drives:
• steam turbines
• Gas turbines
• electric motors
Technical advantages:
• compliance with international security standards
• Integration with emergency protection systems (ESD)
• Support SIL 2/SIL 3 (according to IEC 61508/61511)
• Built -in antimyal protection algorithms
Functionality:
✓ continuous monitoring of critical parameters
✓ multi -level protection system
✓ Optimization of energy consumption
✓ Remote control support
Notes:
• All components of the system are certified to work in explosive media
• Integration with existing automation systems is possible
• Detailed technical characteristics are provided on request
The T9100 system provides reliable and safe operation of compressor equipment!
The advantage of the product
Technical characteristics of the T9100 compressors control system
1. High reliability
• Triple reserved fault -resistant (TMR) architecture was applied
• Mechanisms are implemented:
• Five -fold voting for increased safety
• high accessibility of the system
• Full compliance with the requirements:
• industrial safety
• continuity of the production process
2. Advanced management technologies
• Unique algorithms have been developed:
• accurate determination of the border of pumping
• multi -level equipment protection
• Coordination of control contours
• Decoration of mutual investment parameters
• Support for complex configurations:
• sequential/parallel connection of units
• hybrid control schemes

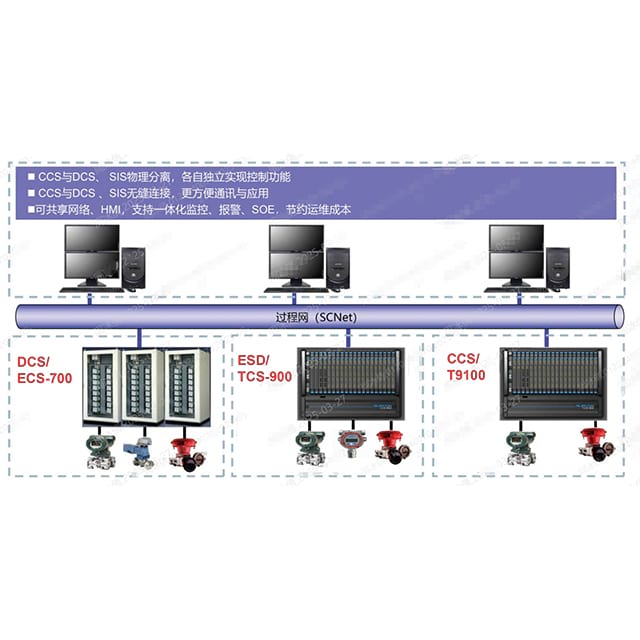

3. Integration opportunities
• Full compatibility with SUPCON systems:
• DCS (distributed control systems)
• SIS (security systems)
• Advantages of integration:
• Simplification of project management
• increasing efficiency by 30-40%
• Reducing operating costs
• A guarantee of the quality of technological processes
Additional advantages:
• operating time for refusal> 150,000 hours
• Compliance IEC 61508 (SIL3)
• Support Industry 4.0
• Cascading control
The T9100 system provides maximum safety when working with compressor equipment!
Product operating manual
1. Management interface
• Check out the location of the elements on the panel:
• touch display (10.4 ')
• Emergency buttons
• Indicator lamps
• Connection ports
• Use an intuitive graphic interface for:
• Settings of working parameters
• Protection configurations
• Diagnostics of the system
2. System programming
Available modes:
• Basic (pre -installed templates)
• extended (manual setting):
• Functional blocks (FBD)
• Stage diagrams (LD)
• Text entry (ST)
3. Monitoring of the condition
Color indication:
• Blue: Settings mode
• Green: normal work
• Yellow: Warning
• Red: emergency state
• White: Service operations
4. Integration opportunities
Supported protocols:
• OPC UA (TSN)
• Profinet IRT
• Ethernet/IP
• Modbus tcp
The advantages of the system:
✓ Setting time is reduced by 60% thanks to the AI assistant
✓ 100% compatibility with the equipment of leading manufacturers
✓ Digital Twin support
✓ Update without stopping production
To activate advanced functions, contact a service engineer.
