OMC
Key features
1. Reliability and safety:
• architecture designed in accordance with the principles of failure tolerance
• Full redundant of critical components:
® Power supply module
® Communications
® Controllers
2. Continuity of work:
• Automatic switch to backup modules
• Machine will not shut down when there is a module frailer
• Support for hot replacement of components
3. Industrial advantages:
• Compliance with international security standards
• Possibility of integration with ERP/MS systems
• Support for digital technologies Industry 4.0
Areas of application:
✓ Oil and gas industry
✓ Chemical industry
✓ Energy industry
✓ Metallurgical enterprises
✓ Pharmaceutical industry
The OMC system provides uninterrupted management of the critically important technological processes of the enterprise!
The advantage of the product

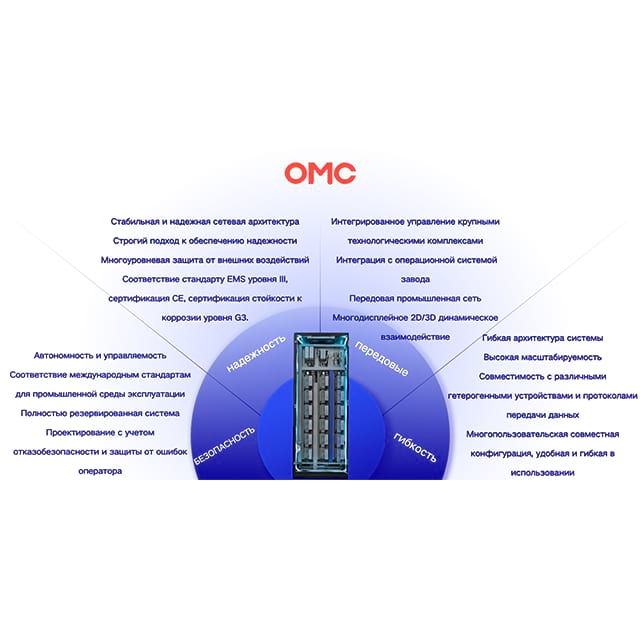

Technical characteristics of the OMC system (translation into Russian)
1. Security
• compliance with international standards of industrial safety and noise immunity
• Full reservation of critical components:
• Power Modules
• Controllers
• I/O modules
• Communications
• Security functions of the I/O modules:
• Built -in refusal diagnostics
• Online configuration loading
• The possibility of changes in real time
• Protection of the controller network:
• Analysis of protocols
• Authentication of devices
2. Ease of operation

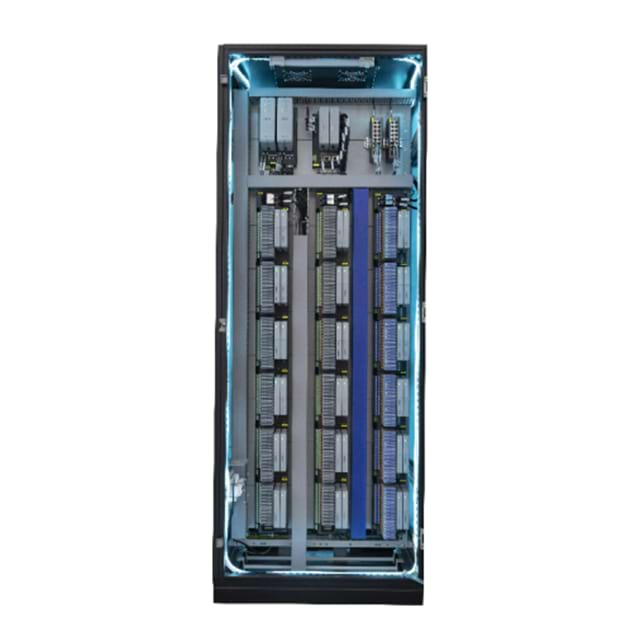

• Standardized 19-inch Cabinet:
• Modular architecture
• Unified components
• Adapte to different conditions
• Optimized cabinet design:
• bilateral vertical layout
• Equipment placement flexibility
• Ease of maintenance
3. Reliability
• Multi-level protection against external influences:
• EMC class I compliance
• CE Certificate
• Resistance to G3 conditions (strong pollution)
• Diagnostic functions:
• Self-diagnosed modules
• Hot replacement of components
• Localization of malfunctions to the level of channels I/O
4. Real time
• Quick logical management:
• Minimum scanning cycle 20 ms
• Sequence of Events (SOE):
• 0.5 ms accuracy
5. Integration
• Compatibility with systems:
• TCS-900
• JX-300XP
• A single operator interface:
• Simultaneous access to DCS and SIS data
• Simplification of information processing
6. Openness
• Support for interfaces:
• Field tires (FF, Profibus)
• Industrial Ethernet (Profinet, Ethernet/IP)
• outdated analog signals
• Standard protocols:
• Modbus
• HART
• OPC UA
Additional characteristics (from the image):
• Processor: Cortex-A8 (800 MHz)
• Memory: 8 MB programs
• Communications: 2 × Ethernet, RS-485
• Max. I / O: 8192 discrete / 4096 analogue
• Diagnostics: at the channel level
• Support for hot replacement: yes
The OMC system provides a comprehensive solution for the automation of industrial enterprises!
Video about the product
Product operating manual
1. Preparation for work
• Verification of environmental conditions:
✓ Provide free space 1m around the equipment
✓ Maintain the temperature in the range of 10-40 ° C
✓ Check the ventilation of the room
• Power supply and safety:
✓ Connect a stabilized power source (220v ± 5%)
✓ Use antistatic bracelet
✓ Check the operability of the emergency stop button
2. Step-by-step operating instructions
• Launch procedure:
1) Press and hold the power button for 3 seconds
2) Select the mode of operation ( 'Standard'/ 'Energy-saving ')
3) wait for a constant green indicator
4) Download the material
• Work monitoring:
✓ Control the pressure and temperature parameters on a 7-inch touch screen
✓ In case of malfunctions, an error code (for example, E01 - overheating) is automatically displayed)
3. Security and maintenance measures
• Acts in emergency situations:
✓ Immediately press the red emergency button
✓ To eliminate malfunctions, use 'Guide to quickly eliminate malfunctions '
• Regulatory service:
✓ Daily: clean the air filter
✓ Monthly: grease the guides (use lubric lubricant #2)
✓ Quarterly: perform calibration sensors
Additional recommendations:
• Always use original spare parts
• In case of malfunctions that are not described in the manual, contact the service center
• regularly check the condition of cables and connections
This instruction provides safe and efficient operation of equipment!
