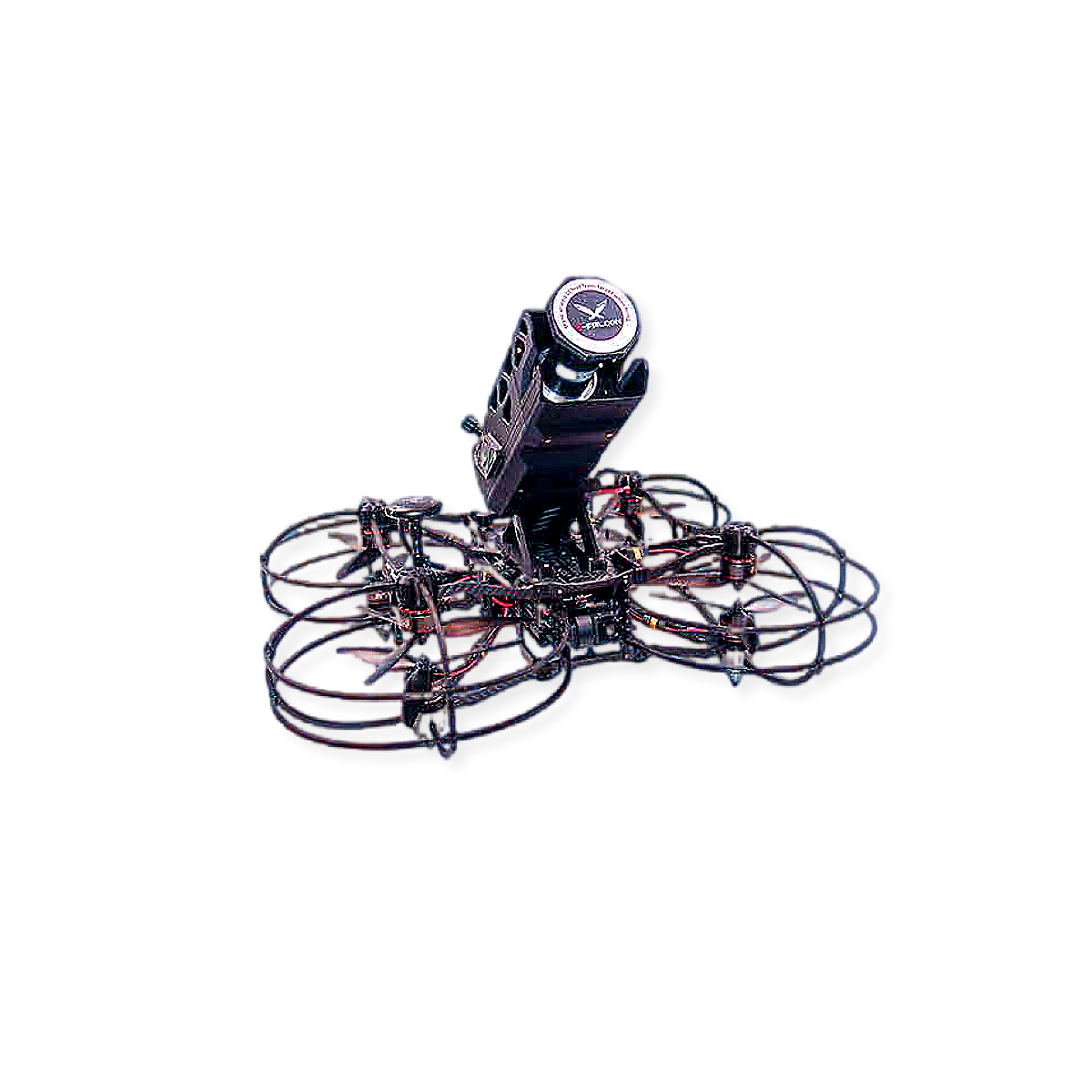

Autonomous Net-Capturing UAV | Full-Process Automatic Airspace Protection Equipment

It has autonomous navigation, recognition, locking and capture functions, supports automatic/manual guidance modes. The whole process from monitoring to strike is completed automatically without manual intervention, which can efficiently handle non-cooperative targets and ensure the airspace safety of key areas.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • 156EFNS92-MSE-B05A

1. Full-process automatic operation: The whole process from target monitoring, recognition, locking to net launch is completed automatically without manual intervention, which greatly improves the disposal efficiency in various scenarios and avoids the risk of manual operation delay.


2. AI high-precision recognition and tracking: It supports image recognition and tracking of targets with multiple aircraft types, different attitudes and speeds. Combined with algorithms, it ensures locking accuracy and can cope with complex UAV activities.


3. Modular non-lethal strike design: It supports mounting non-lethal ammunitions such as tripwires, electric shocks and GPS tracking. It can flexibly switch task modes according to scenario needs and avoid additional damage to surrounding equipment.


4. High carrier compatibility: It is compatible with multiple types of carrier systems such as DJI X-PORT, no additional investment is required for adapting to new carriers, which reduces the equipment replacement cost of users and improves equipment versatility.


5. All-weather complex environment adaptation: It can work in complex environments such as cities and mountains, not restricted by bad weather and terrain, and ensures 24-hour airspace safety.


6. High-performance basic configuration: The maximum flight speed reaches 175 km/h and the maximum range is 10 km, which can quickly reach the task area; the maximum take-off weight is 12 kg, which can stably carry the net capture launcher and other auxiliary equipment.

  1. Aircraft Size: 510x570x160mm(±2mm)

  2. Power Architecture: OCTO X8 8-rotor

  3. Maximum Flight Speed: 175 km/h

  4. Maximum Range: 10 km

  5. Maximum Flight Altitude: 2000 m

  6. Maximum Take-off Weight: 12 kg

  7. Energy Configuration: 5000-8000 mAh(6s LiPo)

  8. Net Capture Launcher Size: 294x98x103 mm

  9. Net Capture Launcher Net Weight: 1.5 kg

  10. Launch Power: Carbon Dioxide

  11. Maximum Net Capture Range: 14 m

  12. Launcher Battery Capacity: 2000 mAh Lithium Battery

  13. Launcher Charging Method: 100w Type-C Fast Charging

  14. Launcher Continuous Working Time: 72 Hours

  15. Launcher Shell Material: Aluminum Alloy/Nylon Carbon Blend

1.Airspace Protection of Key Facilities: Suitable for key facilities such as airports and nuclear power plants. It can intercept non-cooperative UAVs in real time to prevent them from invading and causing equipment damage or operation interruption, and ensure facility safety.


2. Large-Scale Event Security: At the site of large-scale events such as exhibitions and celebrations, it can quickly handle "unauthorized flight" UAVs to prevent them from interfering with the event process and maintain on-site order.


3. Daily Public Security Patrol: Used for daily urban patrol, it can efficiently capture UAVs flying in violation of regulations, prevent them from taking photos and disrupting public order, and maintain airspace order.


4. Industrial Park Protection: In industrial parks, it can intercept illegally invading UAVs to prevent them from stealing production information and damaging production equipment, and ensure the normal operation of the park.

Frequent Questions
  • 1. Can this equipment be adapted to existing UAV carriers?
    Created with Sketch.
    形状 Created with Sketch.
    It is compatible with multiple types of carrier systems such as DJI X-PORT, and can be directly adapted to most existing carriers without additional modification.
  • 2. Can the continuous working time of the launcher meet the long-term duty needs?
    Created with Sketch.
    形状 Created with Sketch.
    The launcher can run continuously for 72 hours, which can cover the long-term duty tasks in most scenarios.
  • 3. Does complex terrain (such as mountains) affect the use of the equipment?
    Created with Sketch.
    形状 Created with Sketch.
    It supports all-weather deployment, can adapt to complex environments such as mountains, and does not affect normal functions.
  • 4. Will the strike ammunition cause damage to surrounding equipment?
    Created with Sketch.
    形状 Created with Sketch.
    Non-lethal ammunition such as tripwires and electric shocks are used, which will not cause additional damage to surrounding equipment.
