"Air Fence" Multi-Sensor Anti-UAV System

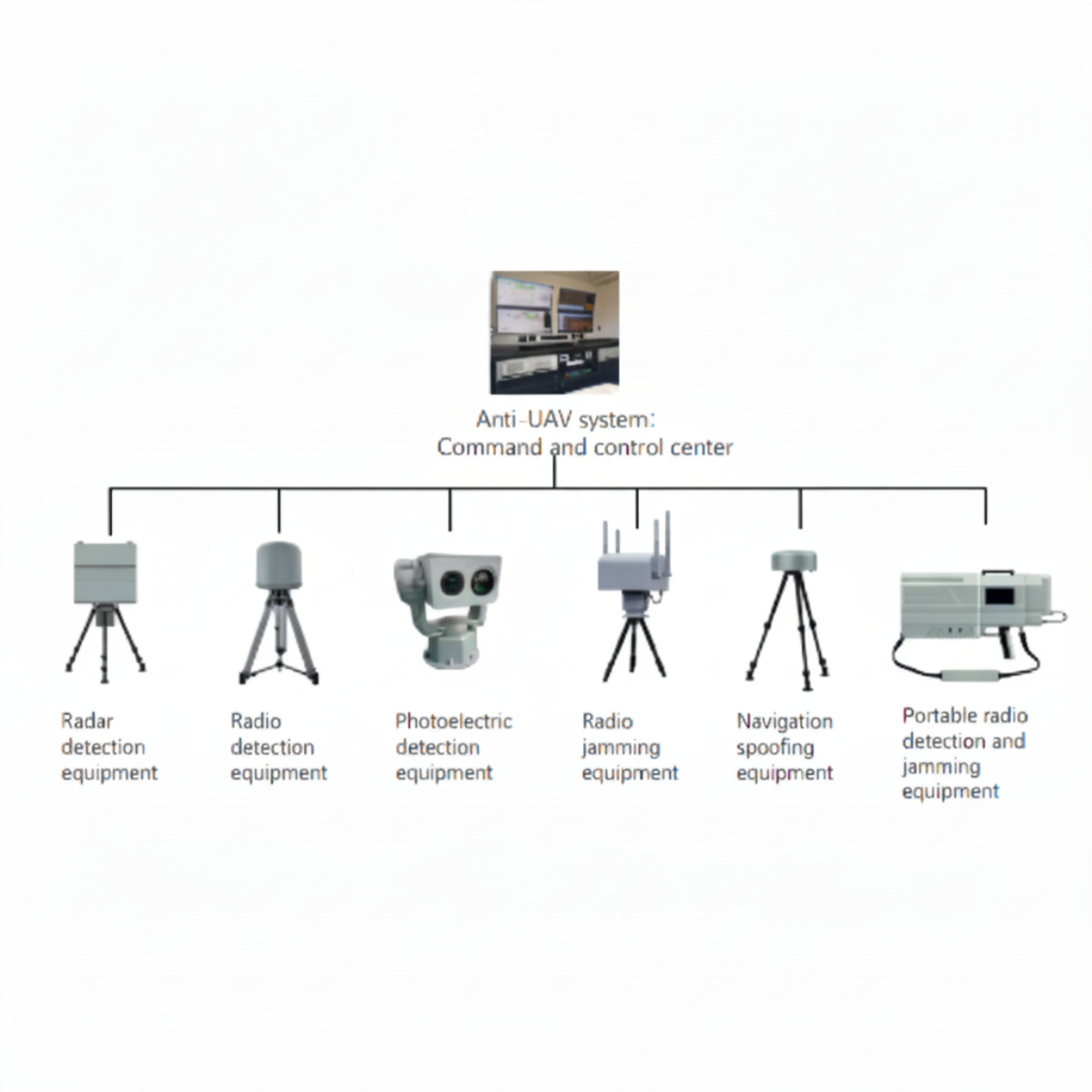

It is an integrated defense platform designed to detect, track, and neutralize unauthorized drones in military and civilian airspace. It combines radar, radio frequency detection, and electro-optical sensors for all-weather, 24/7 surveillance. The system employs radio jamming and GPS spoofing technologies to disrupt drone control links and navigation systems, enabling forced landing or return-to-home protocols. With an open architecture, it supports interoperability with weapon systems and other electronic warfare platforms
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • TS-K3500

1. Multi-Sensor Data Fusion: It integrates active radar, passive RF detection, and electro-optical tracking to achieve >95% target identification accuracy with minimal false alarms.


2. Adaptive Countermeasure Strategies: It features directional/full-band jamming and GPS spoofing capabilities, automatically adjusting to different drone models for precise neutralization.


3. Autonomous Operation: It allows pre-defined zones (alert, drive-away, forced landing) with automated responses, reducing operator workload.


4. Flexible Deployment Options: It supports fixed high-altitude installation or vehicle-mounted mobile deployment for rapid response in complex environments.


5. Open Architecture & Interoperability: It provides TCP/IP and radio interfaces for seamless integration with existing command systems.


6. High Reliability & Low Power Consumption: Modular solid-state design with BITE functionality; radar power consumption ≤400W.


1. Radar Detection

Band: KU-band FMCW; Range: ≥3km; Targets: UAVs, powered gliders


2. RF Detection

Band: 1.2GHz-6GHz; ID Capability: DJI and mainstream models; Bearing accuracy: ≤5°


3.Electro-Optical Tracking

IR: 640×512; Visible: 30× optical zoom; Night vision range: ≥2km


4. Radio Jamming

Bands: GNSS + control/image transmission; Azimuth: 360° rotation; Range: ≥1.5km


5. Navigation Spoofing

Modes: GPS/BeiDu; Spoofing accuracy: ±10m


6. Command & Control

Protocols: TCP/IP; Mapping: GIS/Google Earth; Modes: Auto/Manual/Simulation

  1. Critical Infrastructure Protection: Government facilities, airports, and nuclear plants for no-fly zone enforcement.

  2. Military Base Defense: Counter reconnaissance and attack drones in field operations.

  3. Event Security: Safeguard summits, sports events with real-time threat response.

  4. Oil Field/Border Patrol: Mobile vehicle deployment for wide-area surveillance.

  5. 24/7 Unmanned Monitoring: Autonomous protection for factories, dams, and high-value assets.

Frequent Questions
  • 1. How does the system distinguish drones from birds or other objects?​​
    Created with Sketch.
    形状 Created with Sketch.
    Through micro-Doppler radar analysis, RF signal fingerprinting, and AI-based electro-optical recognition, ensuring accurate target classification.
  • 2. Does the jamming affect surrounding communication devices?​​
    Created with Sketch.
    形状 Created with Sketch.
    Directional jamming beams focus exclusively on target drones, while GPS spoofing uses low-power signals to minimize collateral impact.
  • 3. What is the response time for mobile deployment?​​
    Created with Sketch.
    形状 Created with Sketch.
    Target acquisition to jamming activation takes ≤5 seconds; vehicle-mounted system setup completes in <10 minutes.
  • 4. Can the system handle drone swarm attacks?​​
    Created with Sketch.
    形状 Created with Sketch.
    Yes, it tracks dozens of targets simultaneously using time-division multiplexing technology for group suppression.
  • 5. How does it perform in complex electromagnetic environments?​​
    Created with Sketch.
    形状 Created with Sketch.
    Frequency-hopping anti-jamming technology and military-standard EMC design ensure stability in high-interference scenarios.
