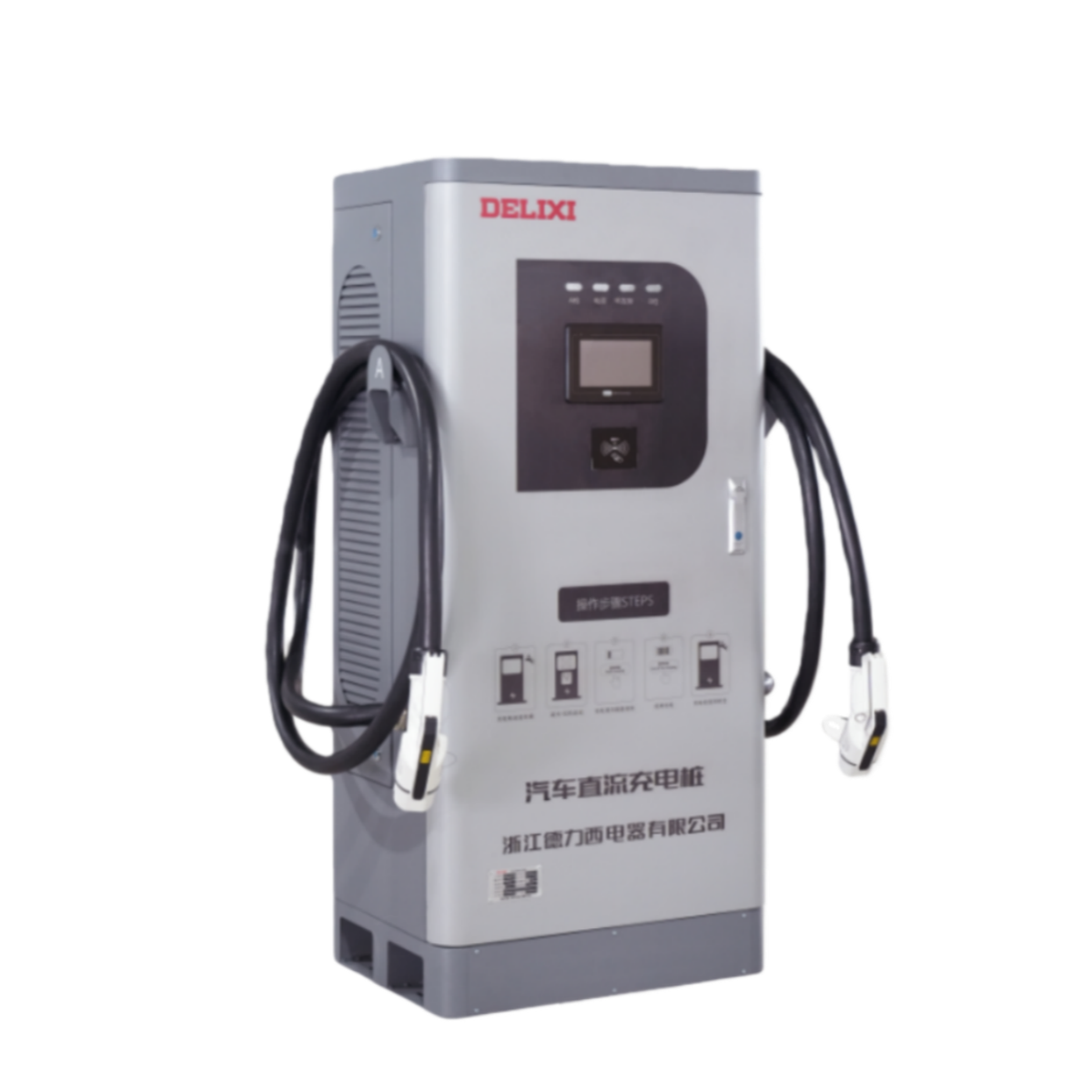

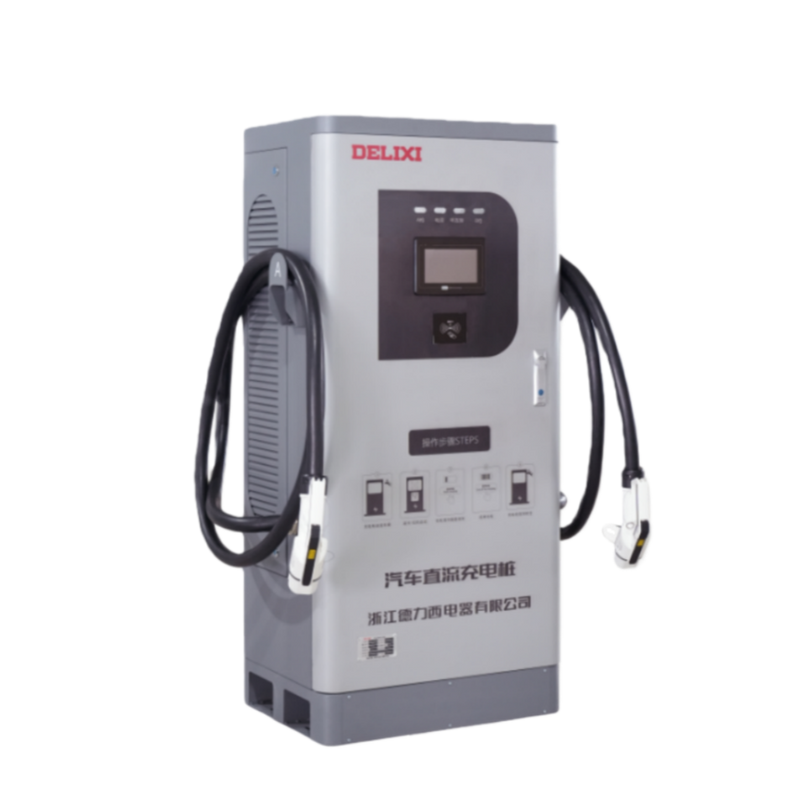

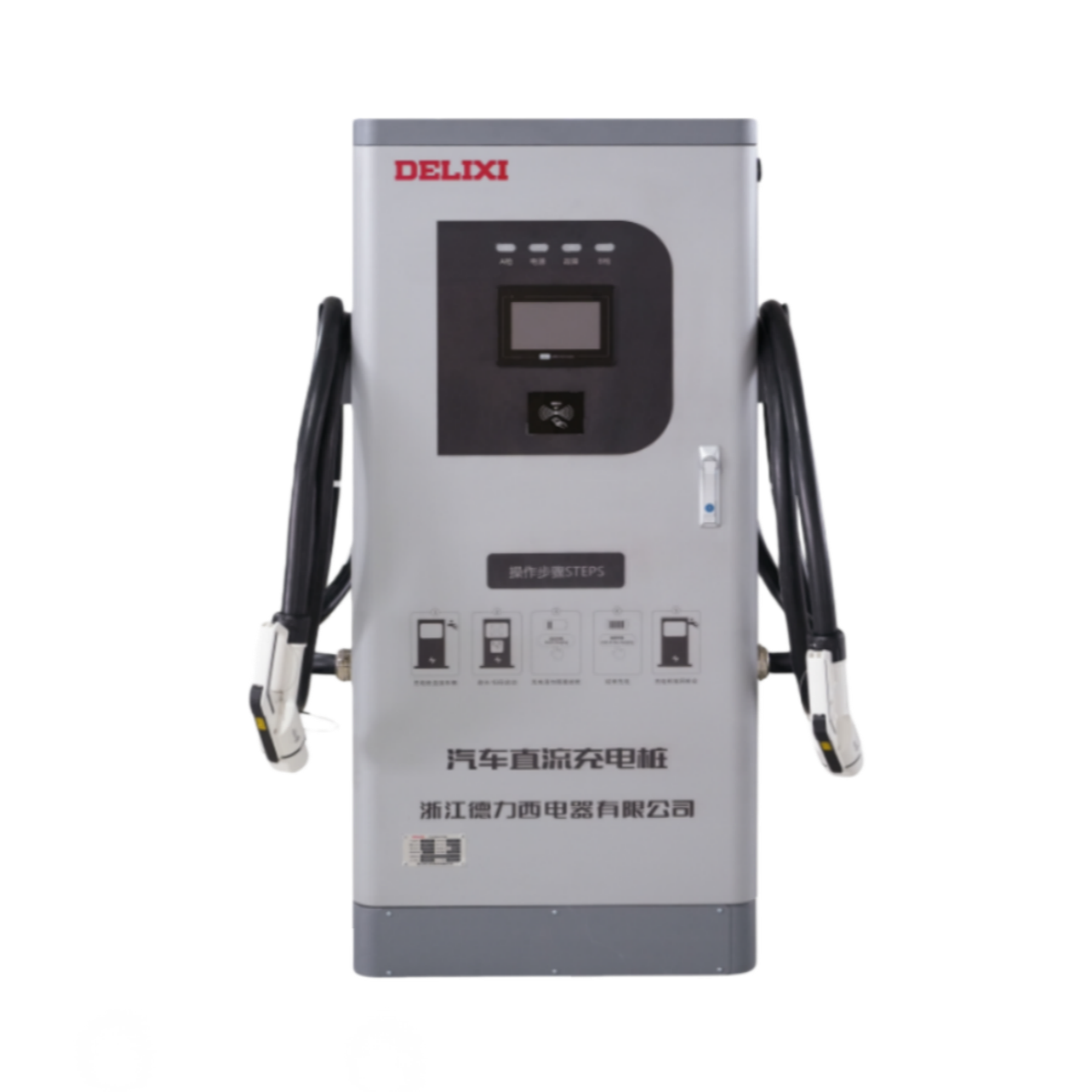

​​CDDC Series DC Charging Station, Integrated, for Electric Vehicles (EVs), Dustproof and Waterproof​

1. Input Voltage: AC 380V ±15%

2. Input Voltage Type: Three-phase AC five-wire system

3. AC Grid Frequency: 50Hz ±10% Hz

4. Output Voltage: 200 - 750V

5. Output Current: 0 - 134A

6. Rated Output Power: 15 - 40kW

7. Output Voltage Error: ≤ 0.5%

8. Output Current Error: ≤ ±0.3A when output current < 30A

9. Voltage Regulation Accuracy: ≤ 0.5%

10. Current Regulation Accuracy: ≤ 0.5%

11. Ripple Coefficient: ≤ 0.5%

12. Average Efficiency: ≥ 94%

13. Power Factor: ≥ 0.99

14. Leakage Current: ≤ 10mA

15. Power Frequency Withstand Voltage: 2500VAC, 1 min (no insulation breakdown or flashover)

16. Insulation Resistance: ≥ 20MΩ (Test Voltage: 1500VDC)

17. Noise: ≤ 60dB

18. Protection Rating: IP54

19. Cooling Method: Air-cooled

1. Public Parking Lots: With an IP54 protection rating, this charging station series can operate safely indoors or outdoors (with a rain shelter). Its flexibly configurable power output (30kW to 240kW) meets diverse EV charging needs, providing convenient charging for various EV users in public parking lots.

2. Highway Service Areas: The Delixi CDDC series features rapid charging capabilities, offering single-gun output, dual-gun sequential charging, and balanced charging modes, making it an ideal choice for fast DC charging. This allows long-distance EV travelers to quickly recharge at highway service areas, reducing waiting times.

3. Commercial Centers: These areas experience high foot traffic and frequent vehicle movement, creating significant EV charging demand. The charging station's 7-inch LCD touchscreen offers bright, clear display suitable for outdoor use and withstands low temperatures of -20°C, providing convenient charging services for EV users at commercial centers.

4. Residential Communities: With the growing adoption of EVs, residential communities increasingly require charging infrastructure. The Delixi CDDC series offers various installation options like wall-mounted and pole-mounted types, adaptable to specific community layouts, meeting residents' needs for home-area charging.

5. Logistics Parks: Logistics parks host numerous electric logistics vehicles (e.g., electric trucks) that often require rapid charging to maintain operational efficiency. The high-power output and multiple charging modes of the Delixi CDDC series meet the fast-charging demands of logistics vehicles, ensuring smooth logistics operations.
