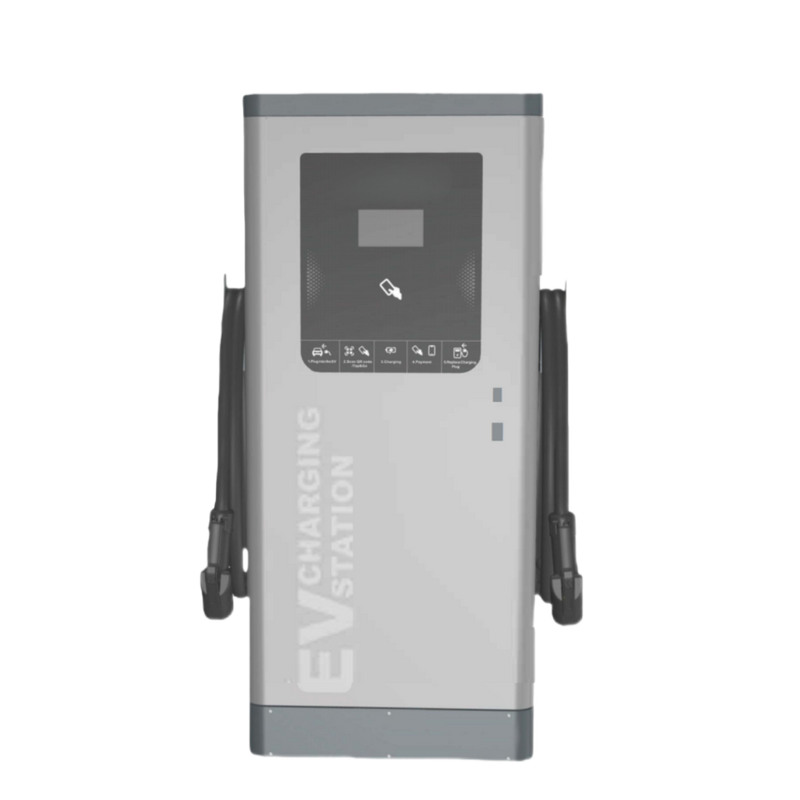

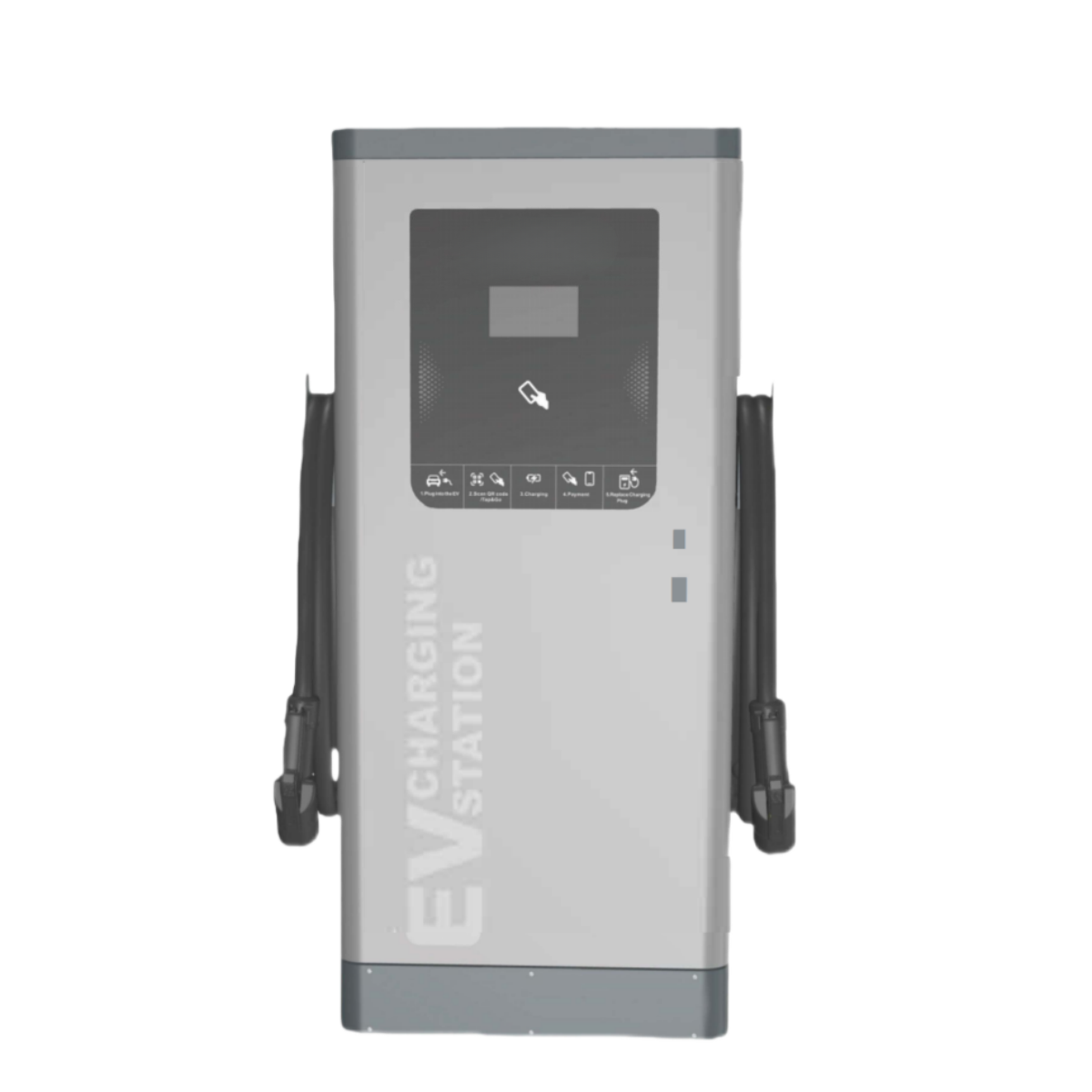

DC Fast Charger (60-240kW)

The HHEV3701HM is a DC fast charger for public use, delivering 60-240kW power with CCS/GB/T compatibility. Featuring modular design, a 7-inch touchscreen, and dual RFID authentication, it meets IP54 standards for outdoor deployment at highway rest stops, commercial parking lots, and similar venues.

Features:
1.High-Efficiency Charging: 95% conversion efficiency, it supports simultaneous multi-vehicle charging
2.Smart Interaction: 7-inch touchscreen shows real-time voltage, current, and SOC data
3.Rugged Durability: IP54 rating, IK10 impact resistance, operable from -30°C to 55°C
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • HHEV3701HM

1. High-Efficiency Charging: 95% conversion efficiency, it supports simultaneous multi-vehicle charging

2. Smart Interaction: 7-inch touchscreen shows real-time voltage, current, and SOC data

3. Rugged Durability: IP54 rating, IK10 impact resistance, operable from -30°C to 55°C


  1. Input: 400VAC ±15%, 50/60Hz

  2. Output: 200-1000VDC, max 200A

  3. Power Ratings: 60kW/120kW/180kW/240kW

  4. Communication: 4G/LAN, OCPP 1.6J

  5. Protection: IK10 impact resistance

  1. Highway service stations: Provide rapid energy replenishment for long-distance electric vehicles.

  2. Commercial parking lots: Offer charging services as an amenity for shopping malls and office areas.

  3. Fleet operation centers: Centralized charging management for taxis and logistics vehicles.

  4. Public charging stations: High-traffic charging points in urban core areas.

Frequent Questions
  • 1. What preparatory work is required for installation?​
    加 Created with Sketch.
    形状 Created with Sketch.
    A concrete foundation (≥820×380×200mm), M14 expansion bolts, and cables (≥32mm² for 60kW) are required. Professional installation by a certified electrician is recommended.
  • 2. How do I initiate charging?​
    加 Created with Sketch.
    形状 Created with Sketch.
    After connecting the vehicle, simply swipe an authorized RFID card to begin charging. Real-time progress will be displayed on the screen.
  • 3. How to resolve Fault Code 07 (Overheating)?​
    加 Created with Sketch.
    形状 Created with Sketch.
    Suspend use and allow the unit to cool down before restarting. Ensure the ventilation openings are unobstructed.
  • 4. Is scheduled charging supported?​
    加 Created with Sketch.
    形状 Created with Sketch.
    Yes, remote scheduling of charging sessions is supported via the backend system or a mobile application.

  • 5. What is the maintenance cycle?​
    加 Created with Sketch.
    形状 Created with Sketch.
    It is recommended to inspect cables for wear and connector status every 6 months, with professional maintenance performed annually.
Previous:
Next:
Unmanned aerial vehicle Industrial devices and robots AGV
Request to goods
Verify Code
Corresponding Product

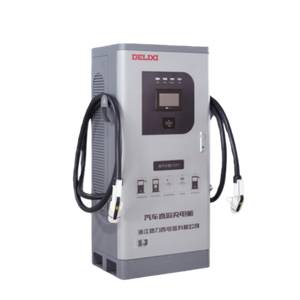

​​CDDC Series DC Charging Station, Integrated, for Electric Vehicles (EVs), Dustproof and Waterproof​
