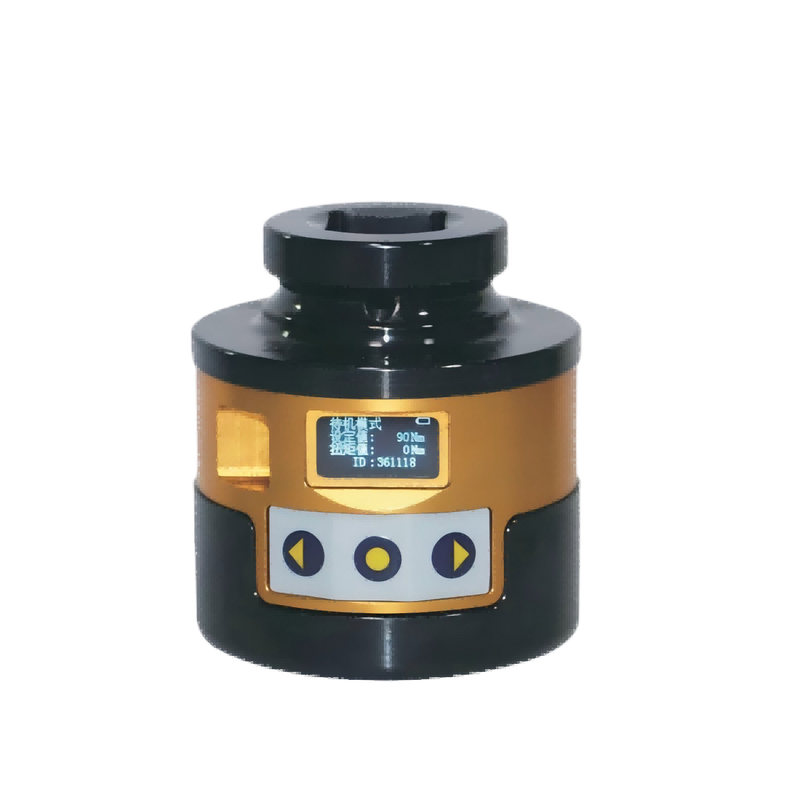

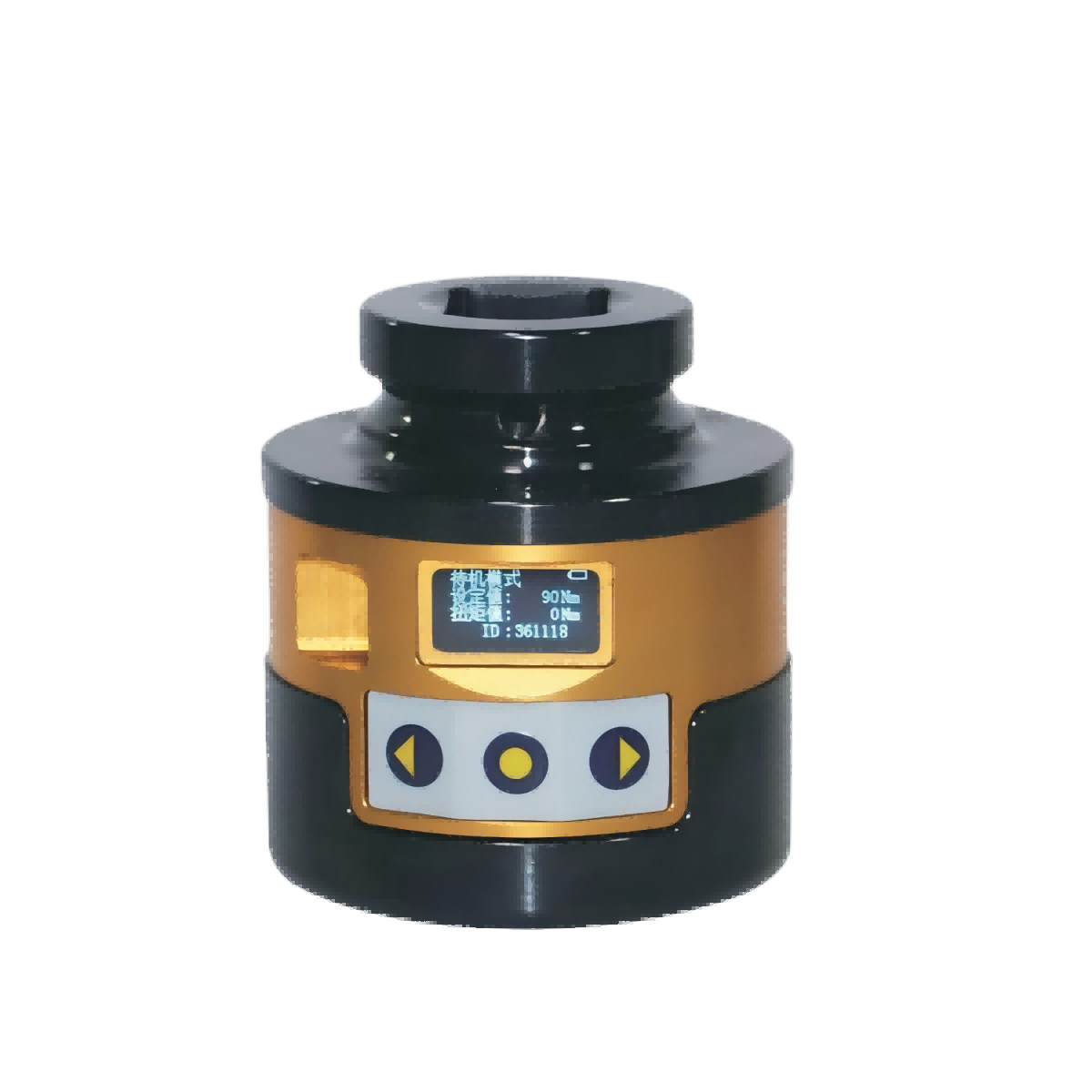

BS intelligent torque sleeve, High-precision sensors and data acquisition functionality. Real-time monitoring, display, and recording

The BS Smart Torque Socket is an intelligent fastening tool integrated with high-precision sensors and data acquisition capabilities. It is not a standalone wrench but rather a ​​smart attachment​​ that fits onto standard torque wrenches or impact wrenches. It enables real-time monitoring, display, recording, and transmission of critical data (e.g., torque, angle) during bolt fastening processes, transforming traditional tools into a digital, traceable intelligent fastening system. This ensures precision, reliability, and convenient data management for fastening operations.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • BS

  1. Accuracy: ±1%

  2. Bluetooth data transmission

  3. Data display; supports data archiving, recording, and download via APP

  4. 1.5-hour charging provides 10-12 hours of continuous operation

  5. OLED display

  6. Micro USB data port with strong compatibility

  7. Specifications customizable to meet on-site requirements

  1. Torque Range:50 - 2000 N.m (multiple range models available)

  2. Accuracy:±1%

  3. Sampling Rate:≥1000 Hz

  4. Display Unit:Built-in high-definition OLED display

  5. Data Output:Real-time display of torque, peak torque, rotation angle, etc.

  6. Communication:Bluetooth BLE 5.0 for wireless transmission to mobile/tablet APP

  7. Data Storage:Local storage for over 10,000 fastening records

  8. Power Supply:It is rechargeable lithium battery supporting 10+ hours of continuous operation

  1. Automotive Manufacturing & Assembly: Bolt fastening and quality control for critical components such as engines, chassis, and wheels.

  2. Wind Power Industry: Regular maintenance and safety verification of bolts in wind turbine towers, blades, and nacelle components.

  3. Rail Transportation: High-strength bolt fastening for high-speed rail/bogie systems, track connections, and body assembly.

  4. Petrochemical & Energy: Equipment maintenance and installation for pressure vessels, pipeline flanges, valves, and pumps.

  5. Aircraft Manufacturing & Maintenance: Aerospace applications requiring extreme precision and traceability of fasteners.

  6. Heavy Machinery: Bolt pre-tightening for large structural components in excavators, cranes, and mining equipment.

Frequent Questions
  • 1. Is this smart socket compatible with wrenches from any brand?​​
    加 Created with Sketch.
    形状 Created with Sketch.
    Generally, yes. As long as the drive square (e.g., 1/2", 3/4") of your wrench (manual torque wrench, hydraulic wrench, electric wrench, etc.) matches the interface of the smart socket, it can be attached and used. It calculates torque by measuring the torsional deformation of the socket itself, independent of the brand of the driving tool.
  • 2. How is the data transmitted and managed?
    加 Created with Sketch.
    形状 Created with Sketch.
    The socket wirelessly transmits real-time fastening data (torque value, angle, time, result judgment) to a dedicated mobile/tablet APP via Bluetooth Low Energy (BLE). The APP allows users to set torque thresholds, save each operation record, generate reports, and export data (e.g., Excel or PDF formats) for quality traceability and analysis.
  • 3. Does it require frequent calibration? What is the recommended calibration cycle?​​
    加 Created with Sketch.
    形状 Created with Sketch.
    To ensure measurement accuracy, regular calibration is recommended. The calibration cycle depends on usage frequency and working environment. Generally, it is advised to:
    Calibrate ​​before initial use​​.
