Professional High-Sensitivity Handheld Corona Detection Instrument

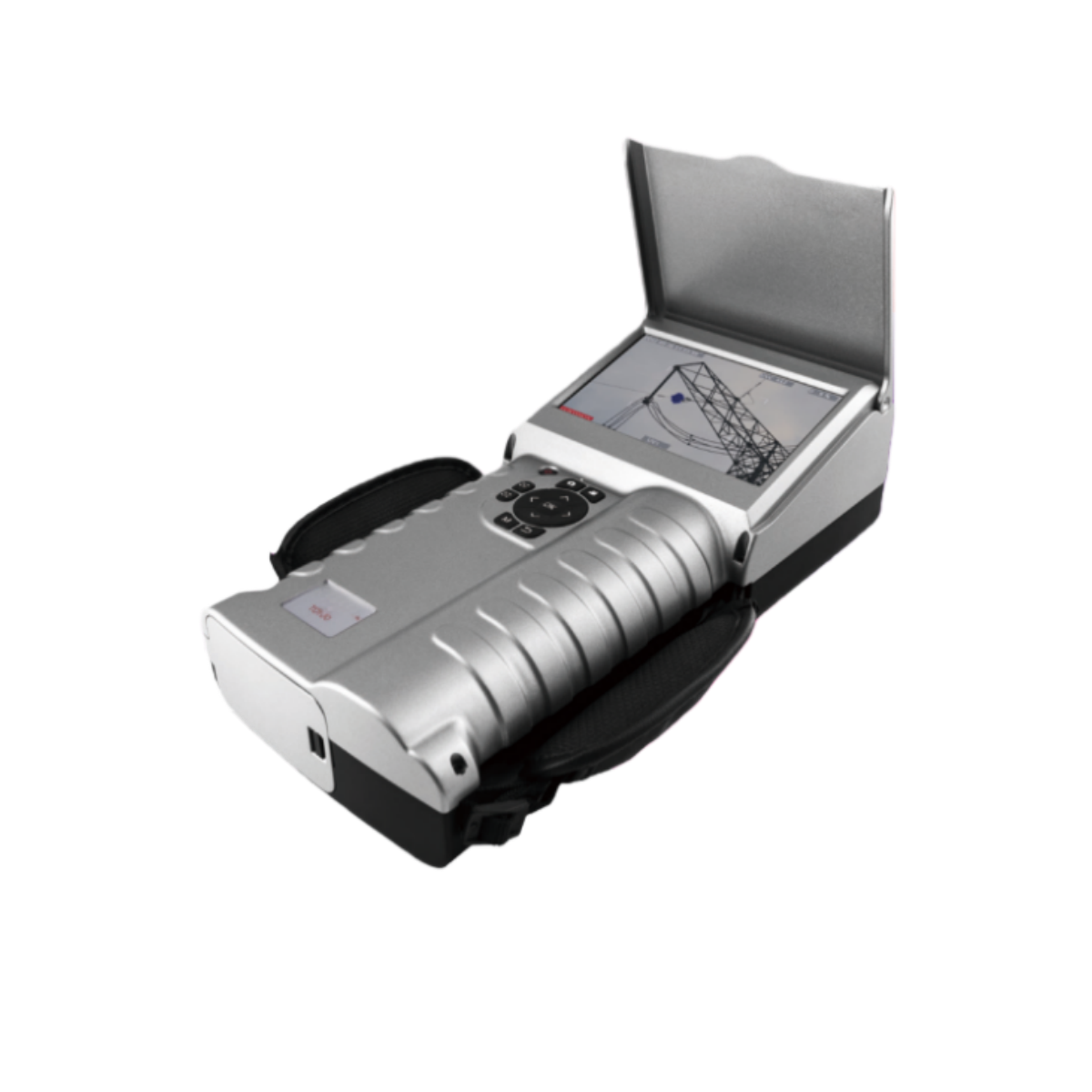

The ULIRVISION TD100 is an innovative non-destructive testing device designed to detect, locate, and document corona discharge and partial arcing. It features a high-sensitivity solar-blind detector (2.2×10⁻¹⁸W/cm²) with precise UV/visible light overlay, operable efficiently in full daylight.It is suitable for overhead transmission line inspection, substation maintenance, electrical equipment testing, high-voltage research institutes, HV component inspection and etc.

Features:
1.High-Precision Detection： Detect discharges as small as 1.0pC@15m with 1mrad overlay accuracy for precise localization.
2.Portable & Smart Operation： Weigh only 1.39kg with a 5-inch touchscreen, handheld design, and 4-hour battery life.
3.Multi-Function Integration： Support SD card online upgrades and professional analysis software for real-time data export and remote monitoring.

Quantity:
Availability:





Inquire Add to Basket

Model:
TD100

Reliable Detection： Use 240-280nm solar-blind spectrum with strong anti-interference, detecting discharges as small as 1.0pC@15m for complex environments.
User-Friendly Design： Auto/manual focus, touchscreen control, and multi-mode display (UV/visible/fusion) simplify operation.
Long-Lasting & Durable： IP54 rating, operable in -20℃~+50℃, with 4-hour continuous runtime for field inspections.
