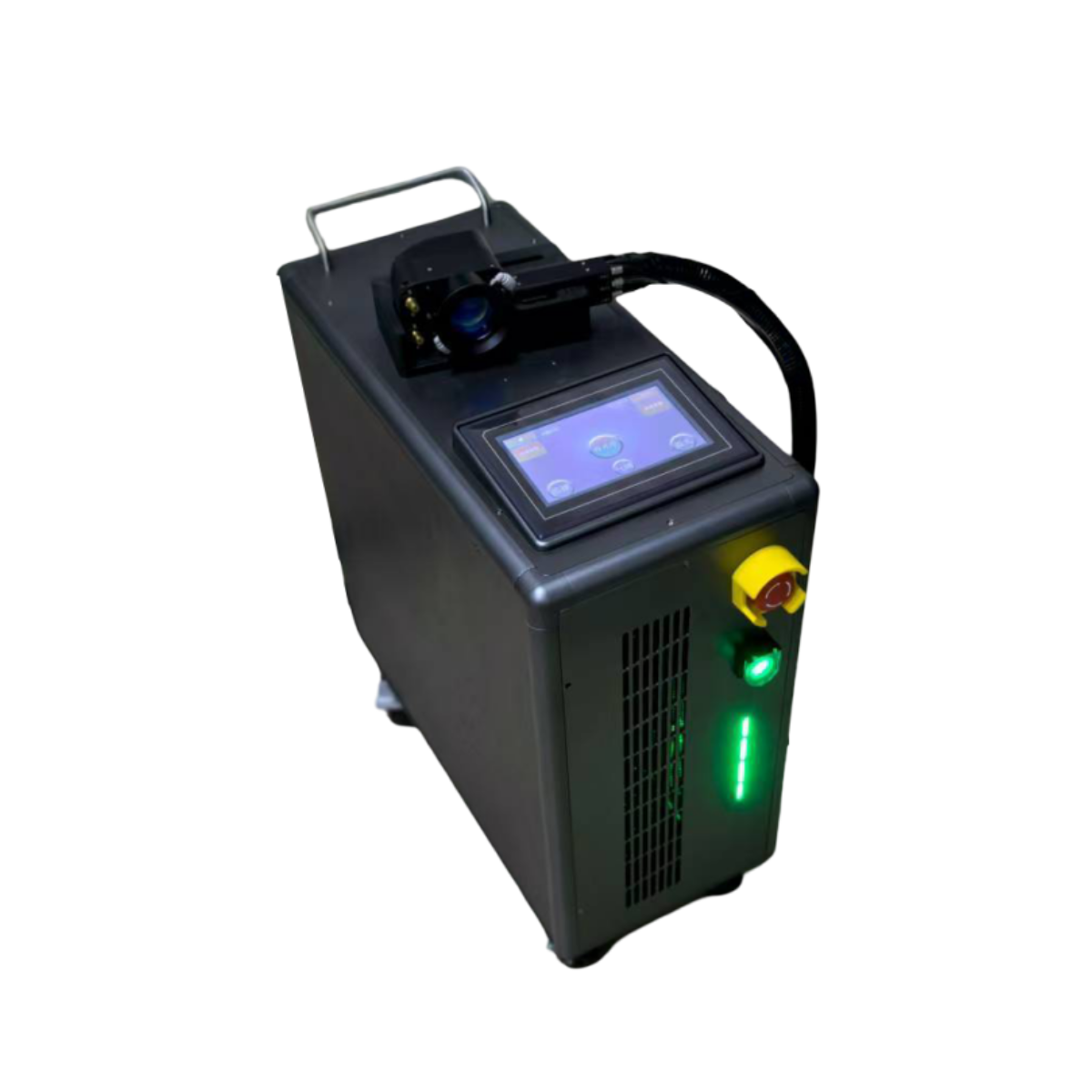

Lightweld LW1pro-P300 Handheld Pulsed Laser Cleaner

1. Efficient Heat Dissipation & Stable Operation：Adopts 3D phase-change heat dissipation; the fan adjusts speed intelligently based on air-cooled plate temperature. It works stably at -15~45℃ for long continuous cleaning, meeting the demand for "wide-temperature laser cleaners".

2. High Energy Conversion & Cleaning Capacity：With electro-optical conversion efficiency ≥42%, 1064nm laser wavelength, and 2mJ pulse energy, it cleans high-reflective materials easily without pre-treatment, reducing the difficulty of "high-reflective material laser cleaning".

3. Intelligent & Convenient Control：Supports remote parameter control and process package transmission via mobile APP/mini-program. It has a custom lock function, with remote authorization for extended use, fitting "intelligent control laser cleaners".

4. Flexible for Multi-Scenarios：Offers gun-type and standard laser heads (Gaussian beam for standard, parallel beam for extended). The scanning width is 175mm×175mm (expandable with lens), supporting various cleaning paths.

5. Precise Operation Experience：7-inch LCD touchscreen and auxiliary red light for focusing; the lightweight cleaning head ensures easy handheld operation, reducing manual errors and improving "handheld laser cleaning" efficiency.

1. Output Power 300W

2. Operating Mode Pulsed mode

3. Pulse Energy 2mJ

4. Laser Wavelength 1064nm

5. Pulse Width 100-350ns

6. Maximum Modulation Frequency 100-4000kHz

7. Beam Mode Standard: Gaussian beam; Extended: Parallel beam

8. Cleaning Paths Automatic waveform path, pattern filling path, external imported arbitrary path

9. Working Modes Automatic, manual

10. Scanning Width 175mm×175mm (expandable with field lens)

11. Operation Interface 7-inch LCD touchscreen

12. Cooling Method Forced air cooling (with 3D phase-change radiator + intelligent variable-speed fan)

13. Operating Ambient Temp -15~45℃

14. Input Voltage 220V AC/50Hz/60Hz

15. Safety Certification Complies with IEC 60825-1:2014, EN 60825-1:2014+A11-2021, etc.

1. Aerospace & Marine Heavy Industry：Cleans rust and oxide layers on metal parts. The 1064nm laser acts precisely on contaminants without damaging substrates, meeting surface cleaning standards for high-end equipment and ensuring assembly accuracy.

2. Food & Pharmaceutical Processing：Cleans oil and residues on production equipment without chemical cleaners, avoiding secondary pollution. It meets hygiene requirements and reduces equipment disassembly/cleaning time.

3. Automotive Tire Molds：The gun-type laser head cleans residual rubber in mold gaps. Pulsed mode controls energy output to prevent mold wear, improving tire yield and shortening maintenance cycles.

4. Precision Metal Components：Cleans high-reflective materials (aluminum, copper alloys) efficiently with ≥42% electro-optical conversion, suitable for fine cleaning of electronic components and hardware accessories.

Frequent Questions

1. What scenarios are the two laser heads suitable for?

Gun-type for gap cleaning (e.g., molds); standard (Gaussian) for large areas; extended (parallel) for expanded cleaning range.
2. How to activate the lock function and extend usage time?

Enable the custom lock function, then get remote authorization to extend usage, requiring device parameter control support.
3. Can it clean high-reflective materials? How effective is it?

Yes, it cleans high-reflective materials easily with 1064nm wavelength and 2mJ pulse energy, removing stains without substrate damage.
4. What happens if ambient temperature exceeds 45℃?

It’s recommended to use within -15~45℃; over-temperature may trigger protective shutdown, requiring heat improvement before restart.
