L4-Level Autonomous Unmanned Logistics Tractor | 5000-30000kg Load Factory/Airport Transport Auto Coupling 3cm Precise Docking Fast Charging

Unmanned Logistics Tractors include two models: T05E and the T30W Overseas Version, both equipped with L4-level autonomous driving capability, designed for cargo transportation in industrial scenarios. Integrating LiDAR, DGPS and other sensors, they support automatic start/stop, obstacle avoidance, hitching/unhitching, and intelligent dispatching. They can operate 24/7 and achieve front-end docking accuracy of ≤3 cm, providing an efficient solution for fully unmanned logistics processes in factories, parks, and overseas airports.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • T-Series

1. L4-level true unmanned operation, cost reduction and efficiency improvement: Both models are equipped with L4-level autonomous driving capability, requiring no safety officer in the entire process, and can independently complete path planning and trailer hitching/unhitching. For example, the T30W Overseas Version can tow 30,000 kg of cargo unmanned, reducing labor costs and avoiding human operation errors in industrial scenarios.

2. All-weather multi-environment adaptation, breaking limitations: They support 24/7 continuous operation and are not affected by harsh weather. The T05E has a maximum no-load climbing capacity of 30% to adapt to factory ramps, and the T30W Overseas Version adapts to high and low temperatures through a battery management system, meeting the operational needs of industrial workshops, outdoor parks, and other scenarios.

3. High-precision positioning + wide load coverage, adapting to diverse needs: Front-end docking accuracy reaches 3 cm, meeting precise loading and unloading requirements; the T05E has a maximum traction of 5,000 kg for small and medium-sized factories, while the T30W Overseas Version handles 30,000 kg for heavy airport cargo transportation, covering different industrial transport needs.

4. Intelligent monitoring and dispatching, ensuring transportation efficiency: The backend monitors vehicle and trailer status in real time, and the T30W Overseas Version additionally supports independent card-swipe authority management; the remote operation and maintenance platform enables precise dispatching, combined with acoustic and visual battery alarms, reducing industrial logistics downtime.

5. Flexible energy supplement design, adapting to continuous operations: The T05E supports fast charging + battery swapping (only 70 minutes from 10% to 80%), and the T30W Overseas Version can be fully charged via DC fast charging in 4 hours. Combined with a no-load range of 100–110 km, it supports 24-hour continuous transportation in industrial scenarios and avoids operational interruptions due to energy replenishment.

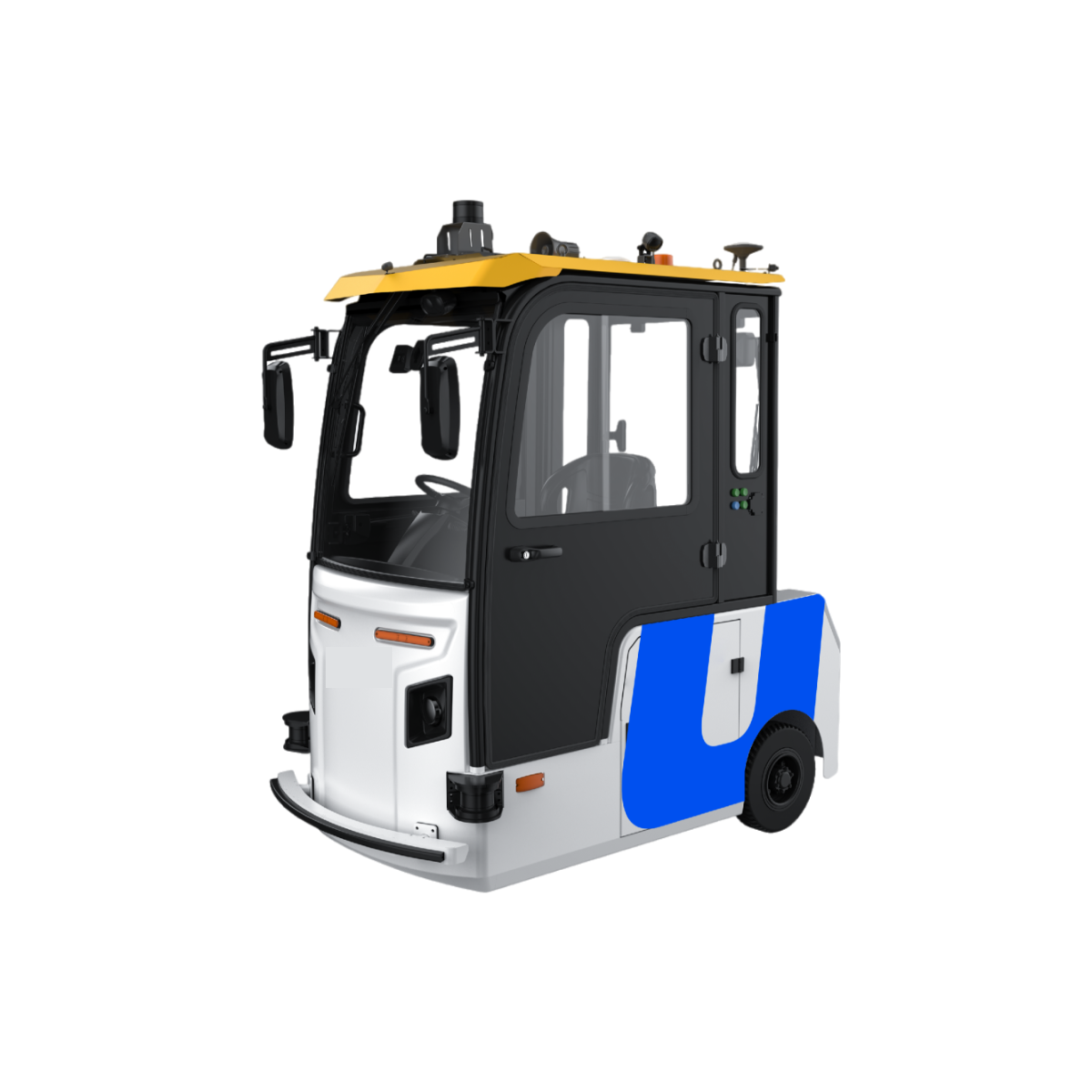

1. T05E Technical Parameters

Overall Dimensions (mm): 2184(L) × 1162(W) × 2251(H)

Vehicle Mass (kg): 1390

Maximum Towing Mass (kg): 5000

Travel Speed (km/h): 15 (no-load) / 10 (full-load)

Maximum Climbing (no-load): 30%

No-load Range (km): 100

Battery Type: Lithium Iron Phosphate (LiFePO₄)

Rated Battery Voltage (V): 80

Charging Method: Fast Charging + Battery Swapping

Charging Time: 70 min (10%-80%), 100 min (10%-100%)

Sensor Device: LiDAR / Camera / DGPS / Collision Sensor / IMU

Core Optional Functions: Automatic Hitching/Unhitching, Real-time Status Display

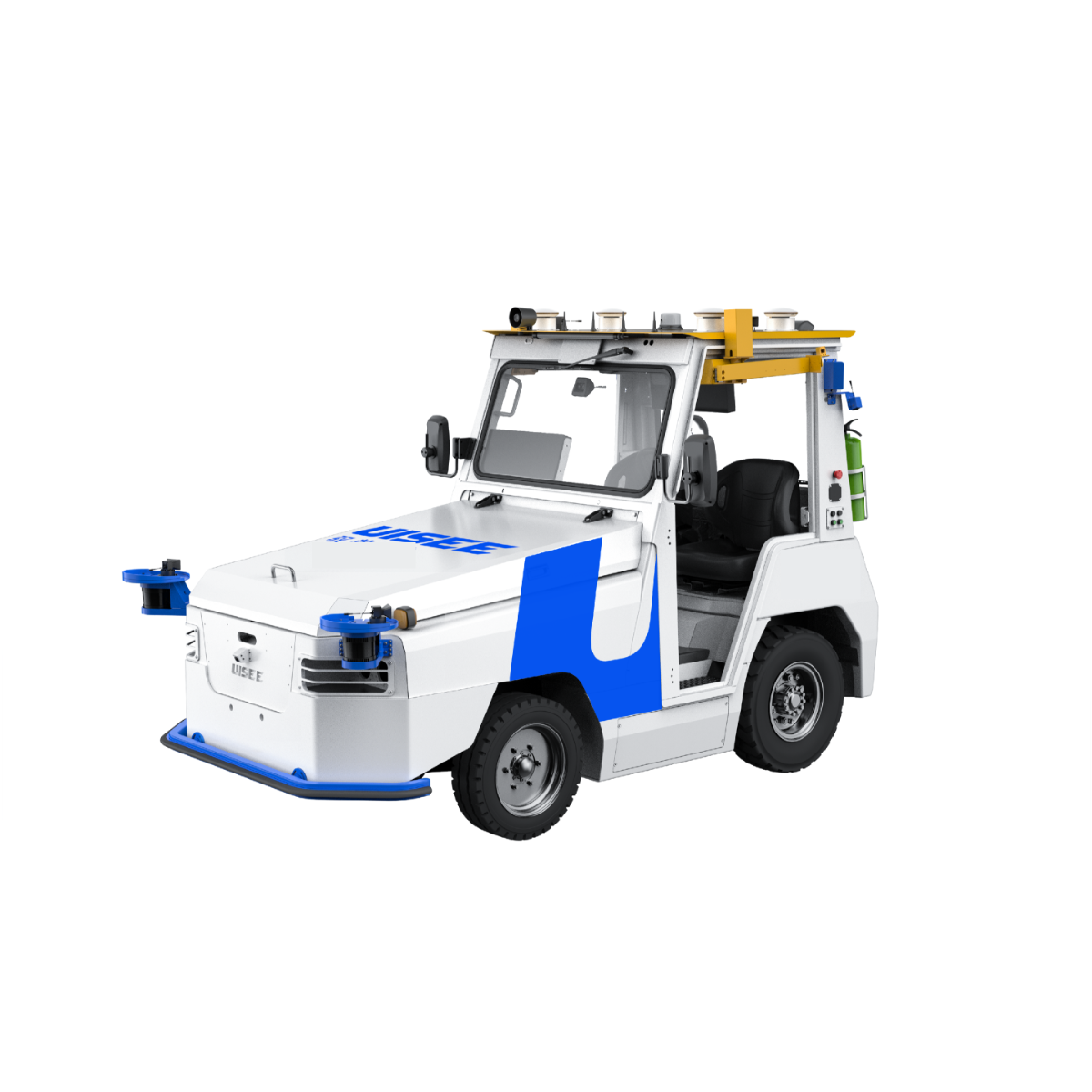

2. T30W Overseas Version Technical Parameters

Overall Dimensions (mm) (without hitching/unhitching device): 3161(L) × 1954(W) × 2077(H)

Vehicle Mass (kg): 4300

Maximum Towing Mass (kg): 30000

Travel Speed (km/h): ≤25

Maximum Climbing (no-load): 20%

No-load Range (km): 110

Battery Capacity (kWh): 60

Charging Method: DC Fast Charging (European Standard)

Charging Time: 4h (10%-100%)

Sensor Device: LiDAR / Camera / DGPS

Core Optional Functions / Components: Functions: Automatic Charging / Automatic Hitching/Unhitching; Optional Components: Doors, LED Display


1. Cargo Transfer in Small and Medium-sized Factories: The T05E is suitable for small and medium-sized factories, handling cross-workshop transportation of raw materials and semi-finished products. With a maximum no-load climbing capacity of 30%, it can cope with factory ramps, and its 5,000 kg traction capacity meets standard industrial requirements. Unmanned operation improves transportation efficiency by 30% and reduces labor costs.

2. Overseas Airport Logistics Operations: The T30W Overseas Version is used in airport cargo terminals and baggage halls. With a high load of 30,000 kg, it can transport multiple pieces of baggage or large cargo at once. Its 25 km/h speed meets airport timeliness requirements, and front-end docking accuracy of 3 cm reduces loading and unloading delays, ensuring smooth airport logistics.

3. Warehousing Transportation in Industrial Logistics Parks: Both models are suitable for indoor and outdoor transfer within industrial parks. The T05E’s compact size allows it to navigate narrow passages, while the T30W Overseas Version handles heavy cargo. Intelligent dispatching enables multi-vehicle collaboration, improving warehouse turnover efficiency and avoiding confusion from manual dispatching.


Frequent Questions
  • 1. Can the T05E operate in narrow factory passages?
    Created with Sketch.
    形状 Created with Sketch.
    The T05E has a compact size (2184 mm × 1162 mm) and flexible turning, allowing it to navigate narrow factory passages.
  • 2. Is the T30W Overseas Version stable in high and low temperature environments?
    Created with Sketch.
    形状 Created with Sketch.
    Equipped with a battery management system, it maintains reliable performance in both high and low temperatures, adapting to multi-climate operations in overseas airports.
  • 3. Do both models support multi-vehicle collaborative dispatching?
    Created with Sketch.
    形状 Created with Sketch.
    Both models support precise dispatching through the remote operation and maintenance platform, enabling multi-vehicle collaboration and improving industrial logistics efficiency.
  • 4. Can the T05E’s energy supplement adapt to continuous factory operations?
    Created with Sketch.
    形状 Created with Sketch.
    It supports fast charging and battery swapping, reaching 10%-80% in just 70 minutes, allowing rapid energy replenishment to support 24-hour operations.
