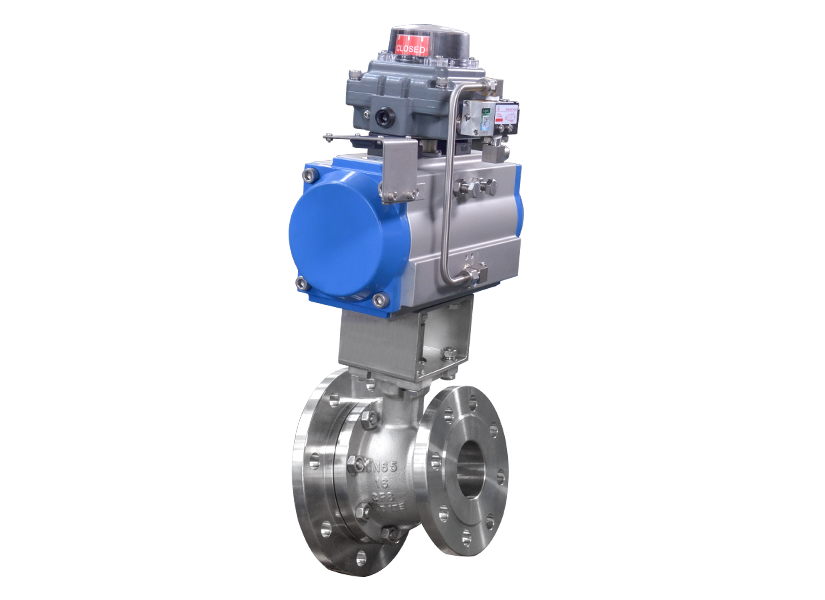

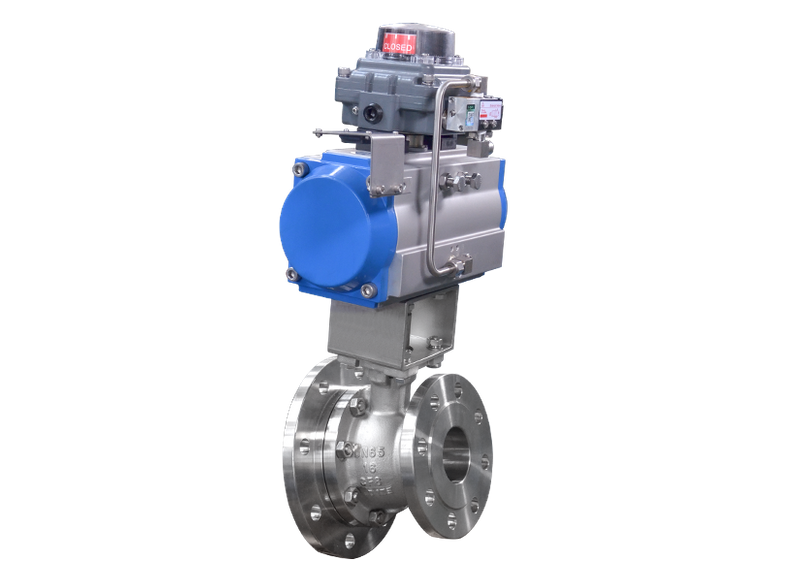

GS
Precision Investment Casting Process (Lost-wax method for superior dimensional accuracy)
Full-Bore Design (Minimized pressure drop, maximum flow capacity)
High-Mount Direct Installation:
Adjustable concealed gland (Packing adjustment without actuator removal)
Optional bracket and drive shaft configurations
Fire-Safe Construction (API 607/ISO 10497 compliant)
Anti-Static Device (API 6D compliant, resistance <10 ohms)
Anti-Blowout Stem (Meets API 6D Section 8.2)
Pressure Auto-Relief System (Prevents cavity overpressure)
15° Inclined Stem with 90° Actuator Mounting (Eliminates tank bottom interference)
Advanced Seat Materials:
Imported non-metallic compounds (Multiple grades available)
Temperature resistance up to 220°C
Leakage Rate: Zero leakage (API 598 Class VI)
End Connections: RF/RJ/FM flanges (ASME B16.5)
