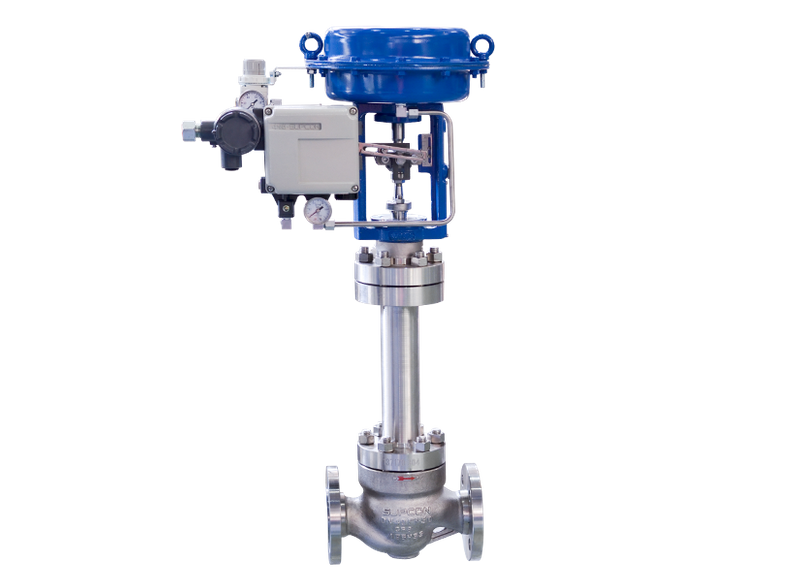

LN81W Series Bellows Seal Control Valve

The LN81W/82 series bellows-sealed single-seat control valves are enhanced versions of the standard LN81/82 series non-pressure-balanced control valves, incorporating an additional bellows sealing mechanism. These valves feature a pressure-resistant, flexible stainless steel bellows assembly integrated within the bonnet and connected to the valve stem, forming a dual sealing system with the packing to completely eliminate potential external leakage of process media.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • LN81W

Designed for modulating (throttling) services with low pressure differentials, specifically handling:

  • Toxic media (e.g., hydrogen sulfide, phosgene)

  • Flammable/explosive fluids (e.g., LNG, benzene)

  • Highly volatile compounds (e.g., chlorine, ammonia)

  • Precious/rare metal process streams (e.g., gold cyanide solutions, platinum catalysts)


Nominal Diameter: DN15 ~ DN300
Nominal Pressure: PN16/25/40/63/100; CL150(PN20)/300(PN50)/600(PN110)
Operating Temperature: -45℃ ~ 350℃
Flow Characteristics: Equal Percentage, Linear, Quick Opening
Turndown Ratio: 50:1
Leakage Class: ANSI B16.104: IV, V, VI
Body Material: WCB/WCC/LCB/LCC; WC6/WC9; CF8/CF8M; 4A/5A, etc.
Trim Material: 630/316/316+ST/316 Nitriding/316+Ni60/316+WC, etc.
Packing Material: PTFE + Graphite V-Ring Packing, Flexible Graphite Ring Packing, Graphite + PTFE Braided Packing, etc.

1. Control of highly toxic/hazardous chemicals

Chlorine production (processing of liquid chlorine, chlorgase)

Production of pesticides/pharmaceutical intermediate products (phosgen, cyanides and other highly toxic media)

Semiconductor industry (special gases: high -sized ammonia, silania, etc.)

Purpose: accurate control of the consumption or pressure of hazardous chemicals to prevent leaks.


2. Flammable and explosive gases/liquids

Petrochemistry (benzene, ethylene, liquefied oil gas)

LNG terminals (cryogenic methane, ethane)

Hydrogen production and transportation systems

Purpose: regulation of pressure in pipelines or supply to reactors for flammable media.


3. High -sized and sterile processes

Biopharmaceuticals (production lines of vaccines, sterile drugs)

Food industry (high water water, enzymatic solutions)

Electronic classes of chemicals (ultra -puffy acids, solvents)

Appointment: maintaining the purity of the environment and preventing external pollution.
