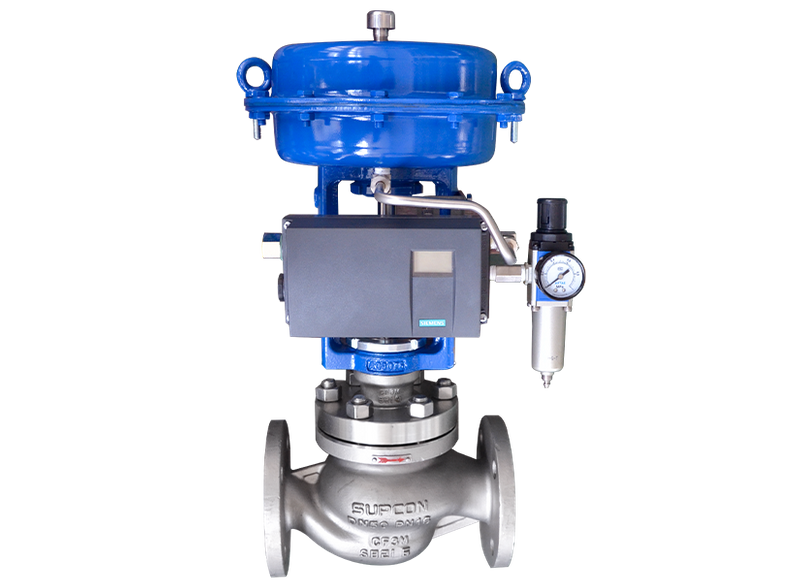

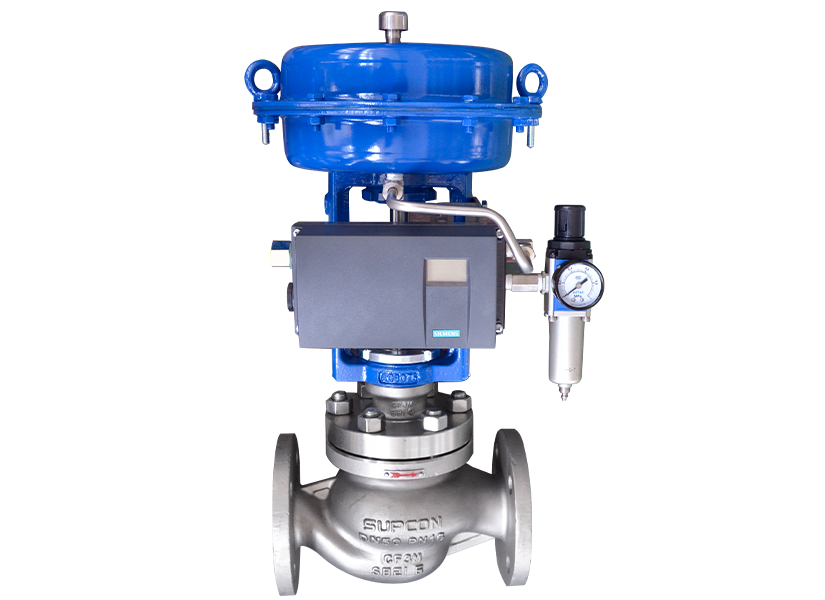

LN82
Modular Design Philosophy: Combines Japanese/American precision control technology with German modular engineering principles.
Optimized Flow Path: S-shaped body cavity with smooth contours and integrated guide vanes minimizes turbulence and cavitation.
Streamlined Construction: Reduced internal cavities prevent media crystallization/clogging.
Top-Guided Plug: Ensures stable stem alignment during operation.
Floating Seat Design: Tapered sealing surface maintains perfect coaxiality.
Precision Flow Control: Contoured plug profile delivers accurate characteristic curves.
Selectable Flow Characteristics: Equal percentage, linear, or quick opening.
Extended Temperature Range: -196°C to 593°C with specialized configurations.
Leakage Class Compliance:
Hard seats: Class IV/V per GB/T 17213.4/IEC 60534-4
Quick-opening/soft seats: Class VI
End Connections:
Flanged: RF/RJ/FM (ASME B16.5)
Welded: SW/BW (ASME B16.25)
Face-to-Face Dimensions: GB/T 17213.3/IEC 60534-3-1 or ISA S75.03
