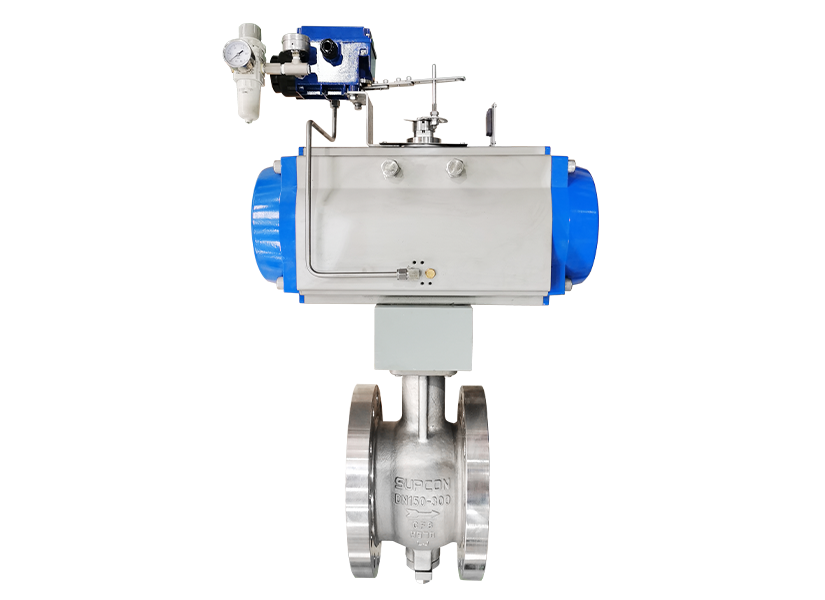

VN6 Series V-Port Ball Valve

The VN6 series features a partially spherical V-notched ball core that delivers near-equal percentage flow characteristics, functioning as an angular stroke control valve where the V-notched core rotates against the sealing surface at low openings to regulate fluid flow. This innovative design significantly expands the flow turndown ratio while, when paired with specially engineered sealing seats featuring unique elastic lip structures, provides exceptional shearing and anti-clogging performance for fibrous and particulate-laden media. These capabilities make it particularly suitable for control systems requiring wide turndown ratios, as well as for handling fiber-containing fluids and slurry-type media.

Quantity:
Availability:





Inquire Add to Basket

Model:
VN6
Brand:
SUPCON

The plug and stem are connected via splines, ensuring excellent alignment stability, minimal torque loss, dead zone avoidance, and high regulation accuracy;
Dual bearing support for upper/lower stems provides self-lubrication and stable plug rotation, preventing valve seizure;
The seat features wave spring preload for self-compensating sealing, with modular design enabling high/low-temperature online replacement;
Extended-length seat design protects the upper body flow path from erosion, significantly extending service life;
Floating elastic-compensation soft sealing pair increases sealing specific pressure through media force for reliable performance;
Easy installation, removal, and maintenance;
Seat leakage rates:
• Hard-sealed V-ball valves meet ANSI B16.104 Class V
• Soft-sealed V-ball valves comply with ANSI B16.104 Class VI.
