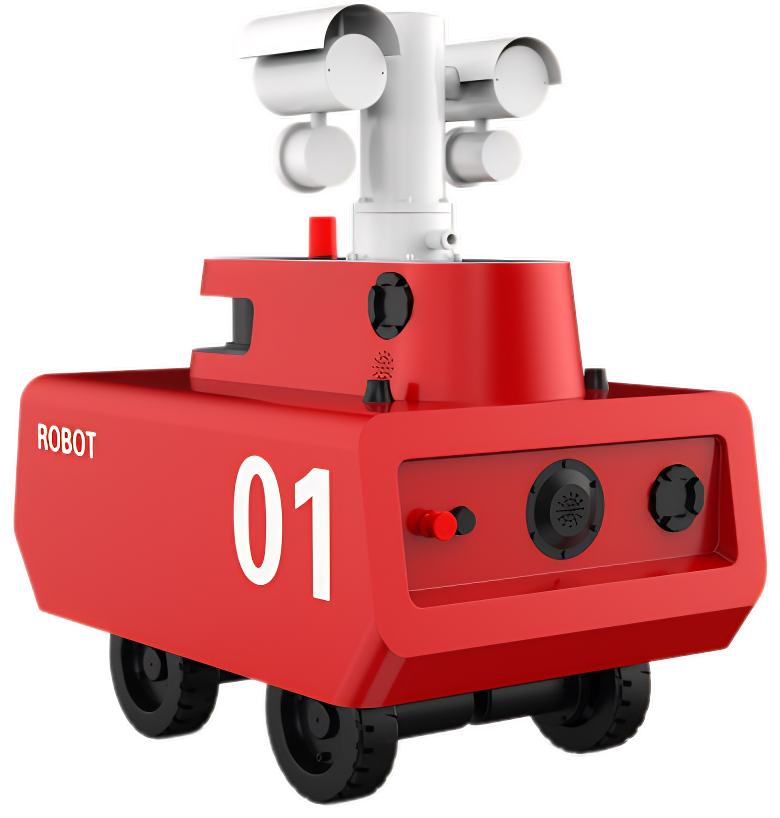

Outdoor Wheeled Robot SUP-WR-100

SUP-WR-100​ is an ​industrial-grade wheeled inspection robot, specifically engineered for ​all-weather, large-scale industrial applications. With a ​200kg weight capacity​ and ​IP65 protection rating, it supports ​15° climbing, 10cm obstacle clearance, and 100mm wading depth, making it adaptable to ​complex industrial environments.

Equipped with ​multi-sensor fusion positioning (3D LiDAR + IMU)​, it achieves ​high-precision autonomous inspection​ across ​2000m×2000m areas, ideal for tasks such as ​meter reading, partial discharge detection, and equipment condition monitoring​ in ​substations, electrical rooms, and similar settings.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • SUP-WR-100

All-Terrain Mobility: Stable operation on gravel, slopes, and shallow water


Smart Detection: Dual-mode visible light/IR recognition with 5-hour endurance


Data Loop: Auto-generates inspection reports + real-time anomaly alerts


Size: 864mm×578mm×830mm

Weight: 87kg

Speed: 1.5m/s

Detection scope: Pan range 0~360°; Tilt range -90°~90°

Exercise ability: Climbing angle: 15° Maximum obstacle crossing; height: 100mm; Water wading depth:100mm

Localization/Obstacle Avoidance Method: Multi-sensor fusion positioning with 3D laser radar, IMU, odometer and other sensors.

LCD Screen: None

Inspection area: Max.2000m *2000m

Protection level: IP55

Operating mode: Complete inspection, special inspection, manual inspection, night inspection, and network outage inspection.

Endurance time: 5h


1. All-Weather Industrial Site Inspection

Substations & Electrical Rooms:

Autonomously performs infrared thermography of high-voltage equipment, partial discharge detection, and meter reading recognition, eliminating the need for manual high-risk operations.

Petrochemical Plant Areas:

Operates with explosion-proof certification to conduct pipeline flange leak detection and valve status monitoring.


2. Complex Terrain Adaptive Operations

• Inspection of open-pit mining conveyor belt corridors

• Post-flood emergency site assessment
