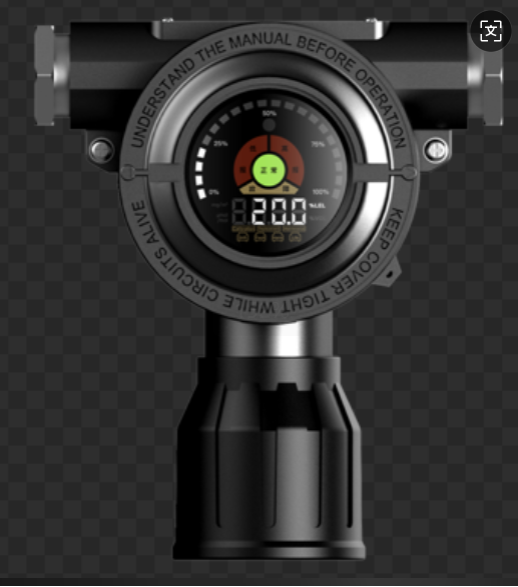

Gas detector D610

Detective gases:

Toxic and dangerous gases (NH₃, H₂S, CO, etc.);

Flying organic compounds (los) and pairs (for example, benzene).

Measurement range: determined depending on the requirements.

Detection principle: electrochemical / pid / semiconductor.

Measurement accuracy: ± 3% of the full scale (FS).

Repeatability: ≤ ± 2%.

Response time: depends on the gas and type of sensor.

Long -term stability: ± 1% fs/month.

Sensor service life:

Electrochemical: 2 years;

Semiconductor: 2 years;

PID: 5 years (excluding wear of the lamp and electrodes).

(The actual period depends on the operating conditions).

Explosion protection level: EXDIB IIS T6 GB / EX TD IBD A21 IP66 T80 ℃.

Defense degree: IP66.

Max. Energy consumption: ≤3 tt.

Communication interface: 4–20 mA.

Work voltage: 24 V DC.

Relay outputs:

2 normally open (no) relay: 3 a / 125 V AC or 3 A / 30 in DC;

1 normally open (No) active contact: 100 mA / 24 V DC.

Visual indication: color LED display.

Working temperature: -40 ℃ ~ +70 ℃.

Moisture range: 10–95% RH (without condensation).

The pressure range: 86 kPa ~ 106 kPa.

Building material: aluminum alloy / stainless steel SS316L.

Electric interfaces:

2 × NPT 3/4 ', M25 × 1.5, G3/4 (F) (adapters on request).

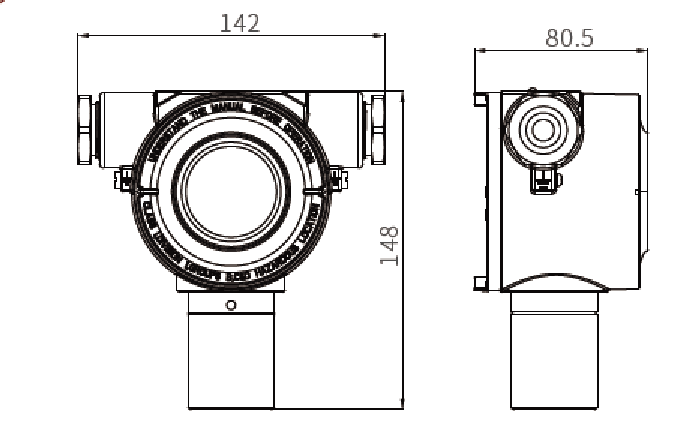

Dimensions: 148 mm × 142 mm × 80.5 mm.

Weight:

~ 1.7 kg (aluminum alloy);

~ 2.2 kg (stainless steel SS316L).
