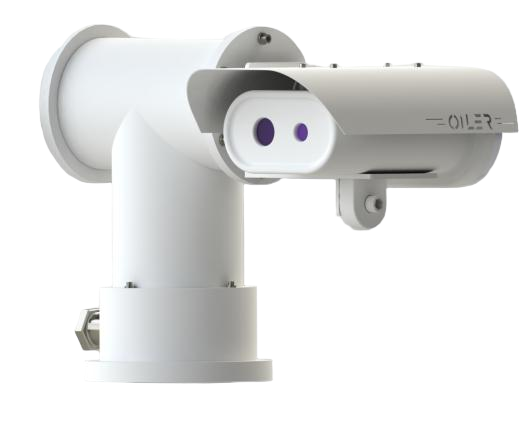

OE-GM650PT-EX Methane Monitoring Pan-Tilt System

1. The rotation range of the pan-tilt is 0-360° horizontally and ±90° vertically

2. Rotational accuracy: 0.1°

3. Infrared resolution: 384×288(upgradable to 640×512)

4. Visible light resolution: 3280×2464

5. Power supply: AC220V

6. Power: 40W

7. Dimensions: 500×320× 422mm

8. Weight: 23kg

9. The network supports 5G/4G/WiFi/ Ethernet.

1. Dynamic tracking of LNG terminal loading and unloading arms

The 360° gimbal scans the leaked gas cloud and locates the leakage points at the loading and unloading interfaces with 0.1° accuracy, reducing the time spent on manual inspection by 80%

2. Intelligent rotational patrol in oil and gas field well clusters

Preset 12 cruise paths, complete the scanning of 10 well locations within 5 minutes, and automatically generate a leakage heat map

3. Panoramic monitoring of chemical pipeline racks

A 1-kilometer pipeline can be fully scanned within 10 minutes, with AI marking high-risk corrosion points, and maintenance efficiency has been increased by 3 times

4. Gas diffusion monitoring on offshore platforms

The stainless steel pan-tilt is resistant to salt spray corrosion and can track the methane drift path in real time, increasing the efficiency of accident source tracing by 6 times.
