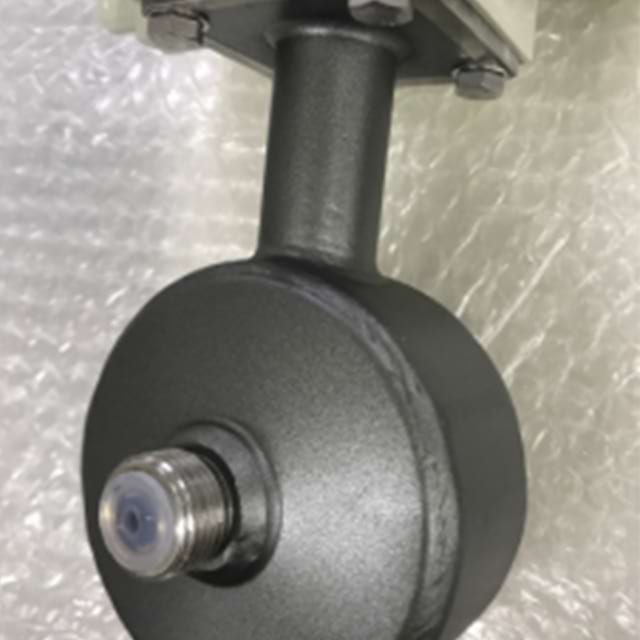

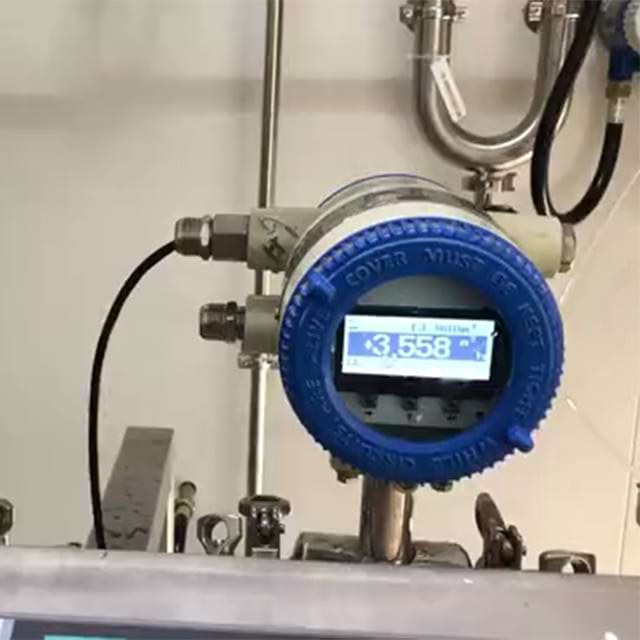

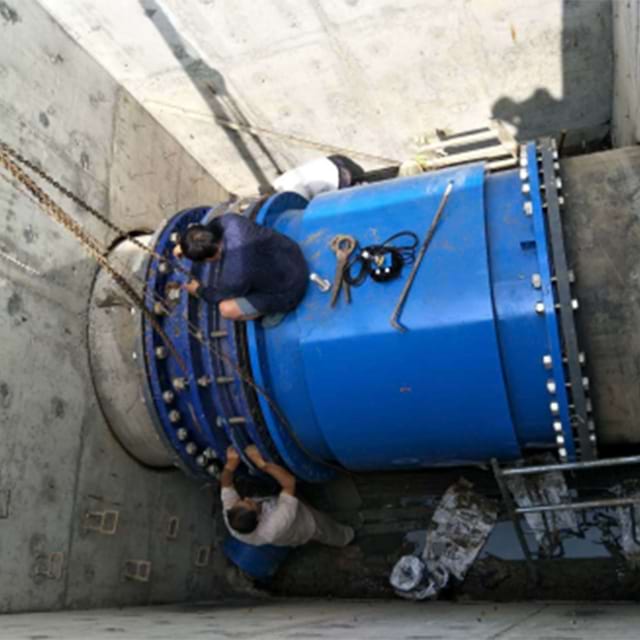

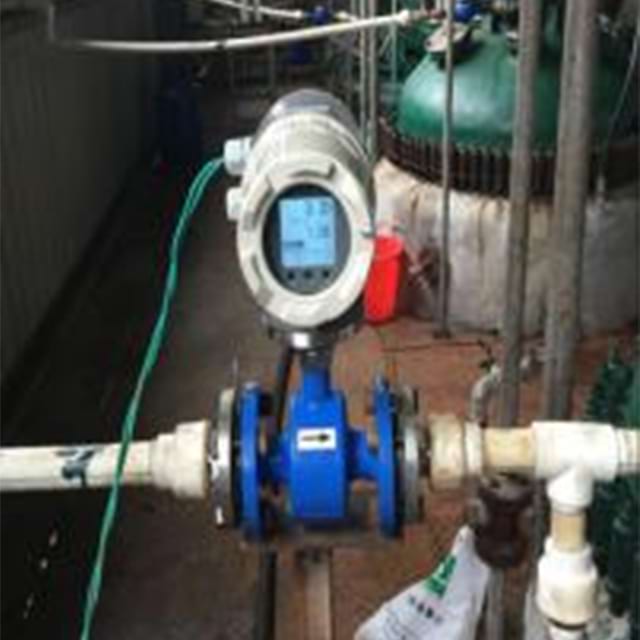

Electromagnetic Flow Meter

The electromagnetic flow meter consists of two main components - the sensor and the converter, and works on the basis of the law of electromagnetic induction of the pharasey to measure the consumption of electrical conductive fluids.

Quantity:
Availability:





Inquire Add to Basket

Model:
Electromagnetic Flow Meter

1. Pocrated for measuring the consumption of any electrical conductive liquids (specific electrical conductivity> 5 μs/cm), including:

Drinking water
Wastewater
Sludge suspensions
Pulp masses

2. High stability to:

Aggressive environments
Abrasive substances

3. The double -destructive expense measurement (direct/reverse direction)

4. Design features:

Lack of narrowing devices
Zero pressure losses
Clothing resistance

5. Support for wireless interfaces:

GPRS
Bluetooth
Supported industrial protocols:
Modbus
Hart

6. The dialog of measurements:

Minimum measured consumption from 2 l/h

7. Technical characteristics:

Stability of work
High repeatability of results
Measurement accuracy up to 0.2%

Video about the product

ASU TP Regulatory valves Flowmeter Oil&Gas Petrochemical Pipeline

*Verify Code

Corresponding Product

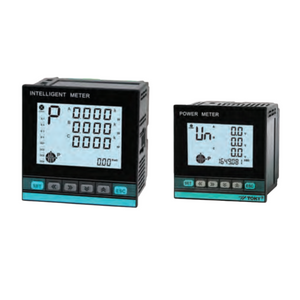

Three-phase Intelligent Power Meters, User-friendly, Power-off Protection

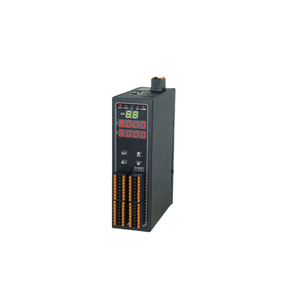

Multi-loop Acquisition and Control Module, Compatible with multiple protocols

OE-GM650PT-EX Methane Monitoring Pan-Tilt System

OE-GM650-EX Fixed Methane Monitor

CL-1 Ultrasonic Gas Flowmeter

S750 alarm controller

Alarm controller M670

Gas detector D610

(infrared) Detector of combustible and commercial gases GTQ-D610

(catalytic) Detector of combustible and commercial gas gases GTQ-D610C

Metal pipe rotameter (SF 20)

Vortex flow meter

Intellectual Caliber-Communistant (SUPX600)

Smart Pressure Transmitter(CXT)

Caliber DN (mm)	Measure the consumption (m '/h)
10a	0.03	0.05	0.06	0.08	0.1	0.12	0.16	0.2	0.3	0.4	0.5	0.6	0.7	0.8	1.0
10	0.1	0.16	0.2	0.25	0.3	0.4	0.5	0.6	0.8	1	1.2	1.6	2.0	2.5	2.8
15	0.2	0.4	0.5	0.6	0.8	1.0	1.2	1.6	2.0	2.5	3.0	4.0	5.0	6.0	6.3
20	0.4	0.6	0.8	1.0	1.2	1.6	2.0	2.5	3.0	4.0	5.0	6.0	8.0	10	11.3
25	0.6	1.0	1.2	1.6	2.0	2.5	3.0	4.0	5.0	6.0	8.0	10	12	16	17.7
32	0.9	1.6	2.0	2.5	3.0	4.0	5.0	6.0	8.0	10	12	16	20	25	28
40	1.4	2.5	3.0	4.0	5.0	6.0	8.0	10	12	16	20	25	30	40	45
50	2.1	4.0	5.0	6.0	8.0	10	12	16	20	25	30	40	50	60	70
65	4	6	8.0	10	12	16	20	25	30	40	50	60	80	100	120
80	6	10	12	16	20	25	30	40	50	60	80	100	120	160	180
100	8	16	20	25	30	40	50	60	80	100	120	160	200	250	280
125	13	25	30	40	50	60	80	100	120	160	200	250	300	400	440
150	19	40	50	60	80	100	120	160	200	250	300	400	500	600	630
200	34	60	80	100	120	160	200	250	300	400	500	600	800	1000	1100
250	53	100	120	160	200	250	300	400	500	600	800	1000	1200	1400	1600
300	76	160	200	250	300	400	500	600	800	1000	1200	1600	1800	2000	2500
350	100	200	250	300	400	500	600	800	1000	1200	1600	2000	2200	2500	3000
400	140	250	300	400	500	600	800	1000	1200	1600	2000	2500	2600	3000	4000
450	170	300	400	500	600	800	1000	1200	1600	2000	2500	3000	3600	4000	5000
500	210	400	500	600	800	1000	1200	1600	2000	2500	3000	3600	4000	5000	7000
600	310	500	600	800	1000	1200	1600	2000	2500	3000	3600	4000	5000	6000	10000

Caliber DN (mm)	Measure the consumption (m '/h)
10a	0.03	0.05	0.06	0.08	0.1	0.12	0.16	0.2	0.3	0.4	0.5	0.6	0.7	0.8	1.0
10	0.1	0.16	0.2	0.25	0.3	0.4	0.5	0.6	0.8	1	1.2	1.6	2.0	2.5	2.8
15	0.2	0.4	0.5	0.6	0.8	1.0	1.2	1.6	2.0	2.5	3.0	4.0	5.0	6.0	6.3
20	0.4	0.6	0.8	1.0	1.2	1.6	2.0	2.5	3.0	4.0	5.0	6.0	8.0	10	11.3
25	0.6	1.0	1.2	1.6	2.0	2.5	3.0	4.0	5.0	6.0	8.0	10	12	16	17.7
32	0.9	1.6	2.0	2.5	3.0	4.0	5.0	6.0	8.0	10	12	16	20	25	28
40	1.4	2.5	3.0	4.0	5.0	6.0	8.0	10	12	16	20	25	30	40	45
50	2.1	4.0	5.0	6.0	8.0	10	12	16	20	25	30	40	50	60	70
65	4	6	8.0	10	12	16	20	25	30	40	50	60	80	100	120
80	6	10	12	16	20	25	30	40	50	60	80	100	120	160	180
100	8	16	20	25	30	40	50	60	80	100	120	160	200	250	280
125	13	25	30	40	50	60	80	100	120	160	200	250	300	400	440
150	19	40	50	60	80	100	120	160	200	250	300	400	500	600	630
200	34	60	80	100	120	160	200	250	300	400	500	600	800	1000	1100
250	53	100	120	160	200	250	300	400	500	600	800	1000	1200	1400	1600
300	76	160	200	250	300	400	500	600	800	1000	1200	1600	1800	2000	2500
350	100	200	250	300	400	500	600	800	1000	1200	1600	2000	2200	2500	3000
400	140	250	300	400	500	600	800	1000	1200	1600	2000	2500	2600	3000	4000
450	170	300	400	500	600	800	1000	1200	1600	2000	2500	3000	3600	4000	5000
500	210	400	500	600	800	1000	1200	1600	2000	2500	3000	3600	4000	5000	7000
600	310	500	600	800	1000	1200	1600	2000	2500	3000	3600	4000	5000	6000	10000
