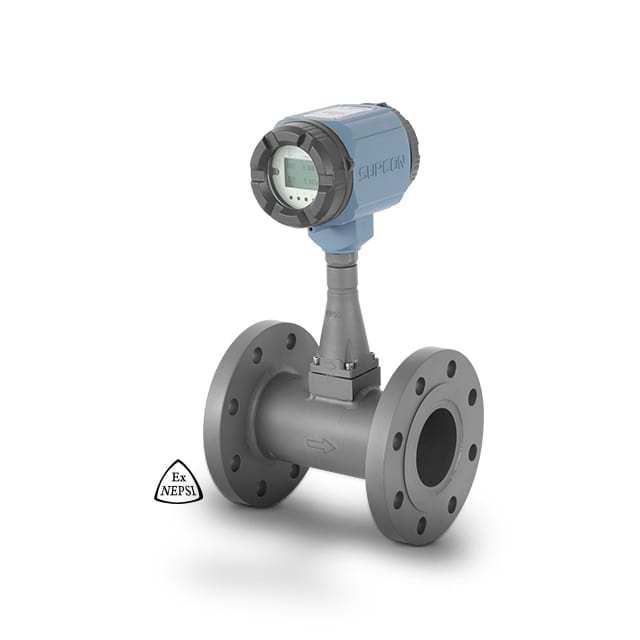

Vortex flow meter

A vortex flow meter is a high -speed device for measuring the consumption, which has a wide sphere of application. It is suitable for measuring and monitoring the flow of liquids, steam and most gases.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

The advantage of the product

1. Sensor technology with a continuous stream for high temperatures - measurement up to 420 ° C.

2. Integrated temperature-pressure compensation.

3. The vibration-resistant structure (hardware and software) is up to 1.5G stability.

4. Compression coefficient compensation for natural gas and other gases.

5. Special function of commercial accounting for heat supply systems.

6. Universal output signals (support for all types of signals).


Video about the product



The temperature of the mediumLUGB pipeline type ： (-40 ~ 150) ℃、 (-40 ~ 260) ℃、 (-40 ~ 320) ℃、 (-40 ~ 420) ℃
LUCB of a cutting type ： (-40 ~ 150) ℃、 (-40 ~ 200) ℃
Environmental conditionsEnvironmental temperature ： (-20-60) ℃ Conventional execution    (-20 ~ 40) ℃ explosion-proof execution
Relative Humidity ： (5 ~ 95)%rh
Atmospheric Pressure ： (86 ~ 106) KPA
The degree of protectionIP65 (IP67/IP68 are available as agreed)
Explosiveness classMOA, Explosion -Protective type
The level of explosion protectionSparkling execution 、 explosive performance
Corps materialStainless Steel
Communication interfaceRS-485 Modbus RTU,  HART


Types of product use

1. Industrial control of processes

• Petrochemical: measurement of the consumption of technological gases, liquefied gas, light hydrocarbons.

   Corrosion -resistant materials (for example, Hasstell alloy) for aggressive environments.

• Chemical industry: monitoring of acids, alkalis, solvents. The selection of lining is required (for example, PTFE).

• Pharmaceuticals/food industry: hygienic execution (TRI-CLAMP compounds) for pure liquids (water, drug solutions, syrups).

2. Energy and housing and communal services

• Steam: measurement of saturated and overheated steam (boiler rooms, heating networks) with temperature-pressure compensation.

• Gas: Commercial accounting of natural gas and LNG (ATEX explosion protection is required).

• Water treatment: control of the consumption of source and flip water. For large pipelines - high accuracy at low speeds.

3. OVKV and construction

• Ventilation/air conditioning: optimization of energy consumption through monitoring of the consumption of refrigerant and coolant.

• Heat supply: the distribution of flows in the heating systems and accounting of energy consumption.

4. Special environments and conditions

• High temperatures/pressure: steam up to 400 ° C (CHP), compressed gases (for example, air).

• Corrosion media: electrodes/lining from tantalum, titanium.

• Vibrations: sensitivity to pipes vibrations - installation away from pumps/valves or the use of dampers.



Frequent questions
  • 1. Why does a vortex flow meter require special installation conditions?
    加 Created with Sketch.
    形状 Created with Sketch.
    Typical installation problems:
    • Insufficient straight sections (10D to and 5D after the consumption where D is the diameter of the pipe) → Measurement error.
    • Vibrations (for example, from pumps or compressors) → Distortion of the vortex signal.
    • Incomplete pipe (for liquids) → Incorrect indications.

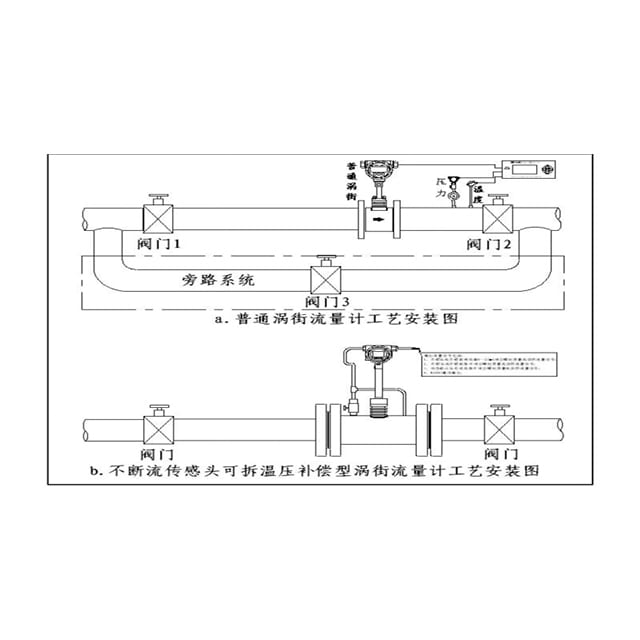

    Installation rules:
    ✅ Horizontally (recommended for gas/pair).
    ✅ Vertically (for liquids, from the bottom up to ensure complete filling).
    ✅ Far from the sources of vibration (you can use damping supports).
  • 2. The testimonies are unstable or jumping? How to solve?
    加 Created with Sketch.
    形状 Created with Sketch.
    • Vibrations of the pipeline → Install the damper or change the installation site.
    • Stream pulsation (for example, at the outlet of the pump) → Increase damping time or set the buffer container.
    • Gas bubbles in liquid → Add air vent.
    • Too low consumption (below the minimum range) → Set the smaller diameter or select another type of flow meter.
