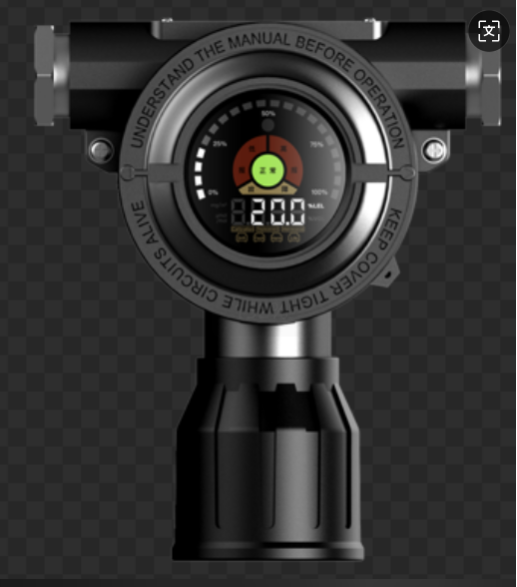

(catalytic) Detector of combustible and commercial gas gases GTQ-D610C

GTYQ-D610C gas gas detector for industrial and commercial use, complies with the new standard GB15322.1-2019, is equipped with an imported catalytic sensor with protection against poisoning and temperature compensation technology. The device is characterized by ease of operation, ease of maintenance and clear indication at a distance, which makes it ideal for complex industrial environments with high requirements, such as oil and gas, chemical, energy industries and gas facilities.
Main features:
Intellectual sensors with hot replacement are pre -installed calibration parameters.
Bright color LED indication is clear visibility even in bright light and at a large distance.
The output signal is 4-20 mA-complies with the industrial standard.
Explosion -proof structure - certified according to the standards of explosion safety (sparkling execution and protection of the species 'Explosive use of').
Management without opening the case is an infrared remote control of the remote setting up parameters.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Imported catalytic sensor with poisoning protection;

Accurate detection of standard combustible gases;

Intellectual sensor with hot replacement and preinstalled calibration parameters;

Simple maintenance without frequent calibration;

Nickelized surface coating and the labyrinth design of the intake hole - ensure the rapid response time and the increased service life of the sensor;

A sparkling design with hot replacement support is convenient for mass calibration, maintenance and replacement in place;

Standard performance: aluminum alloy with epoxy; Optionally - stainless steel with Teflon coating.


Detective gases: combustible gases, hydrogen, etc.

Detection principle: catalytic principle

Measurement accuracy: ± 3% of the full scale (FS)

Response time: t90 <15 sec.

Long -term stability: ± 1% fs/month

Sensor service life: 2 years (the actual period depends on operating conditions)

Explosion protection level: EXDIB IIS T6 GB / EX TD IBD A21 IP66 T80 ℃

Defense degree: IP66

Max. Energy consumption: ≤3 tt

Communication interface: 4–20 mA

Work voltage: 24 V DC

Relay outputs:

2 normally open (no) relay: 3 a / 125 V AC or 3 A / 30 in DC

1 normally open (No) active contact: 100 mA / 24 V DC

Visual indication: color LED display

Working temperature: -40 ℃ ~ +70 ℃

Moisture range: 10–95% RH (without condensation)

Pressure range: 86 kPa ~ 106 kPa

Corps material: aluminum alloy / stainless steel SS316L

Electric interfaces:

2 × NPT 3/4 ', M25 × 1.5, G3/4 (F) (adaptation of adapters to order is possible)

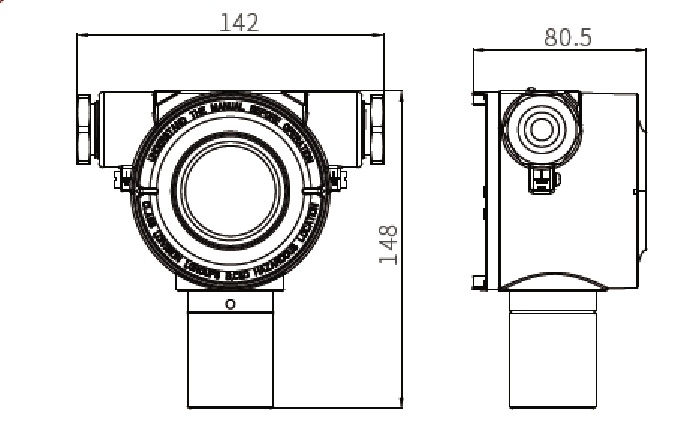

Dimensions: 148 mm × 142 mm × 80.5 mm

Weight:

~ 1.7 kg (aluminum alloy)

~ 2.2 kg (stainless steel SS316L)


Oil, chemicals, gas, electricity


Frequent questions
  • 1. What types of gases can this detector detect?
    加 Creed with Sketch.
    形状 Creed with Sketch.
    The GTQ-D610C is designed to detect combustible gases, such as methane (ch), propane (C₃H₈), hydrogen (H₂), etc. A specific list of detected gases depends on the configuration of the sensor-before the purchase, clarify the operating conditions.
  • 2. What to pay attention to when installing a detector?
    加 Creed with Sketch.
    形状 Creed with Sketch.
    • Installation site:
    Place the device next to potential sources of leakage (joints of pipes, valves) in a well -ventilated area.
    Avoid zones with high temperature, humidity or strong electromagnetic exposure.
    Installation height:
    Correct gas density (for example, for methane, lighter than air - closer to the ceiling; for propane, heavier than air - closer to the floor).
    Protection:
    The device has an IP66 protection degree, suitable for external and internal industrial use.
  • 3. How to carry out calibration and maintenance of a detector?
    加 Creed with Sketch.
    形状 Creed with Sketch.
    • Calibration frequency:
    It is recommended that they be calibrated every 6 months using reference gas.
    Regular service:
    Clean the surface of the sensor from dust, check the integrity of the connections, avoid oil pollution or aggressive substances.
    Diagnostics of faults:
    In case of abnormal triggering, use the self -diagnosis function or contact the manufacturer's technical support.
Previous:
Next:
ASU TP Industrial software Electronic kip Regulatory valves Industrial devices and robots
Request to goods
Verify Code
Corresponding Product
CL-1 Ultrasonic Gas Flowmeter
CL-1 Ultrasonic Gas Flowmeter
S750 alarm controller
S750 alarm controller
Alarm controller M670
Alarm controller M670
Gas detector D610
Gas detector D610
(infrared) Detector of combustible and commercial gases GTQ-D610
(infrared) Detector of combustible and commercial gases GTQ-D610

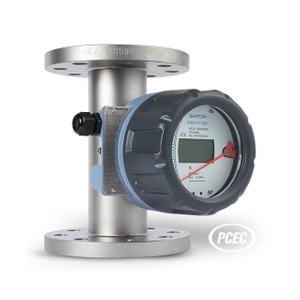

Metal pipe rotameter (SF 20)
