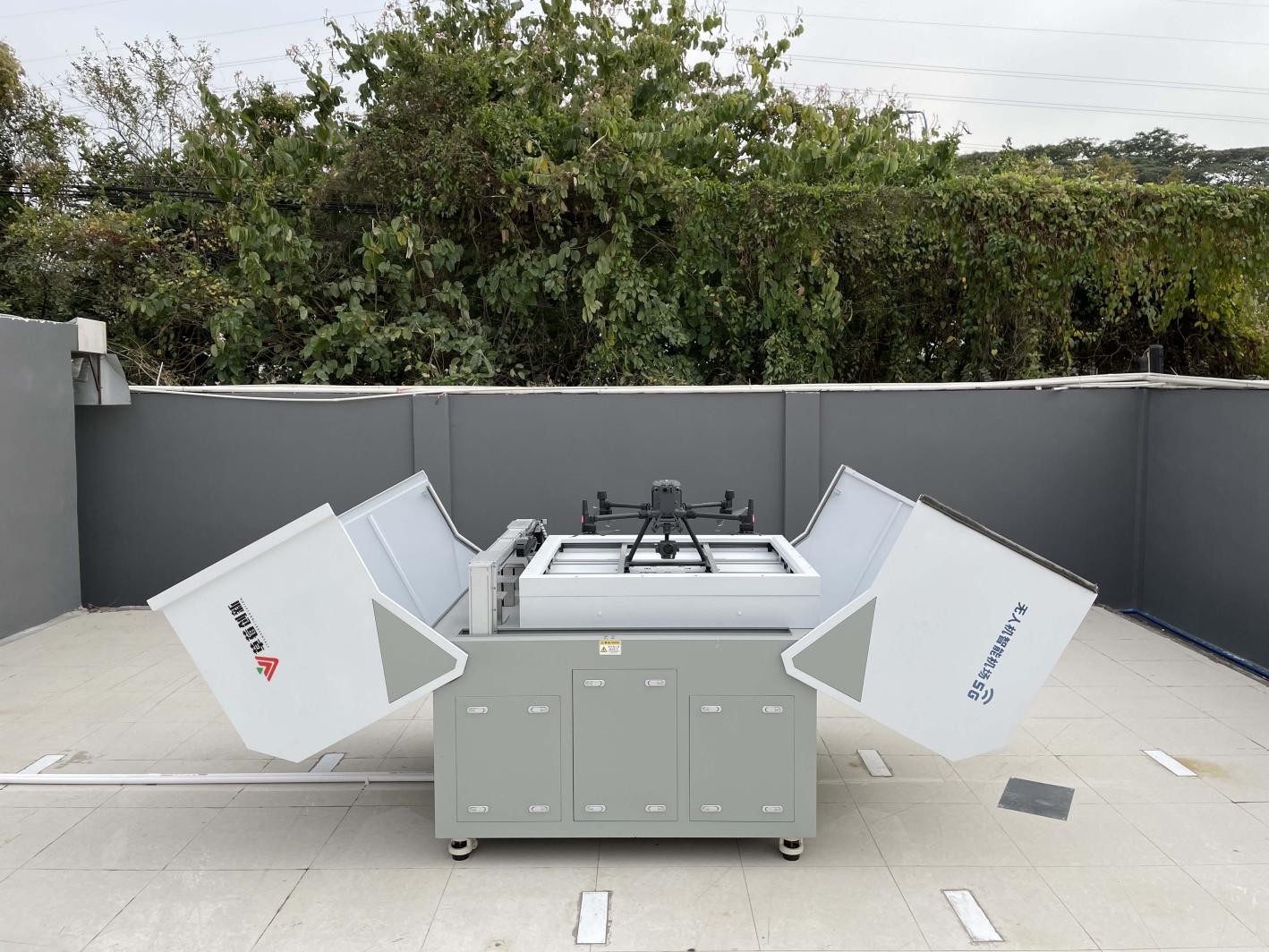

Automatic take-off UAVs (SP-D-DP1)

SP-D-DP1 Drone Automatic Airport with Control System​ is an autonomous drone operation platform specifically designed for industrial inspection, emergency monitoring, and intelligent security applications. This integrated solution features automated drone takeoff/landing, charging, data management, and remote mission dispatch capabilities, while supporting multi-airport collaborative operations (with jump-flight functionality) to significantly enhance drone operation efficiency and coverage while reducing manual intervention costs.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • SP-D-DP1

• Modular design: collapsible installation structure for quick deployment and movement

• Thermoregulation: industrial thermal control (-20 ° C ~ +50 ° C) for stable operation

• Interference protection: compatibility with all GNSS systems + double RTK antenna for accurate positioning

• Wide coverage: Action radius up to 15 km (with the possibility of expansion up to 10 km/departure in the  'flight between points ')

• Reliability: IP55 protection level, double positioning system for difficult conditions

• Savings: Optimization of costs due to the joint use of infrastructure by several drones


1. Industrial monitoring:

Examination of energy facilities (power lines, substations)

Control of oil and gas and chemical enterprises

Industrial infrastructure inspection


2. Auroral response:

Operational deployment in emergency zones

Transmission of video and telemetry in real time

3D cartography of distress zones


3. Intellectual safety:

Perimeter monitoring of urban zones

Patrolling large industrial sites

Detection of violators with IR cameras (up to 5 km)


Dimensions:

In a folded state: 1.3m × 1.1m × 1.2m

In working condition: 2.8m × 1.1m × 1.2m

Weight:

Charging version: ~ 220 kg

Defense degree: IP55

Positioning system:

RTK Basic station with double antenna

Support for all basic navigation systems:

BDS (Beidou)

GPS

GLONASS

Galileo

QZSS

SBAS


UAV compatibility:

DJI M350 RTK:The distance between the axes of the engines: 895 mm (symmetric)

Weight: 678 ± 5 g

Compatible suspensions:

Zenmuse XT2

Zenmuse XT S.

Zenmuse Z30

Zenmuse H20

Zenmuse H20T
