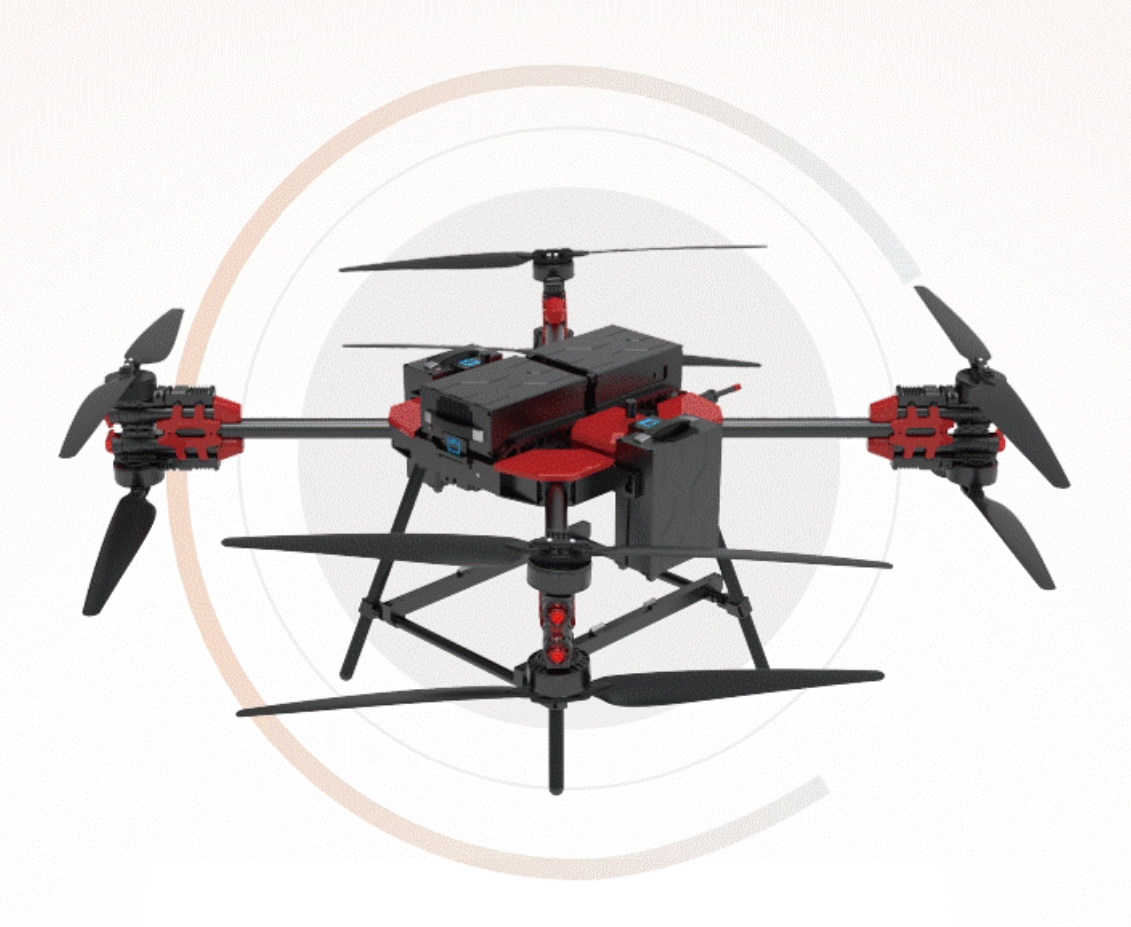

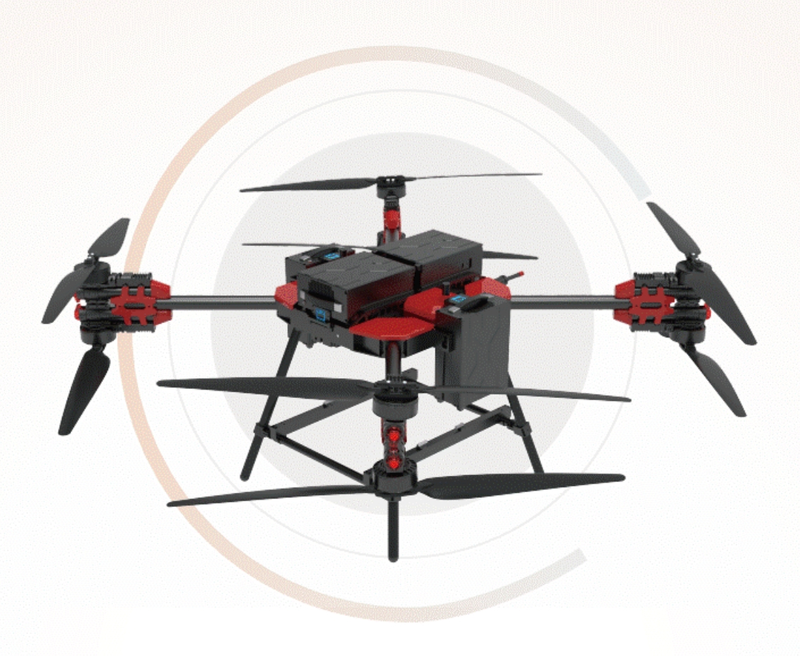

SP-D-MV15
Specially developed for:
• Emergency fire extinguishing
• Intelligence and search and rescue operations
• Delivery of goods
The system supports the quick replacement of modules to adapt to difficult conditions and multi -purpose tasks.
Supported modules:
Raising the cargo, a cargo container, a gyro-stabilized camera, a loudspeaker, emergency rescue and fire modules.
Cargo transportation system
• Lifting module:
The carrying capacity of 80 kg, the smell descent (manual/car), automatic release of cargo when touching the earth.
Functions: emergency shutdown, weighing of cargo.
• Cargo container:
Volume 350 liters, carrying capacity 90 kg. Weight indication, warning about overload, fast replacement.
Intelligence and guidance system
• Hyro -stabilized camera:
Visible spectrum (1920 × 1080, 10 × optical zoom) + thermal imager (640 × 512, 8 × digital zoom).
Functions: Setting through goals, laser range finder (1400 m), interference protection.
• Loudspeaker:
Sound pressure 120 dB@10 m, gear range 1 km, remote control.
Emergency rescue system
• Reset modules:
4 fastening points, gravitational discharge. Support for masks, fire extinguishers, etc.
• Starting system:
Horizontal launch (solid fuel accelerator), volume of 10 liters for delivery of goods to high -rise buildings.
Fire system
• Dry -abroad/water system (under pressure):
The volume of fire extinguishing substance is 30 l/60 liters, a range of 10–13 m. Effective in rooms up to 500 m³.
• Discarded fire extinguishers:
Weight 30 kg/50 kg, discharge height 10 m/12 m, coating area 16 m/20 m. Triggers: Timer/thermal sensitive.
• Water system:
Consumption 1200 l/min, sleeves 40/50 mm, work height of 120 m. Emergency discharge during a break.
Accurate control and security
• Remote control with a laser target designator for opening windows and positioning.
• Multi -level protection (electronic discards, fire modules).
Adaptability to scripts
The system quickly switches the modules for working in emergencies, rescue operations and logistics, providing flexibility in extreme conditions.
