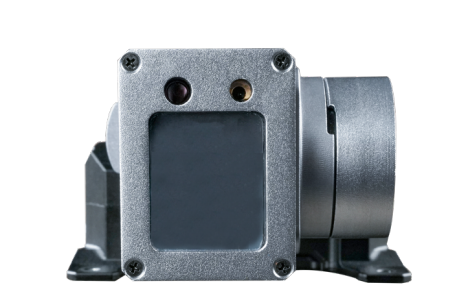

Laser methane telemeter (SP-D-LC5)

The SP-D-LC5 laser methane detector, based on TDLAS technology (spectroscopy of absorption with a rebuilt diode laser), carries out contactless detection of methane by analyzing characteristic CH4 absorption lines in the near infrared range (1.65 microns). The device quantitatively measures the concentration of methane in the target zone due to the absorption of laser radiation with a certain wavelength by gas, ensuring operational monitoring of the level of methane in the controlled area.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • SP-D-LC5

1. Best -contact detection - excludes the need to enter the personnel into hazardous areas, ensuring the safety of work.


2. General sensitivity and selectivity - reacts only to methane without the influence of other gases, which minimizes false works.


3. The efficiency in difficult conditions - a laser beam penetrates through vegetation, snow cover and other obstacles, which allows the device to use the device in the areas of permafrost and dense forests.


4. Little work and quick deployment - compatible with the UAV, allowing to examine several kilometers of pipelines in one departure, significantly increasing the effectiveness of the inspection.


1. Industrial monitoring:

Examination of energy facilities (power lines, substations)

Control of oil and gas and chemical enterprises

Industrial infrastructure inspection


2. Auroral response:

Operational deployment in emergency zones

Transmission of video and telemetry in real time

3D cartography of distress zones


3. Intellectual safety:

Perimeter monitoring of urban zones

Patrolling large industrial sites

Detection of violators with IR cameras (up to 5 km)


Determined gas: methane (ch)

Dimensions: 65 × 56 × 82 mm

Weight: 245 g

Measurement range: 0–99 999 ppm · m

Detection range: 0-50 m

Sensitivity: 5 ppm · m

Response time: 25 ms

Error: ± 10%
