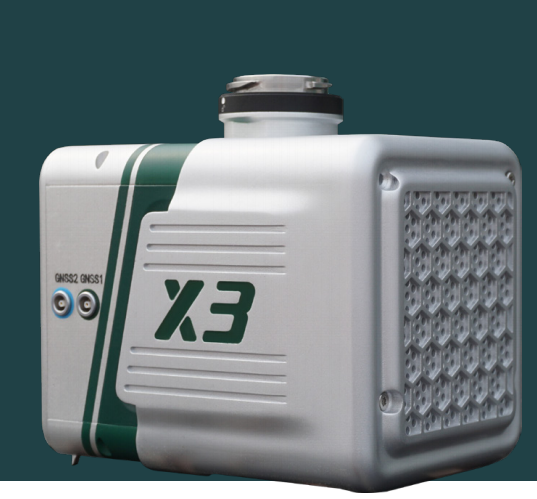

New generation laser system for light UAVs (SP-D-LD22)

A new generation SP-D-LD22 laser system for UAVs is a fully integrated solution that combines a high-precision cartographic chamber and a high-performance EDGE-platform for data processing. The system is equipped with an intellectual Airpilot algorithm for an autonomous relief flight in real time, and complete with software Greenvalty Assistant offers customers a comprehensive hardware and software solution for aerial photography.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • SP-D-LD22

1. Compact ergonomic design

A whole design with a minimalistic interface

Single -button control with indication

Simplified interaction with the operator


2. Mounting camera with excellent image quality

Built -in high -precision cartographic chamber 26 MP (improved version)

Generation of a color cloud of points and high -resolution orthoplans


3. Integration with Greenvalley Assistant

Real Time mode: visualization of points cloud, setting up parameters, monitoring of the state

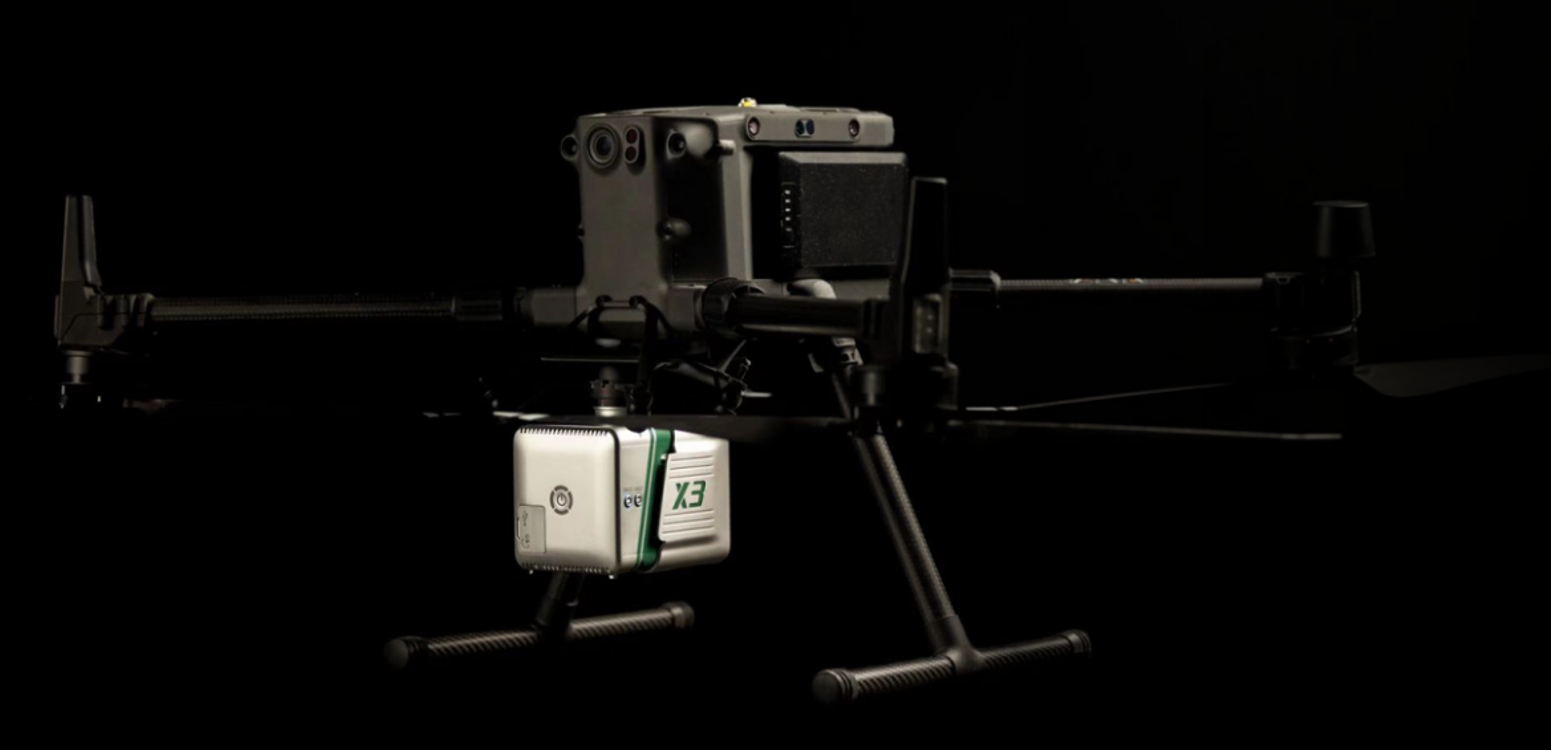

Compatibility with remote controls DJI M300/M350 RTK

Full control over the shooting process


4. Relief flight in real time

Automatic DSM generation according to Lidar

Adaptive change in height without preliminary relief data

Accurate observation of the circuit of the area


5. Work without the base station

GreenVally CloudTrail technology provides centimeter accuracy

Refusal to use external base stations


1. Monitoring of power lines - an inspection of power lines and energy facilities with the identification of dangerous rapprochement of vegetation

2. Fairy farming - taxation of plantings, detection of windmills and foci of forest diseases

3. Topographic survey - the creation of digital relief models with an accuracy of 5 cm


Measurement range:

190 m @ 10% reflective ability

450 m @ 80% reflective ability

Accuracy (in height): 5 cm @ 70 m

Working height: 120 m (typical)

Speed: 5-10 m/s (typical)

Mass: 1.25 kg

Memory: 256 GB (TF card)

Power voltage: 12–24 V, 0.9 A @ 24 in post. current

Power consumption: 22 watts

Working temperature: –20 ...+50 ° C

Dimensions: 136 × 106 × 129 mm
