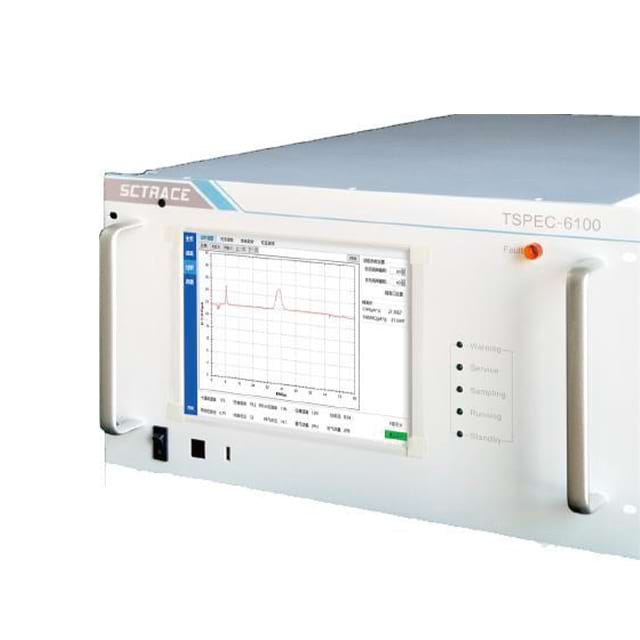

TSPEC-6100-THC
The advantage of the product
High-precision pressure of the pressure with the accuracy of control ± 0.1 kPa.
The thermal installation system of the FID detector provides the temperature stability of ± 0.1 ° C.
Monitoring characteristics:
Response time <1 s
Sample update <10 s
A miniature FID detector with a reduced dead volume and high sensitivity.
A built -in industrial computer with configured interface and sensory control for convenient operation.
Measurement range: 0-100,000 PPM (wide dynamic range).
Product operating manual
Requirements for installation and connection:
Analysis of installation conditions:
Power supply: 220 ± 10 in alternating current
Working temperature range: [specify the values]
Moisture Requirements: [indicate values]
Dimensional sizes for installation
The parameters of the gas-carrier
Connection of gas lines:
All pipelines and connections are made in an inch standard 1/8 '
Electric connection:
Power is supplied to the connector 'Food ' on the rear panel of the analyzer
Voltage: 220 ± 10 V AC
Connection of signal lines:
Standard RS485 interface
Direct connection with the data registrar via sequential cable
Pre -launch check:
Visual inspection of the compounds
Checking gas lines
Control of power parameters
Checking the correctness of signal connections
Installation notes:
All connections must be performed by qualified personnel
It is recommended to use voltage stabilizer
It is necessary to provide free access for maintenance
Comply with explosion protection requirements when working in explosive zones
Video about the product
