Online Near-Infrared Rapid Composition Analyzer

Based on near-infrared (NIR) absorption spectroscopy, this analyzer enables non-destructive, rapid, and simultaneous multi-component quantitative analysis of industrial process samples. It is widely used in chemical, petrochemical, food, pharmaceutical, and grain/oil processing industries.

Features:
1. Ultra-fast analysis (completed within 1–2 minutes);
2. Simultaneous multi-component detection for high efficiency;
3. Modular design adaptable to various industrial setups.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

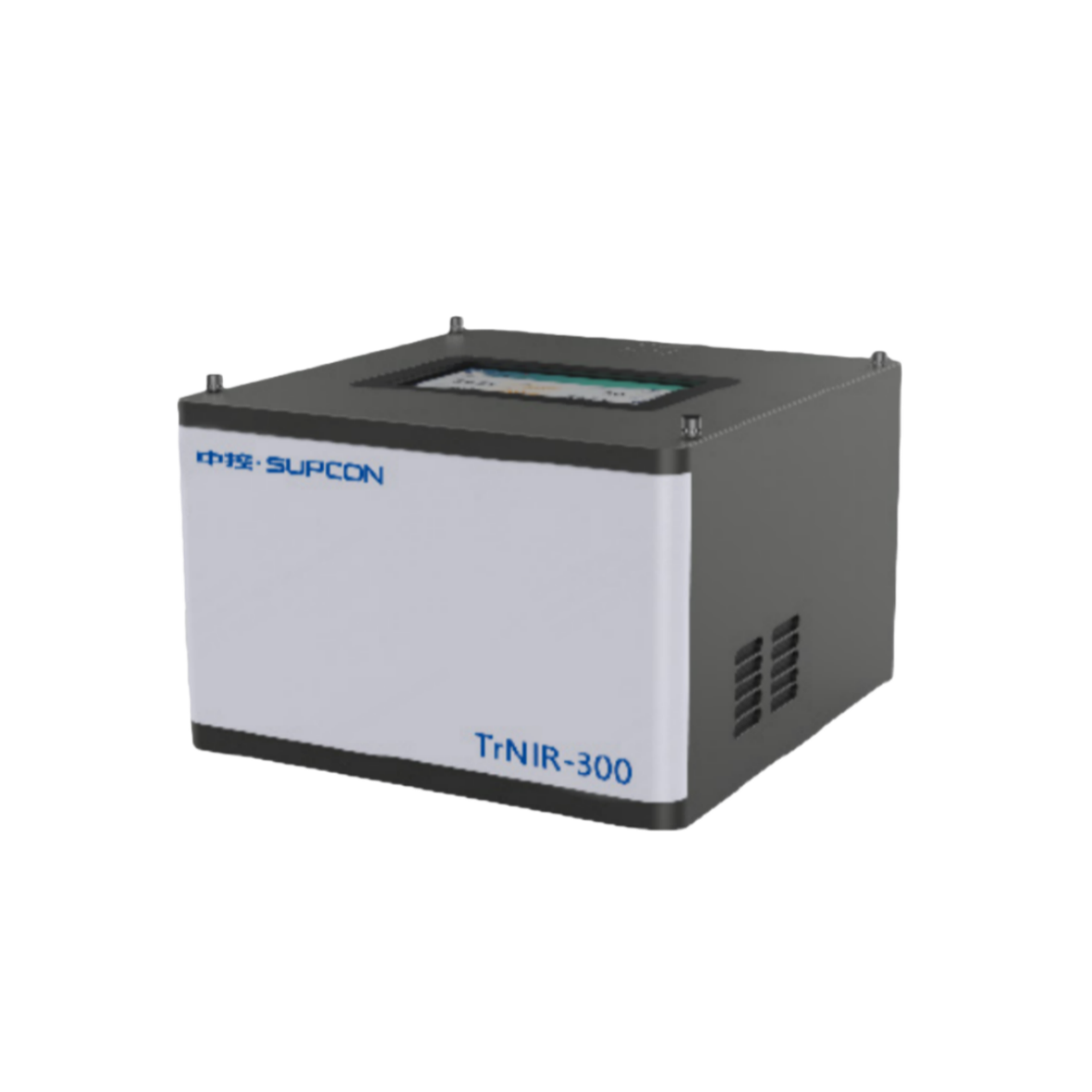

  • TrNIR-300

1.No sample preparation required—true real-time online analysis;

2.Built-in auto-calibration ensures long-term stability;

3.Multiple optical probe options for diverse installation needs;

4.Available in IIB/IIC explosion-proof enclosures for hazardous areas.


  1. Wavelength Range: 900–1700 nm (typically 950–1650 nm)

  2. Spectral Resolution: <16 nm

  3. Measurement Time: 0.1–60 seconds

  4. Detector: InGaAs (256-pixel)

  5. Operating Temperature: -30°C to +45°C

  6. Power Supply: (100–240) VAC, 50 Hz

  7. Dimensions: 310 × 340 × 210 mm

  8. Weight: 14 kg

  1. Real-time monitoring of active chlorine, free alkali, and H₂O₂ in fine chemicals

  2. Octane number, aromatic, and olefin content analysis in refined fuels

  3. Moisture, protein, and ash detection in grain and oil processing

  4. Active ingredient concentration tracking in traditional Chinese medicine extraction

  5. Fat and moisture variation monitoring in food production

Frequent Questions
  • 1. Is sample collection or destruction required?
    加 Created with Sketch.
    形状 Created with Sketch.
    No. The system uses non-contact transmission/reflection measurement—completely non-destructive.
  • 2. Can it be used in explosive environments?
    加 Created with Sketch.
    形状 Created with Sketch.
    Yes. Explosion-proof housings (IIB/IIC certified) are available for use in hazardous zones like refineries.
  • 3. Can users build their own calibration models?
    加 Created with Sketch.
    形状 Created with Sketch.
    Yes. The system supports offline model development, allowing users to create custom calibration models based on actual samples.
