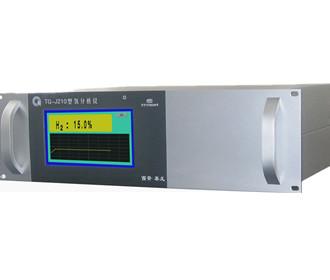

TG-J210 Hydrogen Analyzer

1.Measuring Range: (0.00~99.99)% (intermediate ranges optional, specify when ordering);

2.Maximum Permissible Error: ±2% FS;

3.Resolution: 0.01%;

4.Stability: Zero drift: ±2% FS/7d; Span drift: ±2% FS/7d;

5.Repeatability: ±1% FS;

6.Warm-up Time: ≤15 min;

7.Response Time: T90 ≤15 s;

8.Sample Gas Flow Rate: (300±10) mL/min;

9.Sample Gas Pressure: 0.05 MPa ≤ Inlet Pressure ≤ 0.25 MPa;

10.Analog Output: (4~20) mA standard signal;

11.Contact Output: Dual relay output 220 VAC, 1 A or 24 VDC, 2 A;

12.Operating Environment:

Temperature: -10℃ ~ +45℃;

Humidity: ≤90% RH;

13.Power Supply: (220±22) VAC, (50±5) Hz;

14.Dimensions: 480 mm (W) × 136 mm (H) × 370 mm (D);

15.Mounting Dimensions: 442 mm (W) × 134 mm (H);

1.Petrochemical Industry

Hydrogen concentration monitoring at reactor inlets/outlets of hydrogenation units

Recycled hydrogen purity analysis in reforming units (typical range 85-95%)

Process control for hydrogenation processes like styrene and PTA production

Hydrogen recovery monitoring in refinery off-gas

2.New Energy & Hydrogen Energy Industry

Product gas purity testing in water electrolysis hydrogen production systems (≥99.9%)

Fuel cell vehicle hydrogen quality monitoring (compliant with GB/T 37244)

Hydrogen concentration safety monitoring in hydrogen storage systems

Quality control during hydrogen storage/transportation at hydrogen refueling stations

3.Iron & Steel Metallurgy Industry

Gas composition analysis in hydrogen reduction ironmaking processes

Protective atmosphere (H₂/N₂ mixture) ratio control in annealing furnaces

Hydrogen concentration monitoring during silicon steel production
