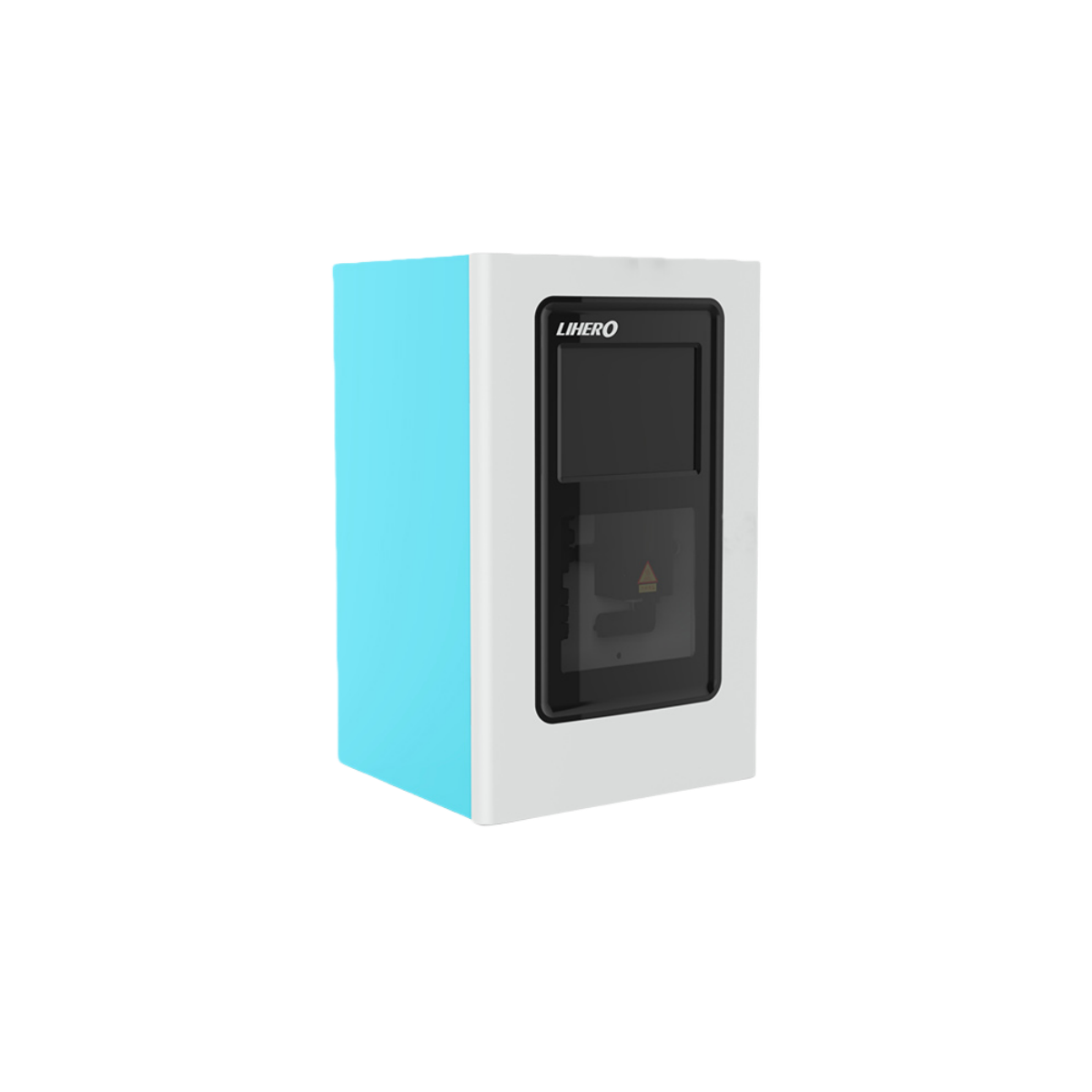

Sulfide Water Quality Analyzer, Online Monitoring System

This product is suitable for continuous monitoring of hydrogen sulfide content in emissions from electroplating and chemical plants, optimization of biological desulfurization in municipal wastewater treatment plants, traceability investigation of sulfide pollution sources in rivers/lakes, and early warning of sulfide anomalies in drinking water sources.

Features:​
1.High Precision and Stability:​ Repeatability error ≤5%, zero drift ±5%, ensuring data reliability.
2.Fully Automated Process:​ Integrated extraction, separation, and detection completed within ≤35 minutes.
3.Strict Reagent Management:​ Provide dedicated reagent configuration guidelines to ensure detection consistency (e.g., extractant transmittance >90%).
4.Built-in RS232/RS485 Interfaces:​ Enable remote reading of instrument operation status and relevant data.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • LFS-2002(S)

1.High Precision and Stability: Repeatability error ≤5%, zero drift ±5%, ensuring data reliability.

2.Fully Automated Process: Integrated extraction, separation, and detection completed within ≤35 minutes.

3.Strict Reagent Management: Provide dedicated reagent configuration guidelines to ensure detection consistency (e.g., extractant transmittance >90%).

4.Built-in RS232/RS485 Interface: Enable remote reading of instrument operation status and relevant data.

  1. Measuring Range: 0-20mg/L

  2. Accuracy: ±10%

  3. Repeatability: ≤5%

  4. Resolution: 0.001mg/L

  5. Detection Limit: ≤0.02mg/L

  6. Measurement Time: ≤30min

  7. Environmental Temperature Stability: ±10%

  8. Power Requirements: AC 220V±22V 50Hz

This product is suitable for continuous monitoring of hydrogen sulfide content in electroplating and chemical plant emissions, optimization of biological desulfurization in municipal wastewater treatment plants, traceability investigation of sulfide pollution sources in rivers/lakes, and early warning of sulfide anomalies in drinking water sources.

Frequent Questions
  • 1. What are the technical requirements for operators using this instrument?
    Created with Sketch.
    形状 Created with Sketch.
    The instrument features automated design, requiring only standard procedural operation for routine detection. However, reagent preparation and maintenance require professional training, and it is recommended that trained technical personnel perform these tasks.
  • 2. How to troubleshoot measurement deviations?
    Created with Sketch.
    形状 Created with Sketch.
    Follow these steps for troubleshooting:
    1. Check if reagents are expired or contaminated
    2. Perform instrument calibration and blank tests
    3. Check for blockages or leaks in the flow path
    4. Verify that the environmental temperature meets requirements (±10% stability range)
  • 3. What are possible causes for abnormal measurement results?
    Created with Sketch.
    形状 Created with Sketch.
    Potential causes include:
    1. Improper water sample pretreatment
    2. Reagent failure or contamination
    3. Optical system contamination
