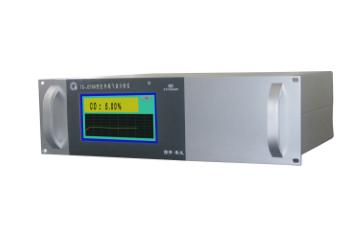

TG-J216 Infrared Gas Analyzer

1.Maximum Permissible Error: ±1% FS

2.Stability:

Zero drift: ±1% FS/7d;

Span drift: ±1% FS/7d;

3.Sample Gas Flow Rate: (500±10) mL/min;

4.Warm-up Time: ≤30 min;

5.Response Time: τ90≤20 s (when gas flows directly through the chamber);

6.Sample Gas Pressure: 0.05 MPa ≤ Inlet Pressure ≤ 0.25 MPa;

7.Analog Output: Multiple (4–20) mA standard signals;

8.Digital Output: Standard RS485 communication port for bidirectional computer communication; Ethernet port for WAN connection;

9.Contact Output: Dual relay output 220 VAC, 1 A or 24 VDC, 2 A;

10.Operating Environment:

Temperature: -15°C to +45°C;

Humidity: ≤90% RH;

11.Power Supply: (220±22) VAC, (50±5) Hz;

12.Dimensions: 480 mm (W) × 136 mm (H) × 370 mm (D);

13.Mounting Dimensions: 442 mm (W) × 134 mm (H);

14.Weight: Approx. 5.6 kg.

1.Industrial Process Monitoring

Petrochemicals: CO/CO₂ analysis in ethylene cracking furnace flue gas (Range: 0-10%)

Cement industry: CO (0-5000ppm) and SO₂ monitoring in kiln exhaust gases

Metallurgy: Blast furnace gas CO content analysis (Safety threshold <50ppm)

2.Environmental Monitoring

Stationary pollution source emission monitoring (CEMS systems)

Ultra-low emission monitoring (SO₂/NOx range: 0-100mg/m³)

Dioxin precursor detection in waste incineration flue gases

Fugitive emission monitoring at plant boundaries (VOCs detection)

3.Special Process Control

Food-grade CO₂ purity testing (beverage filling processes)

PFCs (perfluorocompounds) emission monitoring in semiconductor industry

Solvent residue monitoring in lithium battery production workshops
