Professional Thermal Imaging Camera Featuring aSi Microthermal Detector

Professional Thermal Imaging Camera Featuring aSi Microthermal Detector

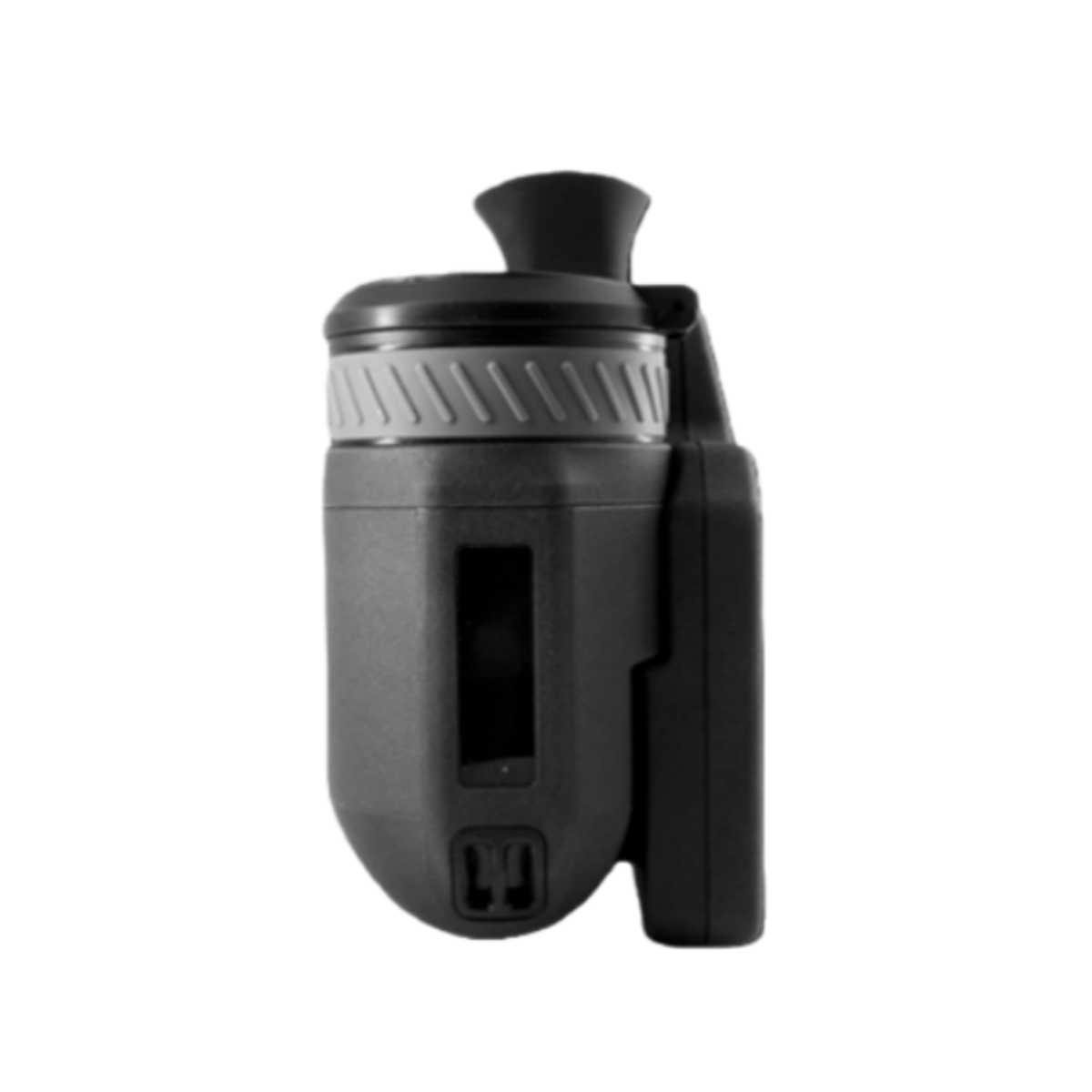

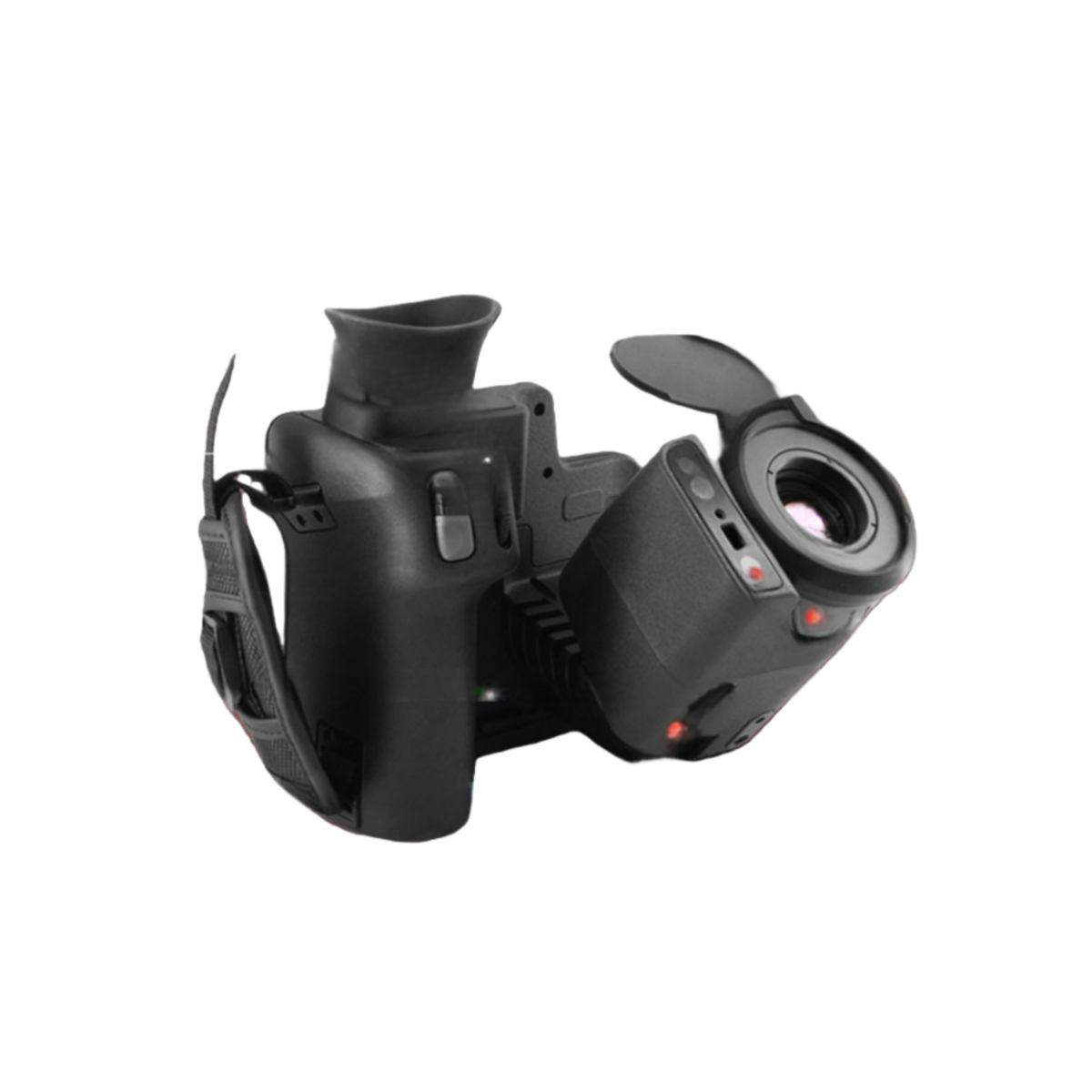

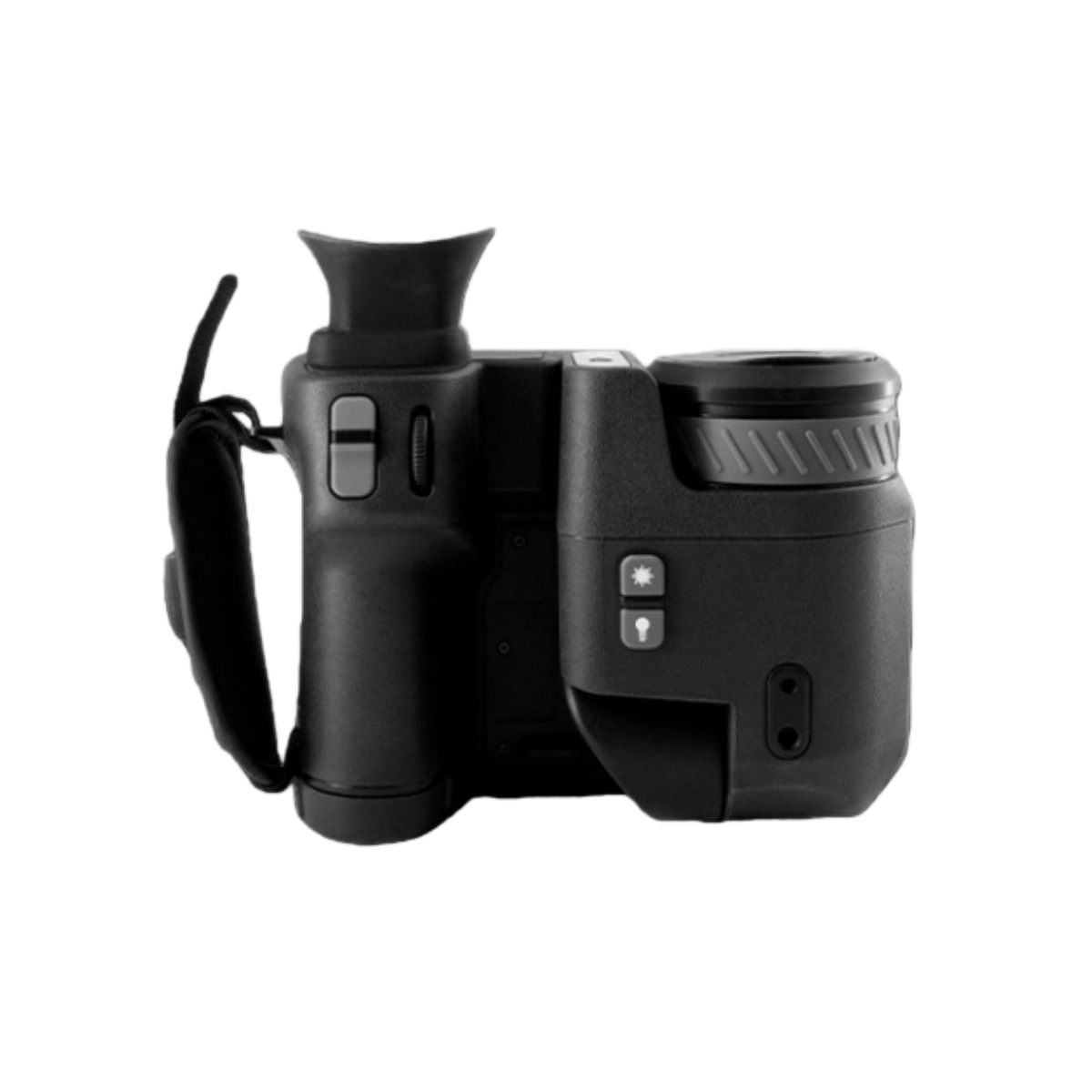

The ULIRVISION T50/T70 is a professional thermal imaging camera featuring aSi microthermal detector and laser-assisted focusing technology, with manual/auto integrated lens switching. It provides high-precision temperature measurement, multi-mode imaging, and radiometric video streaming, suitable for industrial inspection, security monitoring, power equipment inspection, building energy efficiency analysis, firefighting and rescue, industrial manufacturing, scientific research and ect.

Features:
1.High-Resolution Imaging: IR resolution up to 384×288 (T50) or 640×480 (T70) with 25mK sensitivity, capturing subtle temperature differences.
2.Intelligent Multi-Focusing: Laser-assisted focusing, continuous autofocus, and optional wide-angle/telephoto lenses for multi-angle observation.

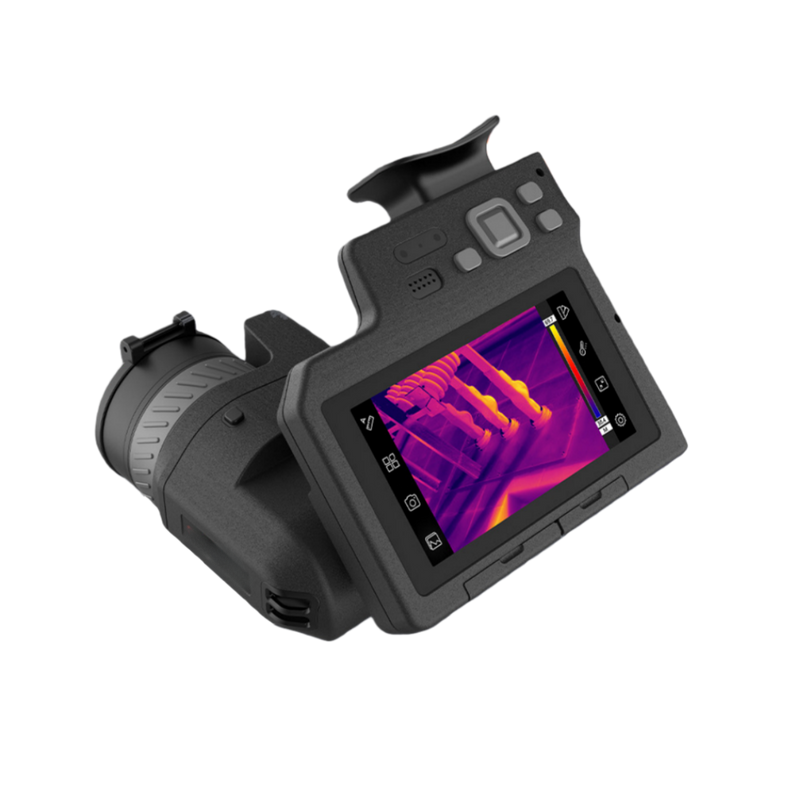

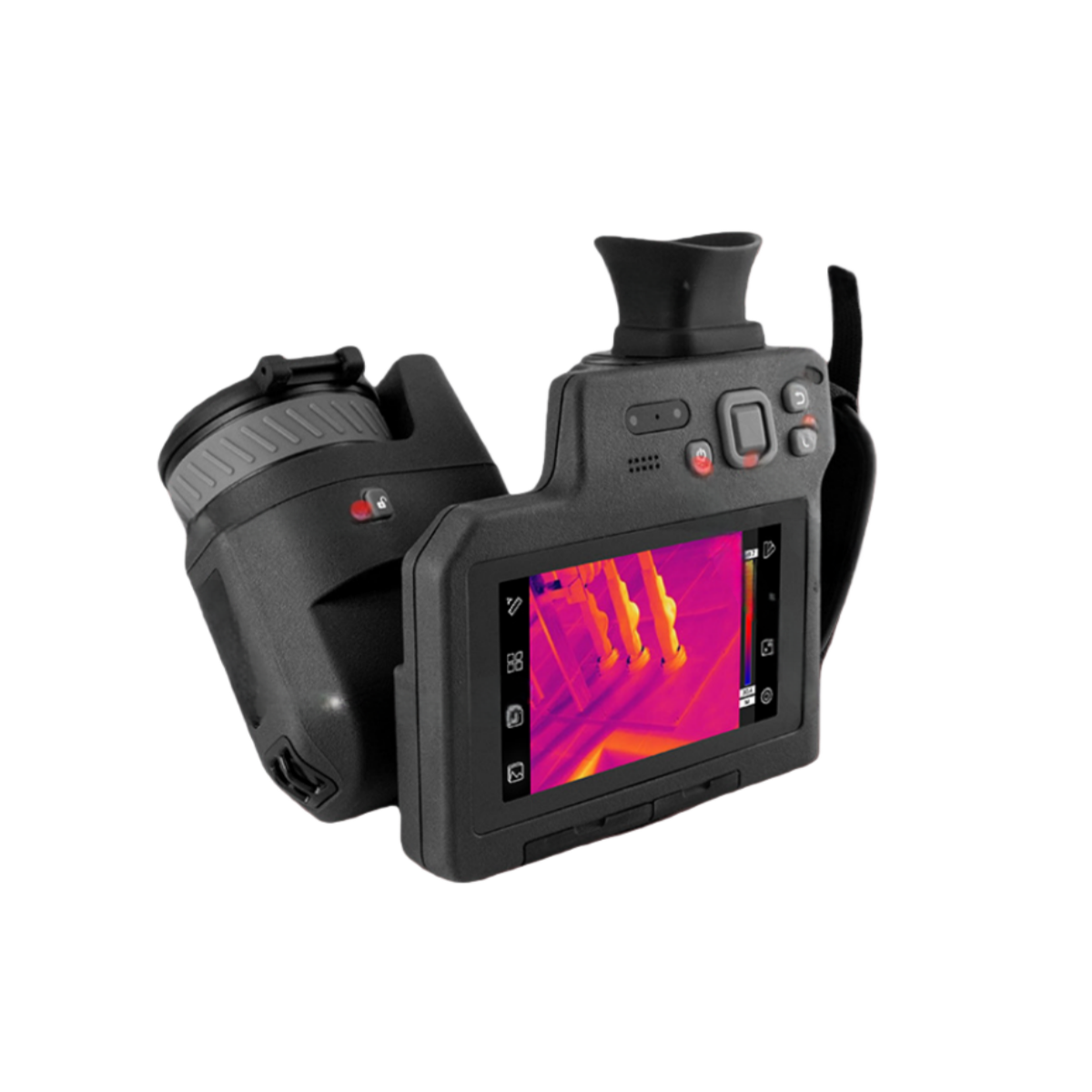

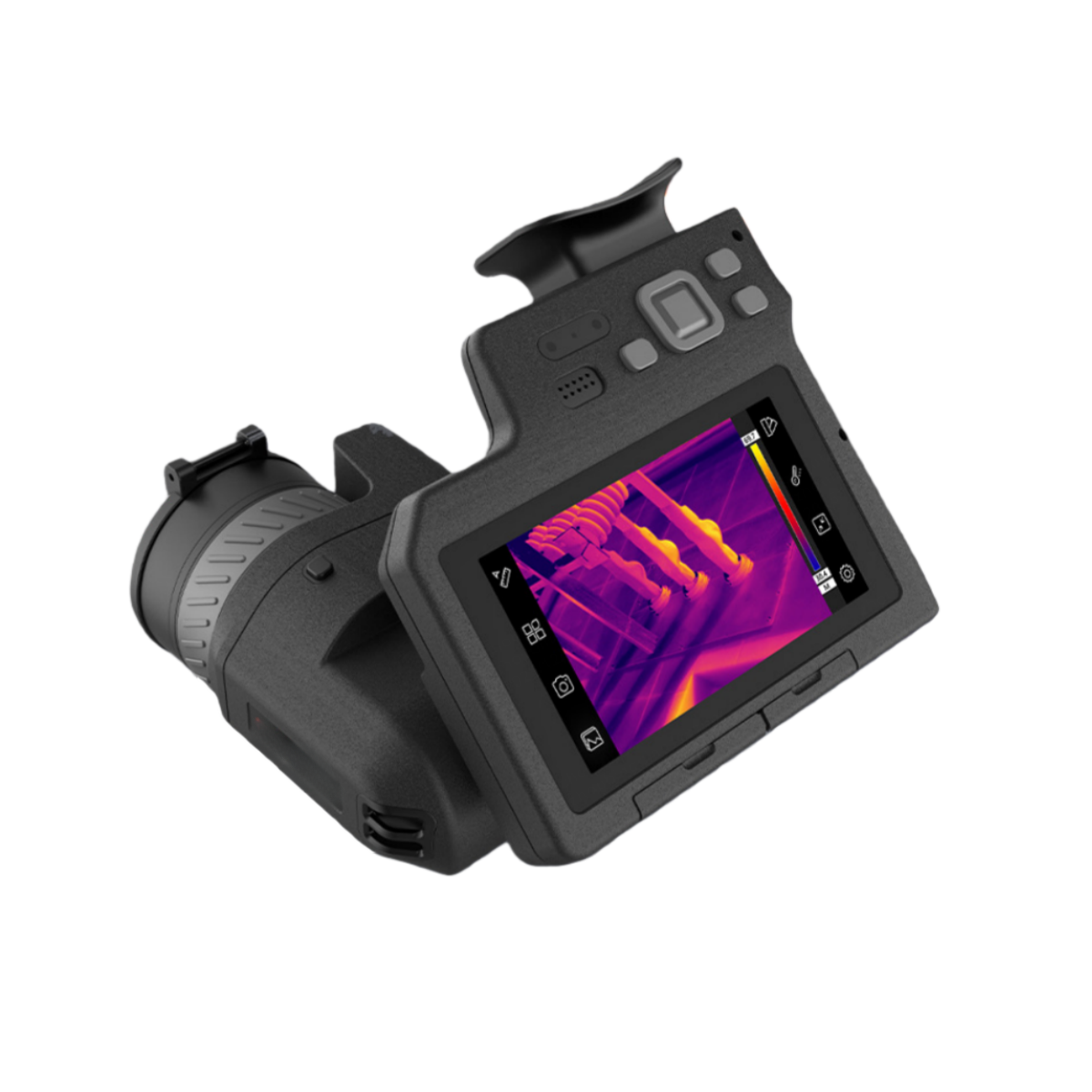

3.User-Friendly Interaction: 5-inch HD touchscreen with 180° rotatable lens, supporting IR, visible light, PIP, and other imaging modes.

Quantity:
Availability:





Inquire Add to Basket

Model:
T50T70

Precision Measurement: Temperature range -20℃~+600℃ (extendable to 1200℃) with ±1℃ or ±1% accuracy, supporting 20-point/20-line/10-rectangle/circle area measurements.
Multi-Function Integration: Radiometric video streaming and professional IR analysis software enable remote control and data export via WiFi/USB.
Portable & Durable: IP54 rating, weight ≤1.5kg, 4-hour battery life, operable in -20℃~+50℃ environments.
