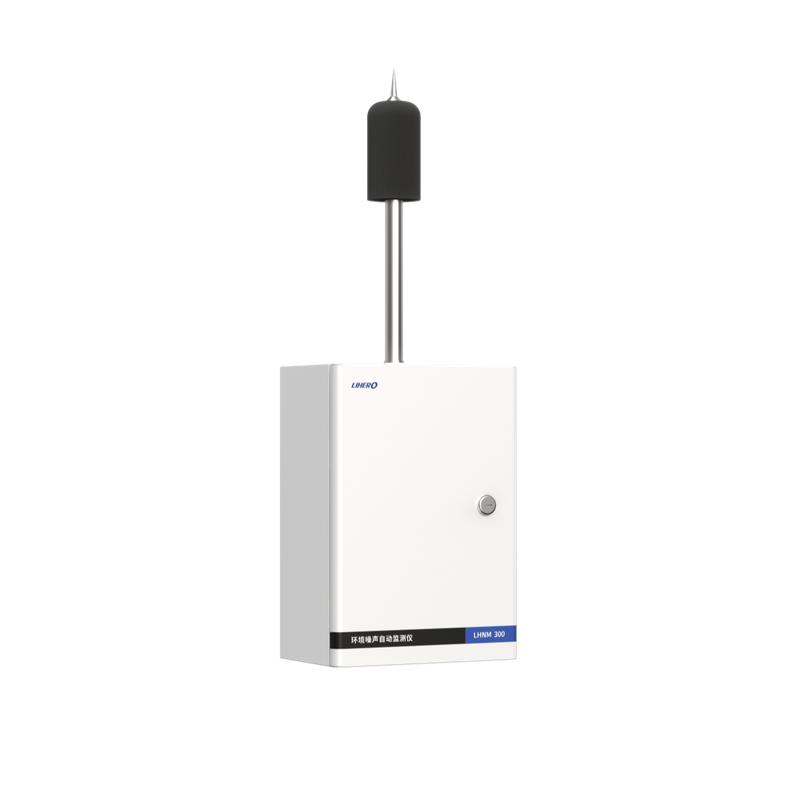

LHNM300
1. Standards-Compliant Precision Monitoring Capabilities
The LHNM300 strictly adheres to China's Technical Specifications for Automatic Monitoring of Ambient Noise in Functional Zones(HJ906-2017), equipped with a Type 1 precision microphone supporting A/C/Z frequency weighting and F/S time weighting. Measurement uncertainty is <0.5 dB. Its automatic calibration system performs zero-point calibration every 24 hours, combined with temperature compensation algorithms, ensuring stability within ±0.8 dB even in extreme environments from -30°C to 50°C, meeting national requirements for networked monitoring data comparison.
2. Intelligent Sound Source Identification and Event Tracing
An optional 12-microphone array sound source localization radar employs an improved Inception-CNN deep learning algorithm to automatically classify and identify 11 types of sound sources (e.g., wind, rain, horns, construction noise), with a localization accuracy of ±3°. The system automatically triggers recording for events (storage ≥60 days) and synchronizes with PTZ cameras to capture video evidence, providing a complete data chain for noise pollution enforcement.
3. Multi-Parameter Integration and Industrial-Grade Reliability
Featuring a modular design, it seamlessly integrates auxiliary units such as ultrasonic weather stations (wind speed/direction, temperature/humidity) and traffic flow counting cameras. The microphone is equipped with a specialized windscreen (wind noise reduction ≥30 dB) and dustproof net. The main chassis incorporates lightning protection design (10 kV surge protection), ensuring continuous stable operation in harsh conditions like sandstorms and heavy rain, with a mean time between failures (MTBF) ≥8,000 hours.
4. Cloud Platform and Mobile Terminal Collaborative Management
The LIHE Noise Supervision Platform enables centralized management of multiple stations, supporting in-depth analysis functions such as noise pollution calendars, compliance rate analysis, and population impact assessment. A mobile app provides real-time data viewing, remote parameter configuration, and maintenance work order processing. Integrated with GIS map visualization, it allows managers to grasp the dynamics of the regional sound environment anytime, anywhere.
