LSA
The advantage of the product

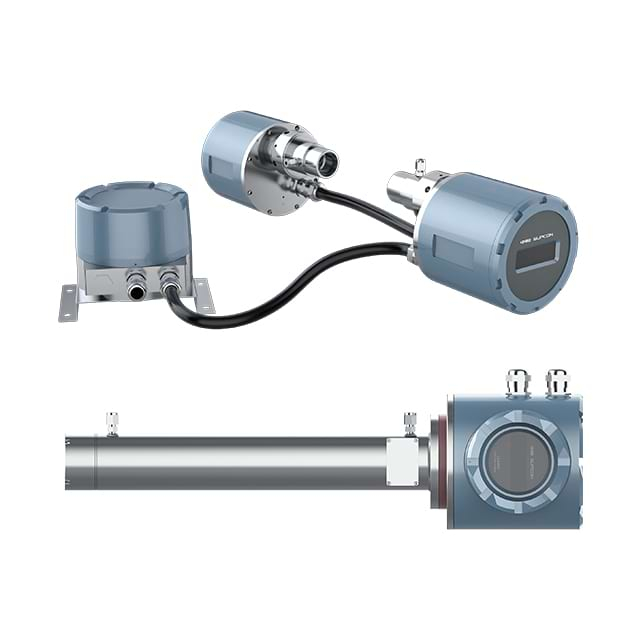

Laser gas analyzers (based on TDLAS technology)
Key characteristics:
The principle of action:
Technology of rebuilding laser absorption spectroscopy (TDLAS)
Measurement configurations:
In-Situ (in-Sita)
Bypass
One -sided (with a single/multiple reflection of the beam)
Measured components:
O₂, CO, Co₂, NH₃, Ch₄, H₂O, HCl, HF, etc.
Measurement range: from percentage to trace concentrations
Operational parameters:
High response speed
Precision accuracy of measurements
External interference resistance
Security certification:
Explosion -proof performance: ex Db OP IS IIC T6 GB
Dustygovelain protection: ex tb op is t80 ℃ ip66/67
Functional safety certificate: SIL2
Product operating manual
The principle of operation of the system:
Measurement process:
After feeding and opening the root valve, the semiconductor laser generates a ray of a certain frequency
The laser beam passes through the measuring chamber with the analyzed gas
The receiving sensor records a weakened beam
The signal is transmitted to the central analytical module
The module processes the data and calculates the concentration of gas
The results are displayed on the display and transmitted through standard interfaces
Flooding system:
To protect optical windows from pollution (dust, technological deposits)
Continuous purging by technical nitrogen through special inputs is used
A protective air curtain between windows and the technological environment is created
Technical features:
Fully automated measurement process
High accuracy due to digital signal processing
Reliable protection of optical components
Compliance with industrial operation requirements
