Tisomic

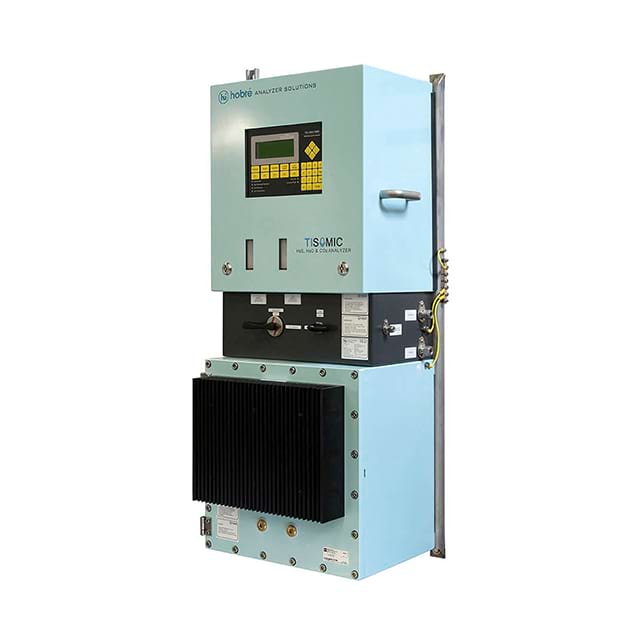

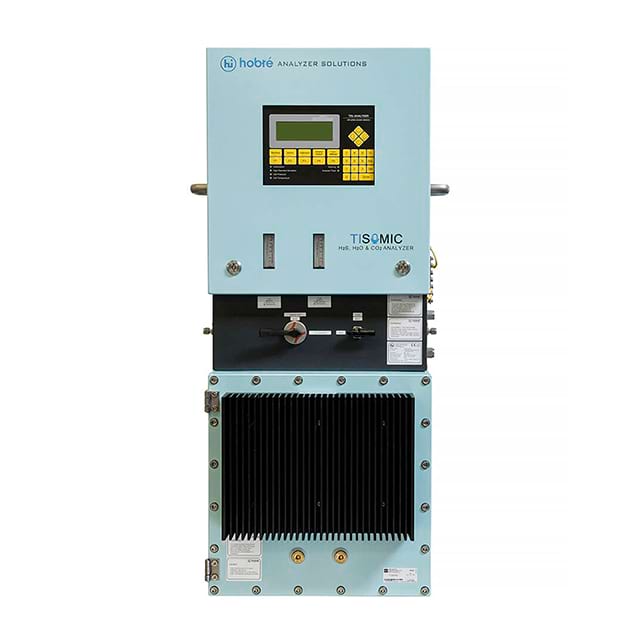

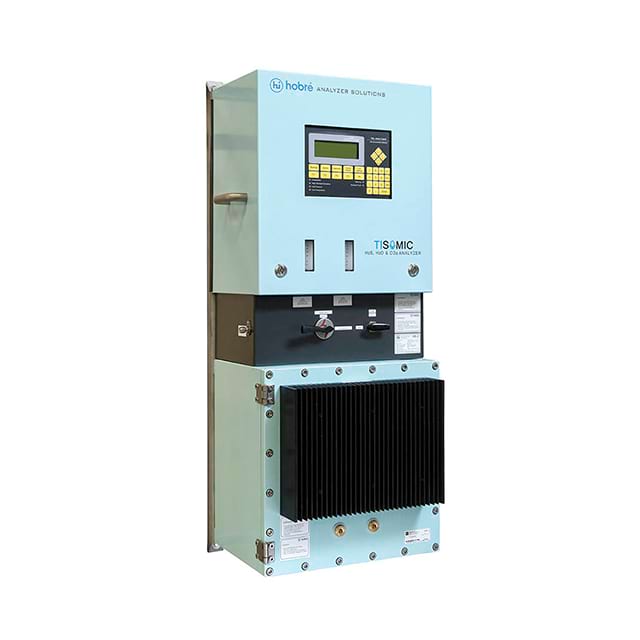

The Tisomic® ™ system is designed to measure the H2S, H2O, CO2 and CH4 content (with an optional integrated O2) in gas and liquid flows in the conditions of highly loaded oil and gas processes.
The advantage of the product
Minimum maintenance and low operating costs.
The system is equipped with a durable TDL light source and microphone detectors with an increased service life. The design does not have moving parts or components subject to wear.
The measuring cell maintains a temperature of up to 80 ° C (176 ° F), which avoids problems with the dew point.
Simple and reliable verification.
The possibility of calibration using one cylinder cylinder.
Automatic verification with a programmable interval and registration of results.
Key measurement features.
Fully independent measurement in two streams.
A multicomponent analysis (H2S, H2O, CO2, CH4, optionally - integrated O2 sensor).
A wide range of measurements: from PPM to percentage content.
Linear characteristics of measurements.
Product operating manual
The TISOMIC ™ analyzer can be installed in street thermoregulated cabinets to prevent condensate formation, with additional protection against direct sunlight using a canopy or 3-way visor, which significantly reduces maintenance requirements.
Key advantages:
Stable calibration coefficients - only a single calibration is required every 6 months.
The absence of moving parts and consumables is ready to work immediately after turning on.
Separate design: the measuring modules and the electronic units are completely independent, which allows maintenance under voltage without permission for fire work.
Flexible configuration: choosing a measuring cell at 50 ° C or 80 ° C, depending on technological requirements.
Video about the product
