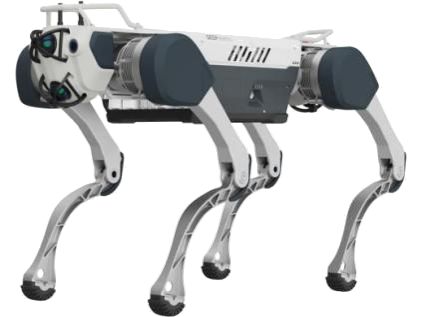

1. Inspection in Harsh Industrial Environments
Mines & Tunnels:
In a project with a Sichuan mining group, it performed 3D mapping of underground tunnels and structural safety monitoring, adapting to rocky, muddy terrains.
Petrochemical Plants:
Navigates explosion-proof zones (with explosion-proof modifications) to detect pipeline leaks and valve status, replacing human entry into high-risk areas.
2. Heavy Equipment Monitoring & Maintenance
High-Payload Operations:
With an 80kg max payload capacity, it carries industrial-grade inspection tools (e.g., thermal imagers, gas sensors) to perform:
Infrared temperature scans (±2°C accuracy)
Mechanical vibration analysis
Partial discharge detection
on large equipment like power transformers and boilers.
Continuous Operation:
4-hour runtime (under 20kg load) supports prolonged inspections, such as 24/7 monitoring of steel plant equipment.
3. Autonomous Navigation in Complex Terrains
Dynamic Obstacle Avoidance:
Uses LiDAR+IMU sensor fusion to achieve:
45° steep slope climbing
20cm vertical obstacle clearance
10km-range positioning (RTK optional)
4. Data-Driven Smart Maintenance
Edge Computing Integration:
Optional AI host enables real-time analysis of:
Abnormal sound spectra
OCR-based meter reading
Structural deformation trend prediction
5. Emergency Response in Extreme Environments
Post-Disaster Rescue:
In collapsed buildings or earthquake rubble, it:
Deploys life detectors to search for survivors
Transports 20kg medical kits
Polar Expeditions:
Conducts equipment inspections at -30°C in polar stations.
