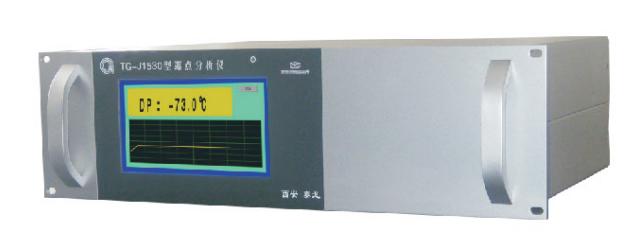

TG-J1530 Trace Moisture Analyzer

Measuring Range: -100.0℃~0℃ / -80.0℃~+20.0℃ (select range when ordering);

Maximum Permissible Error: ±1.5℃ (above -60℃);

±2.0℃ (below -60℃);

Repeatability: ±1.0℃;

Resolution: 0.1℃;

Warm-up Time: <5 min;

Sample Gas Flow Rate: (1.5~3.0) L/min;

Sample Gas Pressure: 0.05MPa ≤ Inlet Pressure ≤ 0.50MPa;

Analog Output: (4~20) mA standard signal;

Contact Output: Dual relay output 220VAC, 1A or 24VDC, 2A;

Power Supply: (220±22)VAC, (50±5)Hz;

Operating Environment:

Temperature: -15℃~+45℃;

Humidity: ≤90% RH;

Dimensions: 480mm (W) × 136mm (H) × 370mm (D);

Mounting Dimensions: 442mm (W) × 134mm (H);

Weight: Approx. 2.3Kg

1.Petrochemical & Natural Gas Industry

Natural gas dehydration monitoring: Detects trace moisture (ppm level) in pipeline natural gas and liquefied natural gas (LNG) to prevent hydrate blockage or pipeline corrosion.

Petrochemical product purity control: Moisture analysis in organic solvents such as ethylene, propylene, and benzene to avoid catalyst poisoning or side reactions.

2.Power Industry (Insulating Gas Monitoring)

SF₆ gas moisture detection: Monitors trace moisture in insulating gases for high-voltage switches and transformers to prevent equipment breakdown or aging.

Hydrogen cooling systems: Controls moisture in generator hydrogen cooling circuits to ensure operational safety.

3.Steel & Metallurgical Industry

Protective gas analysis: Monitors trace moisture in nitrogen and hydrogen used in annealing furnaces and continuous casting processes.

Metal powder drying: Prevents oxidation or molding defects caused by moisture.
