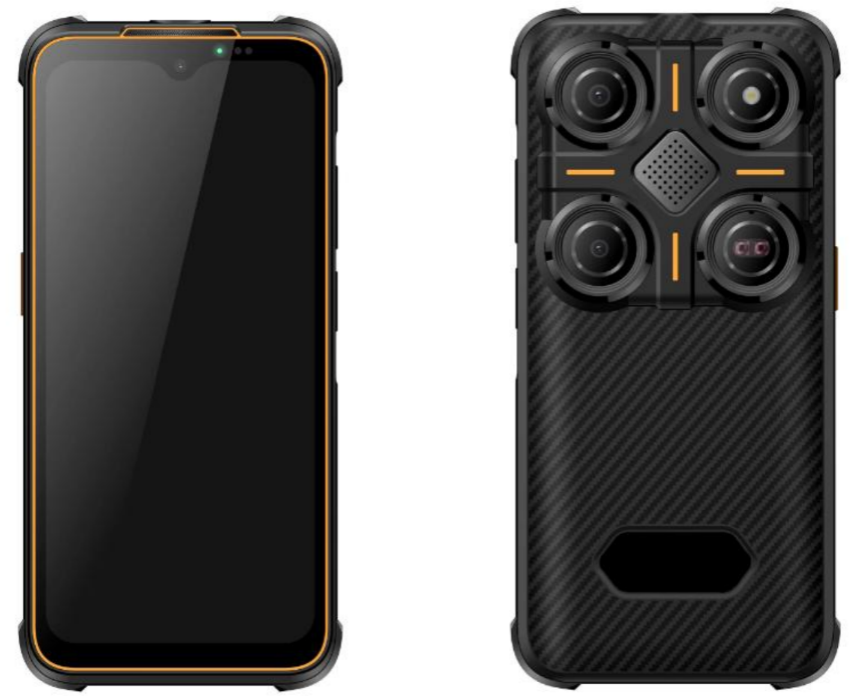

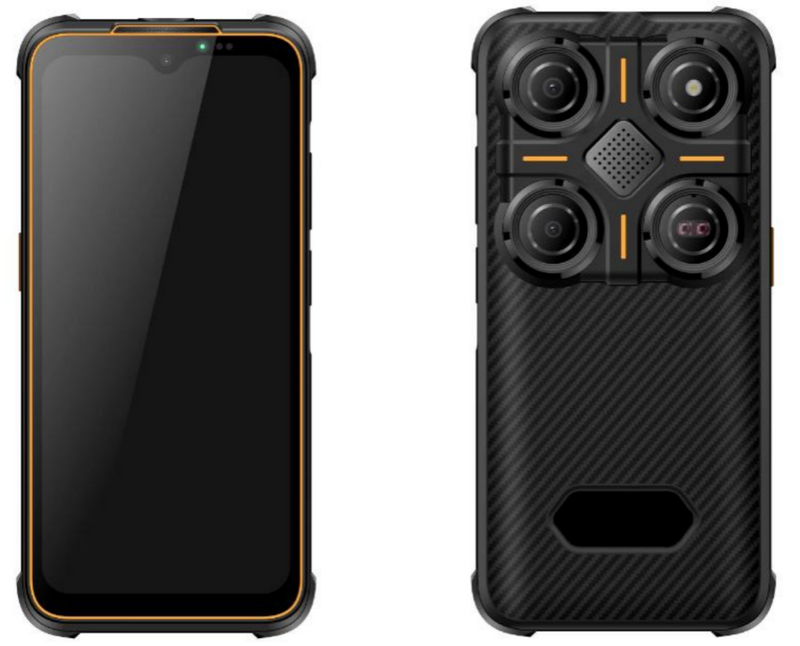

5G explosion-proof wireless terminal GTX-A19EX

Explosion -proof peripheral computing module, designed specifically for remote monitoring in high -risk media. Provides safe, instant and highly rental transmission of equipment data in explosive zones (class 1/2) through the integrated architecture of 5G + Aiot, replacing the traditional wired data collection scheme.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

1. Spark security and explosion -proof certification (key advantage):

The main advantage: the equipment has a special design and a strict explosion -proof certification (sparkling - ex IB IIC T4 GB) passed. This means that its circuitry, body material and power restrictions guarantee safe operation in Wednesdays with combustible gases of classes I, IIA, IIB, IIC, in pairs and mine methane. Even with an internal short circuit, sparking or overheating, ignition of the surrounding combustible gases or dust is excluded.

A wide area of ​​application: allows you to use in petrochemicals, gas industry, pharmaceuticals, gas storage facilities, oil storages, coal mines and objects with explosive dust (flour mills, powder metallurgy) - in all areas where explosion -proof devices are required.

2. High-speed and reliable 5G connection (performance):

High -speed data transmission: supports a double -mode 5G (SA/NSA), providing an order of magnitude greater throughput than 4G/LTE (theoretical peak speed speed: hundreds of Mbit/s - 1 Gbit/s+). Critically important for the transfer of video surveillance in HD, large files, equipment parameters in real time (sensors, vibration analysis) and remote control commands.

Super -short delay: low latency 5G (theoretically ≤1 ms) is especially important for tasks with a requirement of instant response: industrial automation, distance operations (robotics in dangerous media), automated systems.

Network redundancy and failure tolerance: supports two SIM cards (reservation/load balancing), increasing the reliability of the connection and preventing the loss of data during the failure of the SIM card or operator.


Processor (CPU): MediaTek Dimensity 900 MT6877, up to 2.4 GHz (8 nuclei), 6 nm

Operating system: Android 12

Display:

Size: 6.3 'FHD+

Type of matrix: IPS

Resolution: 1080 × 2340 pixels

Type of touch screen: Incell technology; cover glass with a thickness of 1.1 mm; Capacitive control with high sensitivity.


Neftekhimik, electric energy, mines, salvation from fire

Frequent questions
  • 1. What exactly does 'explosion protection ' of this device mean? In what scenarios are necessary to use it?
    Creed with Sketch.
    形状 Creed with Sketch.
    The essence of explosion protection: the device has a certificate of sparkling execution of EX IB IIC T4 GB. This means that its internal chains are specially designed so that the energy is limited by a safe threshold even with a short circuit, sparking or overheating, preventing the ignition of surrounding combustible gases (for example, methane, ethylene) or dust (coal, flour, etc.).
  • 2. What are the practical advantages of 5G over the traditional 4G in industrial scenarios?
    Creed with Sketch.
    形状 Creed with Sketch.
    Data transmission with high bandwidth: supports a double -mode 5G (SA/NSA), practical loading speeds reach 300 Mbps - 1 Gbit/s+. Provides smooth transmission of images from 4K industrial cameras, 3D scanning data, video monitoring video in real time, solving the problems of brakes when transmitting HD-video and slow transmission of large files characteristic of the 4G era.
  • 3. How do IP68 protection and a wide temperature range provide the reliability of the device?
    Creed with Sketch.
    形状 Creed with Sketch.
    • IP68 protection:
    • Dust protection: complete sealing prevents the penetration of abrasive dust (for example, metal) and corrosion dust on the board (often found in metallurgy, at cement plants).
