T10-A0C1-Q

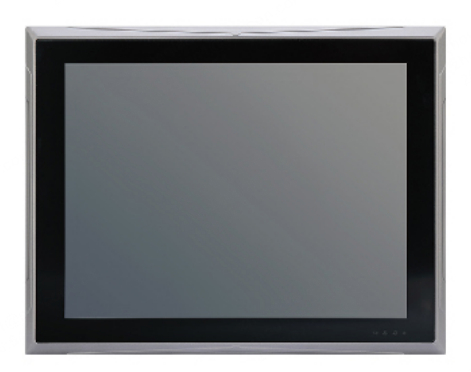

1.Full-Size Industrial Touch HMI – Always the Right Fit for You
The ReiS Series modular industrial panel PCs offer both square and widescreen product lines, featuring ultra-narrow bezels and aesthetic craftsmanship. From 7" to 21.5", users can select either industrial-grade flat resistive or capacitive touchscreens tailored to different application environments.
2.Modular Host Design – Saves You Time
Modularity embodies the ReiS Series’ user-centric and application-driven approach. Users can quickly combine various panels with Genie Series industrial computers to form modular PCs with multiple mainstream CPU platforms.
It supports Intel Core 13th/12th/11th/8th/7th/6th Gen i7/i5/i3 and Celeron low-power CPUs, as well as Intel Core 13th/12th/11th/8th/7th/6th Gen i7/i5/i3 desktop-level computing platforms. Identical panel dimensions and mounting specifications greatly simplify product selection.

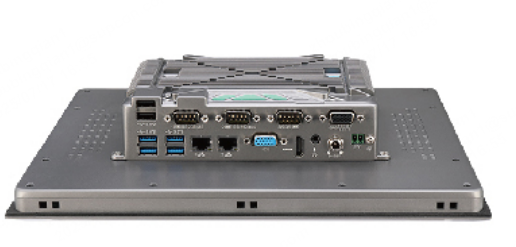

3.User-Friendly, Customizable Modular I/O Interfaces – Saves You Effort
The ReiS Series modular I/O design fully addresses the diverse, low-volume needs of the industrial market. Options include multiple Ethernet ports (2/4/7), serial ports (3/6/10 RS-232/485), USB ports (6/8/10), CAN bus, and DIO – streamlining engineer design and accelerating time-to-market.
4.Flexible, Upgradable Modular Applications – Saves You Money
ReiS industrial panel PCs consist of two detachable components: the touch panel and the host. When CPU performance no longer meets software demands or I/O interfaces fall short, simply upgrade the core CPU module or I/O expansion module – minimizing maintenance costs.
5.Localized Maintenance and Wireless Connectivity – Simplifies Support
The ReiS Series retains the Genie Series’ removable hard drive feature, enabling user-driven storage upgrades.In the IoT era, ReiS enables local edge computing and rapid wireless networking (4G/WiFi/Bluetooth), empowering industrial IoT applications.
6.UPS Backup Battery – Ensures Data Security
Optional UPS battery management prioritizes data preservation during unexpected power outages. A configurable 3-10 minute countdown auto-shutdown protects critical production data, hard drives, software, and the OS – enhancing device stability and real-time operation reliability.
