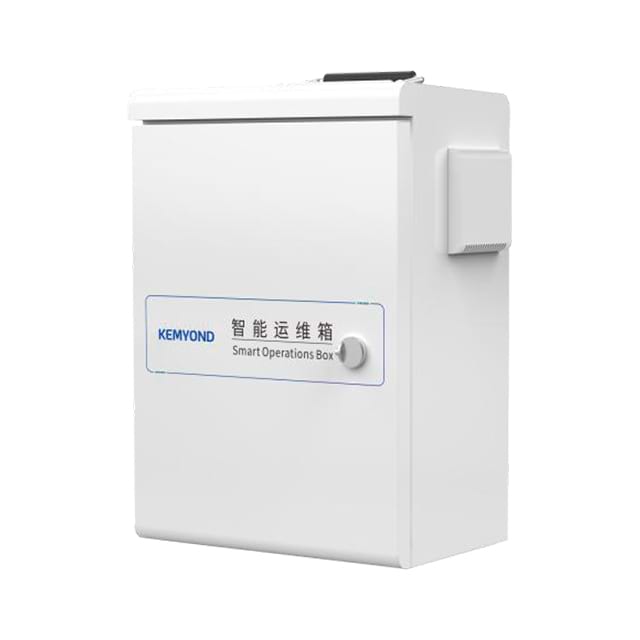

SDB2000-me
Constructive features
• Modular architecture:
✓ standardized components
✓ Flexible configuration
✓ Simple scaling
• Installation options:
• on outdoor lights
• Wall installation
• in standard 19 'racks
Operational advantages
• Complex monitoring:
✓ Power supply parameters
✓ network condition
✓ Working indicators of equipment
• Diagnostic functions:
• Automatic detection of faults
• Remote reloading of devices
• Analysis of trends
Areas of application:
• Energy systems
• Oil and gas enterprises
• Roads and high -speed tracks
• Railway infrastructure
• Smart cities
• CCTV systems
Technical parameters:
• degree of protection: IP65 (external execution)
• working temperature: -40 ° C ~ +75 ° C
• Input voltage: AC 220V ± 20%
• Dimensions: 600 × 500 × 200 mm
• Weight: ≤25 kg
Advantages:
✔ Reducing operating costs by 40%
✔ Increase in the time of trouble -free work
✔ Centralized control of distributed devices
✔ compliance with GOST R and IEC standards
SDB2000 -me is an innovative solution for the new generation intellectual infrastructure!
The advantage of the product
Technical characteristics of the intelligent operating cabinet SDB2000-me
1. Modular architecture
• Main components:
✓ Management module
✓ power distribution unit
✓ Systemic power source
✓ switching module
• Peculiarities:
• Flexible configuration
• simplicity of service
• hot replacement
2. Monitoring system
• controlled parameters:
✓ door condition
✓ The work of thunderclap
✓ smoke
✓ flooding
✓ Tilt
✓ temperature/humidity
• Measurement accuracy:
• Temperature: ± 0.5 ° C.
• Humidity: ± 3%
3. Functionality
• Supported interfaces:
✓ Squirrel ports (RS-232/485)
✓ discrete entrances/outputs
✓ network interfaces
• Power management:
• Support AC/DC (12V-220V)
• Monitoring of parameters (u, i, p)
• Remote management
4. Security and management
• Functions:
✓ Automatic detection of devices
✓ Local indication
✓ Photo -fixation when opening
✓ Explosion -proof execution (option)
• Protocols:
✓ Mqtt
✓ SNMP
✓ Modbus
Design features:
• Corps materials: galvanized steel/stainless steel AISI 304/316
• degree of protection: IP65 (standard), IP67 (option)
• Working temperature: -40 ° C ...+75 ° C
• Dimensions: 600 × 500 × 200 mm (standard)
Advantages:
✔ Complete localization (hardware and software)
✔ automatic module recognition
✔ Integration with IOT platforms
✔ Compliance GOST R 51321.5-2011
SDB2000 -me is a comprehensive solution for industrial automation!
Video about the product
Product operating manual
1. Management interface
• Check out the location of the elements on the front panel:
• LCD display with touch control
• Navigation buttons
• Indicator LEDs (work status)
• Connection ports (RJ45, USB, RS232)
• Use an intuitive graphic interface for:
• Synchronization settings
• Configuration of time sources
• Diagnostics of the system
2. System programming
Available configuration modes:
• Basic mode (master setting):
• Automatic configuration
• Template solutions for standard tasks
• Expert mode:
• manual input of parameters
• advanced synchronization algorithms
• Setting user scenarios
3. Monitoring of the condition
Color indication of work:
• Green: normal mode of operation
• Yellow: Warning (checking is required)
• Red: emergency state
• Blue: Settings/Updates mode
4. Integration opportunities
Supported protocols:
• PTP (IEEE 1588V2)
• NTP/SNTP (RFC 5905)
• IRIG-B (DC and AC)
• 1PPS/1PPM/PPH
• DCF77
Key advantages:
✓ Setting time is reduced by 60% due to an intuitive interface
✓ 100% compatibility with industrial standards (IEC 61850, GOST R 58940)
✓ Support for hot replacement of modules
✓ The possibility of remote control through the Web interface
✓ Update without stopping work
To activate additional functions, contact the service center by phone: +7 (xxx) XXX-XX-XX.
