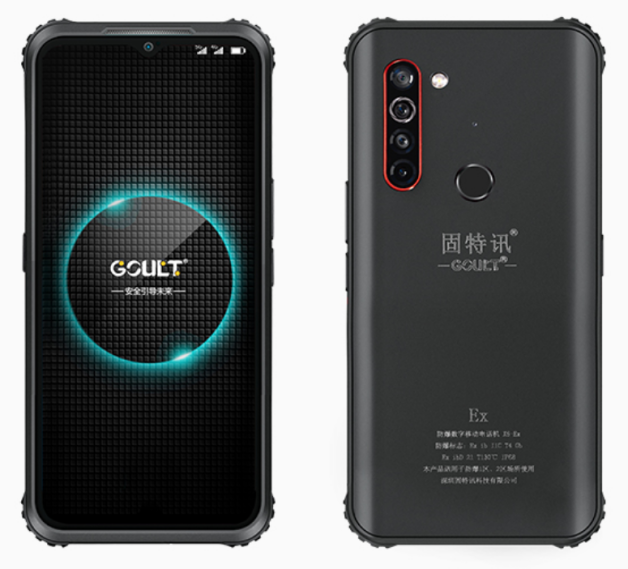

5G Explosion -proof digital mobile phone X5Ex

Explosion -proof digital mobile phone 5G GUTEXUN - this is a connection device for sparkling execution, designed to work in highly hazardous industrial conditions. Combining high -speed data transfer 5G and explosion protection certificate EX IB IC T4 GB (standard GB3836), it is designed for operation of 1/2 categories in explosive zones (petrochemistry, mining, energy).
Key characteristics:
Correspondence IP68 and tests for falling from a height of 1.5 m
Industrial case with extreme temperatures (-30 ℃ ~ +60 ℃)
Removable battery 10,000 mAh (up to 18 hours of continuous communication)
Integrated functions:
• multi -sensitive gas analysis with automatic notification
• accurate positioning UWB (± 0.5 m in the premises)
• AR Assistant for a remote collaboration
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • X5Ex

1. Global connection

Double -mode 5G (SA/NSA) with support for world frequencies

Load speed ≥1 Gb/s

Three -system positioning (GPS/BAIDOU/GLONASS)

Accurate tracking in difficult conditions


2. Security and efficiency

Sparkling scheme (GOST R IEC 60079-11)

Exclusion of the risk of ignition from spark

Emergency SOS + Group Communication PTT

The response rate is increased by 50%


3. Industrial reliability

Explosion -proof housing made of magnesium alloy

Suppression of the EM MOME (Correspondence EN 61000-6-2 (EU))

Direct integration with ASS TP: RS485/Modbus interface for data transfer

About the concentration of gases in real time


Processor: Tiger T750 (8 nuclei, 2.0 GHz, 6 nm)

OS: Android 13

Display:

Diagonal: 6.78 '

Resolution: 1080 × 2460 (FHD+)

Type: IPS

Touch technology: Incell

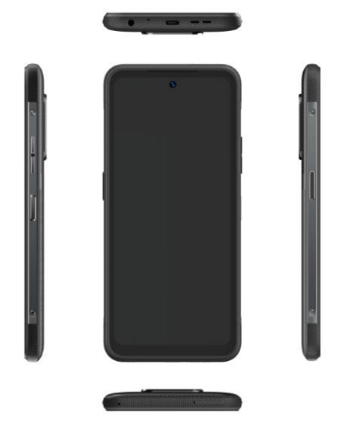

Frame:

Design: Monoblock

Dimensions: 147.95 × 81.49 × 11.42 mm

Color: Black

Weight: 263.4 g (with a battery)

Physical buttons:

PTT-group communication (single-circuit call)

Memory:

RAM/ROM: 8+256 GB

Microsd: support up to 512 GB

Cameras:

Main:

• 50 MP (basic)

• Additional:

Option 1: 20 MP (night vision)

• Option 2: 20 MP (acupressor)

Flash: Yes

Frontal: 16 MP

IR backlight: 2 elements


Neftekhimik, electric energy, mines, salvation from fire

Frequent questions
  • 1. Does the X5Ex explosion protection correspond to the CIS? What are the certificates?
    加 Created with Sketch.
    形状 Created with Sketch.
    Double certification:
    China: EX IB IIC T4 GB (GB3836-2010)
    CIS: Eas Ex Ib IIC T4 GB (TR TS 012/2011)
    Applicability: for combustible gases (methane, propane) and dusty environments (zones 1/2). It is prohibited with the concentration of hydrogen ≥0.1% (temperature limit T4).
  • 2. Does the mines work at -40 ℃?
    加 Created with Sketch.
    形状 Created with Sketch.
    Provided with three solutions: expanded temperature regime:
    Working range −40 ℃ ... + 60 ℃ (Li-accumulator for cold + heating scheme)
    Frost -resistant OCA -cover of the screen (sensitivity up to -35 ℃)
    GOST tests:
    Cold Starting at -40 ℃ (72 hours, GOST R 52931-2008)
    Recommendation: at ≤-30 ℃ activate the extreme mode (turn off 5G to save charge).
  • 3. How is emergency integration with gas analyzers implemented?
    加 Created with Sketch.
    形状 Created with Sketch.
    Three -level mechanism:
    Hardware connection:
    Through the explosion -proof RS485 (IP68, option), reaction delay <1 s
    Intellectual notification:
    If the MPC exceeds:
    • 120 dB siren + red stroboscopic flash
    • Sending location (GPS/UWB) and gas data on the remote control
    Cloud processing:
    Automation of the emergency plan (evacuation routes are configured in the application)
