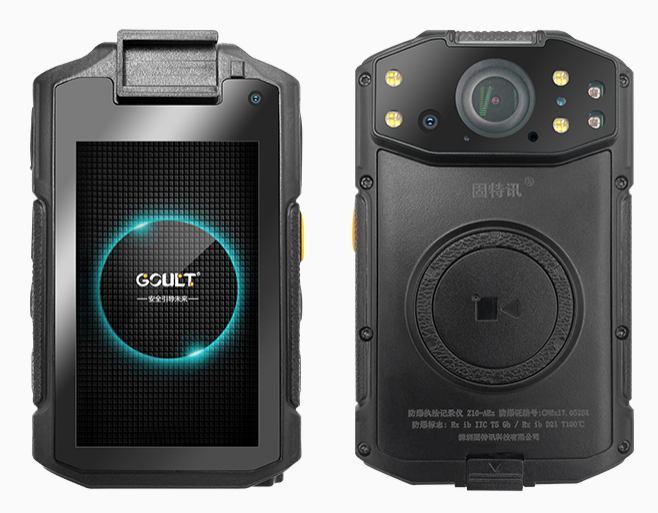

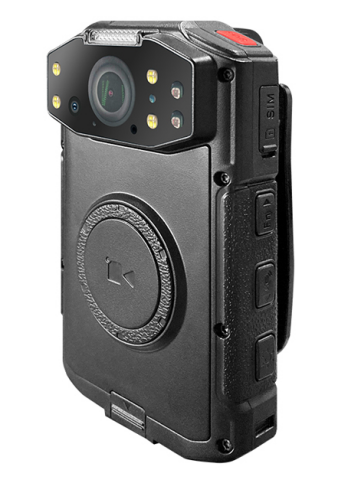

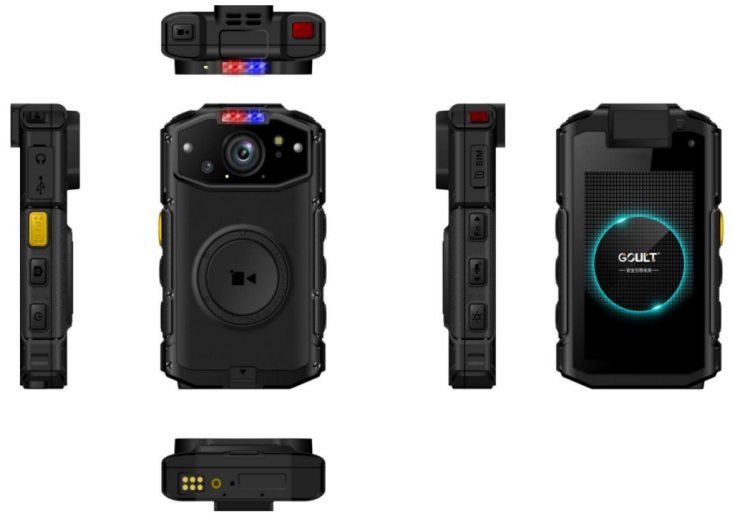

Explosion-proof portable registrar Z16-AEX (4 GB + 64 GB)

Explosion-proof DVR for special services Z16-AEX (4+64)
The industrial terminal for law enforcement agencies, certified according to the sparkling standard ex IB IIC T4 GB, corresponds to:
Chinese standard GB3836-2010
International standard IECEX
It is applicable in zones 1 and 2 explosive media (combustible gases/dust), eliminating the risk of ignition of traditional equipment in dangerous areas.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

1. CCTV system

Main camera: 16 MP Sony IMX415, Aperture F1.6, shooting in conditions of weak illumination at 60 frames/s.

IR backlight: 850 nm, facial recognition at a distance of up to 15 m in the dark (0.1 luxury).

Voice tags: automatic marking of key fragments during recording (e.g. 'Fixation of the leakage point'), accelerates the search for evidence by 50%.

Double navigation (Beidou/GPS): accuracy ± 2 m, tracking of movements in real time for Tsup.

NFC data collection: reading information (e.g. RFID tags of dangerous containers) by touching the device.

2. Hardware platform of industrial class

Quad-core CPU (2.0 GHz)+4 GB of RAM: parallel execution of tasks (recording+transmission according to 4G+Analysis).

Flash memory 64 GB EMMC: cyclic recording 1080r video 72 hours (full covering of three-shift work).

Explosion -proof battery 4800 mAh: continuous shooting ≥8 hours.

Magnetic charging MAGSAFE-type: full charge in 2 hours, work during charging.


TsPU: MediaTek Helio G85.8 nuclei, 2.0 GHz

OS: Android 11

Display:

Diagonal: 3.1 '(78.74 mm)*

Resolution: 480 × 800 PX

Type: Monoblock (classic shape)

Dimensions (without fastening): 102.7 × 62.4 × 17.8 mm

Physical keys:

PTT-based radio communications in general access networks

Activation buttons: video recording/audio, photography, emergency backlight

Weight: ≈ 176.3 g

Color: black


Petrochemical, gas energy, mines

Frequent questions
  • 1. Does the certification of EX IB protect from the hydrogen explosion when checks on the STS?
    Creed with Sketch.
    形状 Creed with Sketch.
    Two -level protection:
    - Energy restriction: maximum circuit of the chain <0.3 MJ (minimum hydrogen ignition energy: 0.019 MJ), physical exclusion of sparking.
    - Antistatic case: Peek carbon fiber (surface resistance <1 GOM), eliminating the risk of ignition from statics.
  • 2. How to prevent falsification of video recording?
    Creed with Sketch.
    形状 Creed with Sketch.
    Three -level protection of evidence:
    - hardware block: physical switch of protection against recording (blocks deletion/rewriting).
    -Blockchain-reward: Auto-Apload in the blockchain platform of law enforcement agencies with the generation of the Sha-256 hash.
    - Time synchronization: built -in atomic BEIDOU timer (error <0.1 seconds according to the standard GA/T 947 of the Russian Federation ≤2 sec).
  • 3. Does -30 ° C work with an 8 -hour recording?
    Creed with Sketch.
    形状 Creed with Sketch.
    Cold climate technology:
    -Battery: the anode from SI -C (retains 82% of the capacity at -30 ° C vs <50% in ordinary).
    -thermoregulation: Automol of the PTC heater of the matrix/lens.
    -Field tests: continuous recording 8h 23min (1080p, 30fps) at Dacin deposits (temperature: -28 ° C).
