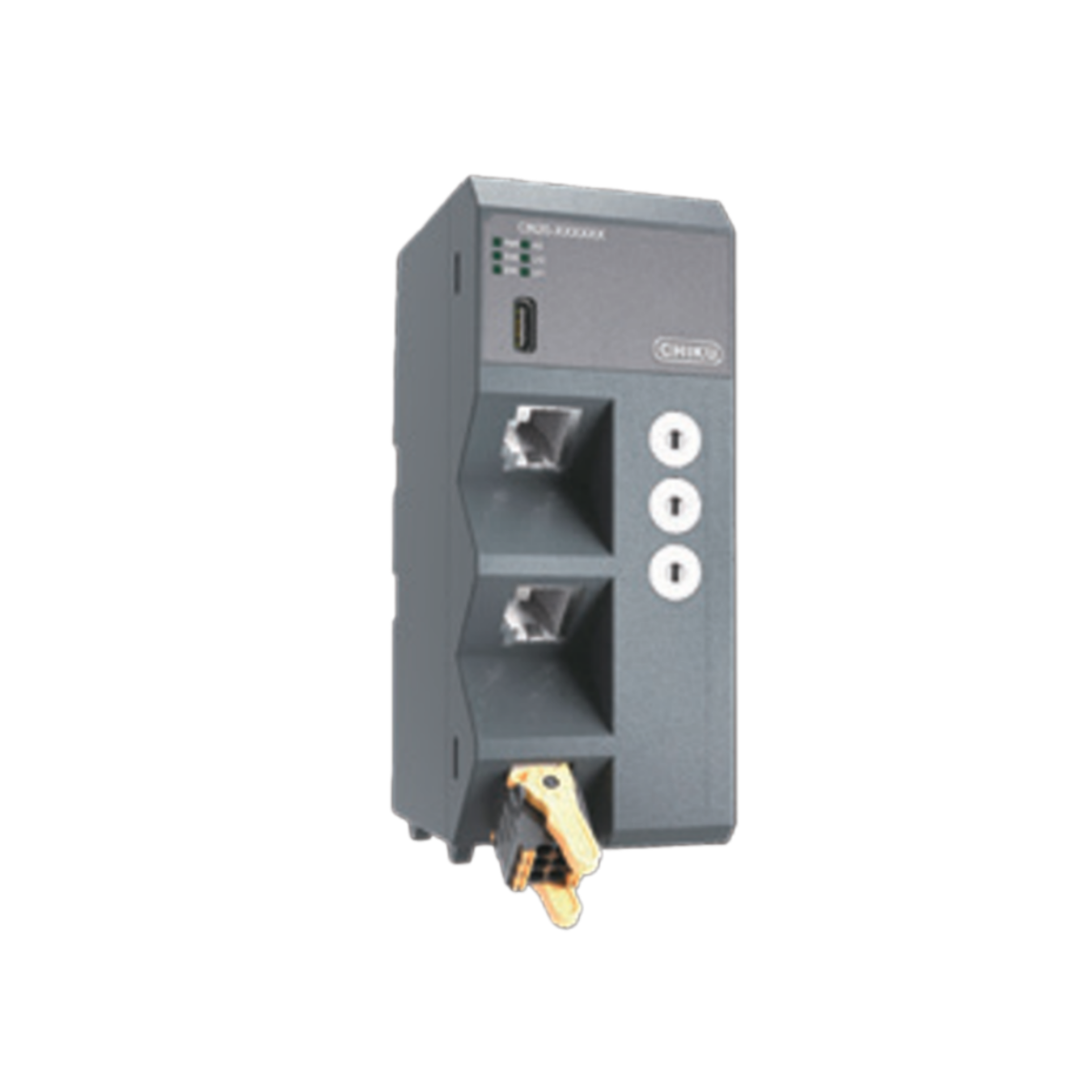

EtherCAT Coupler

The CN20 series EtherCAT Coupler is the core component of remote I/O modules for industrial automation systems, supporting high-speed, real-time EtherCAT communication protocol and flexible expansion with various digital, analog, and temperature modules.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • CN20-EC001

  1. It is compatible with major PLC brands (e.g., Siemens, Beckhoff, Omron).

  2. High real-time performance and synchronization capabilities.

  3. Modular design for easy expansion and maintenance.

  4. It complies with international industrial communication standards.

  1. Communication Protocol: EtherCAT

  2. Supported Modules: Digital I/O, Analog I/O, Temperature Acquisition

  3. Supply Voltage: 24V DC (typical)

  4. Operating Temperature: -10°C to 60°C

  5. Protection Rating: IP20

  1. Industrial automation control systems

  2. Machinery equipment manufacturing

  3. Robotics integration and motion control

Frequent Questions
  • 1. Can these couplers mix modules of different protocols?​​
    加 Created with Sketch.
    形状 Created with Sketch.
    No. Each coupler only supports its corresponding protocol (EtherCAT, PROFINET, or EtherNet/IP), and expansion modules must be compatible with the CN20 series.
  • 2. Is hot-swapping supported?​​
    加 Created with Sketch.
    形状 Created with Sketch.
    Yes, the CN20 series couplers and expansion modules support hot-swapping for easy maintenance and expansion.
  • 3. How to configure these couplers for PLC communication?​​
    加 Created with Sketch.
    形状 Created with Sketch.
    Typically, the device description files (e.g., ESI, GSDML, EDS) need to be imported into the PLC configuration software, followed by network setup.
